old rusty pickup

From 1996 Ford F-150 “Red”, documented by 67galax.

60 photos
← Back to this vehicle

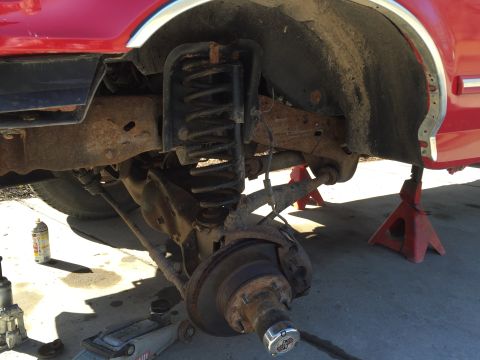

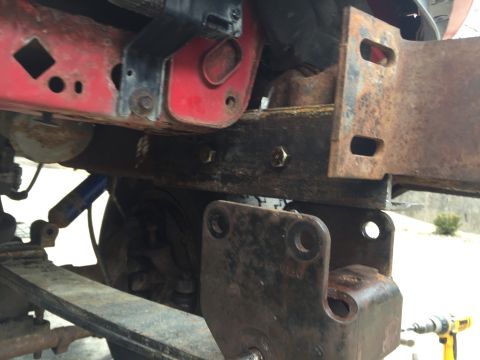

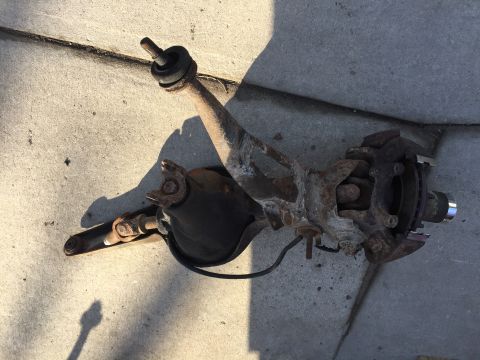

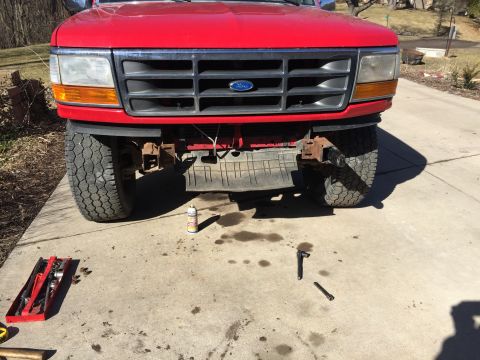

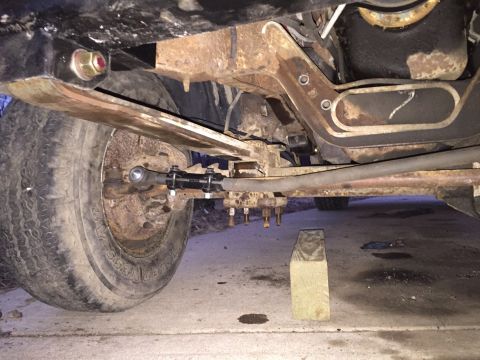

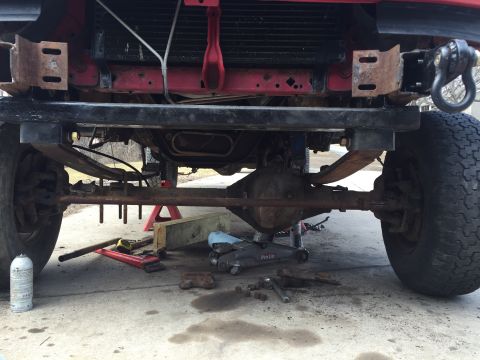

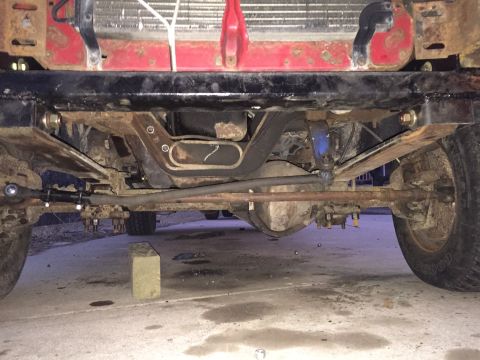

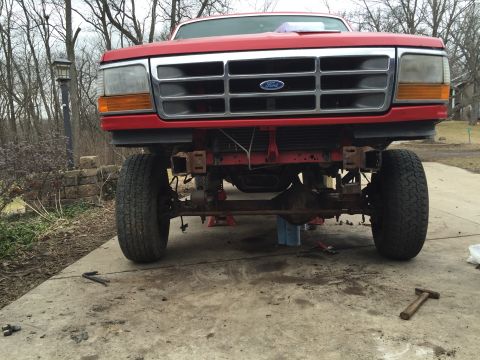

1996 Ford F-150 - A red 1996 Ford F-150 pickup truck is parked on a street in front of a gas station. 1996 Ford F-150 - Rusty pickup next to the bronco 1996 Ford F-150 - Rusty pickup as I was replacing the rusted out coil/shock tower. 1996 Ford F-150 - Front view of a red 1996 Ford F-150 pickup truck, showing the grille and headlights. 1996 Ford F-150 - testing the fit of stock 79 supercab leaf bracket on the 96 frame 1996 Ford F-150 - oiling the hell out of the new rear spring hanger 1996 Ford F-150 - axle bolted in with old 79 bronco tie rod and 93 F350 drag link, installed backwards to clear spring 1996 Ford F-150 - rear rusty spring hangers removed. 1996 Ford F-150 - drilling out the old bushing that was rusted in place 1996 Ford F-150 - Close-up view of the undercarriage of a truck, highlighting its mechanical components. 1996 Ford F-150 - old rusty leaves that 'inspired' the SAS. the one on the bottom shows two leaves broken near the center. 1996 Ford F-150 - Front suspension work on a 1996 Ford F-150, showing the coil spring and brake components. 1996 Ford F-150 - passenger side TTB. You can't really see it, but this is the side with the broken RA bushing stud. Also, I was unable to remove the large b… 1996 Ford F-150 - A disassembled front suspension component lies on a concrete surface, showing signs of rust and wear. 1996 Ford F-150 - I was able to get both sections of the old TTB into the bed of the truck, alone, by sheer determination and the help of a hi-lift jack. 1996 Ford F-150 - 79 supercab dana 44 leaf springs. 1996 Ford F-150 - Close-up view of heavily rusted truck frame and suspension components, showing leaf springs and shock absorber. 1996 Ford F-150 - I think it was 3x5 angle. Set in against the crumple zone, clamped in, ready to drill the holes all the way through frame and angle, to bol… 1996 Ford F-150 - crossmember with both frame support angles welded on. 1996 Ford F-150 - Close-up view of a welded metal frame section, showing weld details and material texture. 1996 Ford F-150 - This image shows a close-up view of welded metal components, indicating repair or fabrication work. 1996 Ford F-150 - marking location of 4x4 tubes that will become the front spring mounting locations 1996 Ford F-150 - A white metal frame with welded steel legs sits on a concrete surface, exhibiting signs of rust and wear. 1996 Ford F-150 - A close-up view of a rusty metal beam with visible cut marks and evidence of recent welding. 1996 Ford F-150 - A custom trailer hitch assembly lies on concrete, surrounded by tools and metal scraps, suggesting a DIY project. 1996 Ford F-150 - A close-up view of a heavily rusted metal frame component, showing signs of wear and repair. 1996 Ford F-150 - A close-up view of a trailer hitch receiver assembly, showing welded metal components and rust. 1996 Ford F-150 - Close-up of a rusted metal bracket and bolt assembly on a concrete surface. 1996 Ford F-150 - A close-up view of a welded metal bracket, showing signs of rust and wear. 1996 Ford F-150 - crossmember getting a coat of paint. 1996 Ford F-150 - showing what I thought was enough clearance for my spring. 1996 Ford F-150 - A black trailer hitch receiver is shown mounted on wooden blocks outdoors. 1996 Ford F-150 - close up showing that the spring didn't fit into the opening I left. I ended up cutting more out where the second leaf wraps around the bus… 1996 Ford F-150 - Painted crossmember, springs installed, under the truck 1996 Ford F-150 - another view of the crossmember and springs under the truck. Notice no rear shackle mounts yet. truck supported by jackstands. 1996 Ford F-150 - truck on its own weight 1996 Ford F-150 - gear housing to engine crossmember interference. 1996 Ford F-150 - heavy wall, maybe 5/16" 1.5x3 tube that I notched to match the frame bend. after I had these clamped in place on the frame, I eyeballed the… 1996 Ford F-150 - F250 shock/spring plate from 90s junkyard vehicle. 79 supercab springs and ubolts 1996 Ford F-150 - rear shackle angle 1996 Ford F-150 - 90s F350 drag link attached to 79 bronco center link. TRE hole where drag and center meet is at an up angle so it throws off the drag link… 1996 Ford F-150 - Close-up of the rusty undercarriage and suspension system of a truck, with a wooden block supporting the frame. 1996 Ford F-150 - Front view of a red Ford pickup truck, lifted and appearing to be under repair, with its grille and headlights clearly visible. 1996 Ford F-150 - Front end of a red pickup truck undergoing repairs, showing a rusty frame and suspension components. 1996 Ford F-150 - The front axle and suspension components of a red 1996 Ford F-150 are visible, with tools and jacks suggesting repair work. 1996 Ford F-150 - leaf to pitman arm contact with stock 96 pitman arm 1996 Ford F-150 - horrible flex while perched on a log 1996 Ford F-150 - more flex, plus view of chopped engine crossmember for axle clearance. 1996 Ford F-150 - Rusty truck suspension parts are visible in this close-up view. 1996 Ford F-150 - The rear leaf springs and axle housing of a heavily rusted pickup truck are visible from below. 1996 Ford F-150 - Underside view of a 1996 Ford F-150, showing the rear axle and suspension components. 1996 Ford F-150 - The front axle and suspension of a 1996 Ford F-150 are visible from this underside perspective. 1996 Ford F-150 - the time I got stuck, two wheels off the road, leaning down a major slope 1996 Ford F-150 - This heavily corroded suspension component shows significant wear and tear. 1996 Ford F-150 - This red 1995 Ford F-150 pickup truck shows significant rust and body damage on its rear fender and rocker panel. 1996 Ford F-150 - Red 1996 Ford F-150 pickup truck with a crew cab and long bed sits in a grassy yard. 1996 Ford F-150 - The rear suspension and undercarriage of a 1996 Ford F-150 are visible, with an Iowa license plate mounted on the bumper. 1996 Ford F-150 - The underside of a truck shows its suspension system, including leaf springs and a shock absorber, with visible rust on the frame. 1996 Ford F-150 - rubber bushing removed by cutting out with hole saw 1996 Ford F-150 - A close-up view of a corroded metal part, likely from a vehicle's suspension system.
