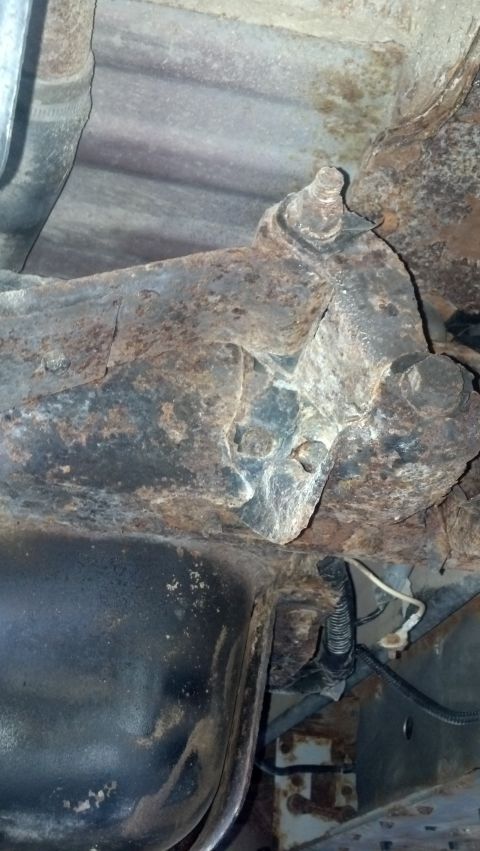

Driver side rear leaf spring bracket. It's completely broken in half.

174 hits | 69.13 KB | Posted: 8/7/15

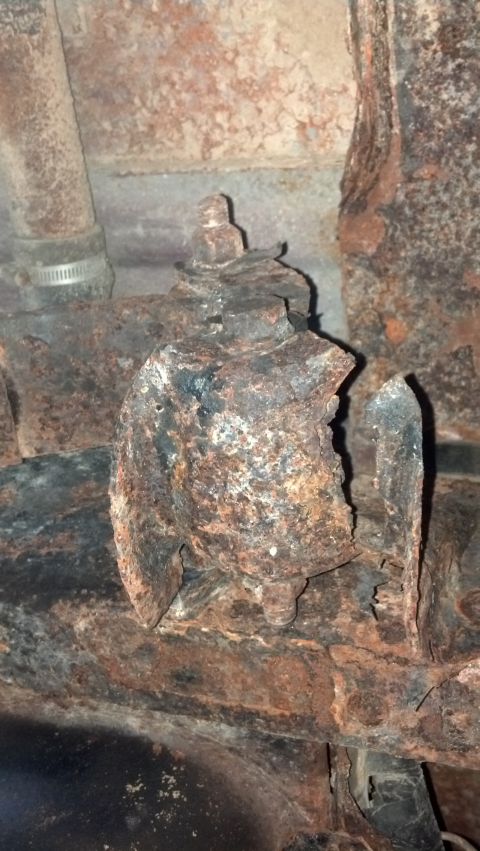

Not much left.

225 hits | 66.63 KB | Posted: 8/7/15

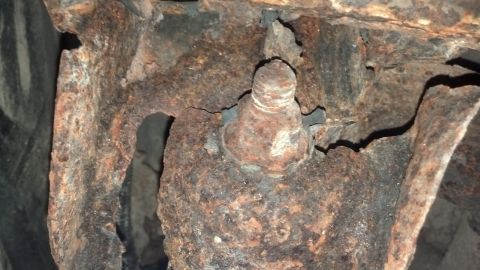

Completely broken. The top is just resting on the bottom portion.

130 hits | 55.72 KB | Posted: 8/8/15

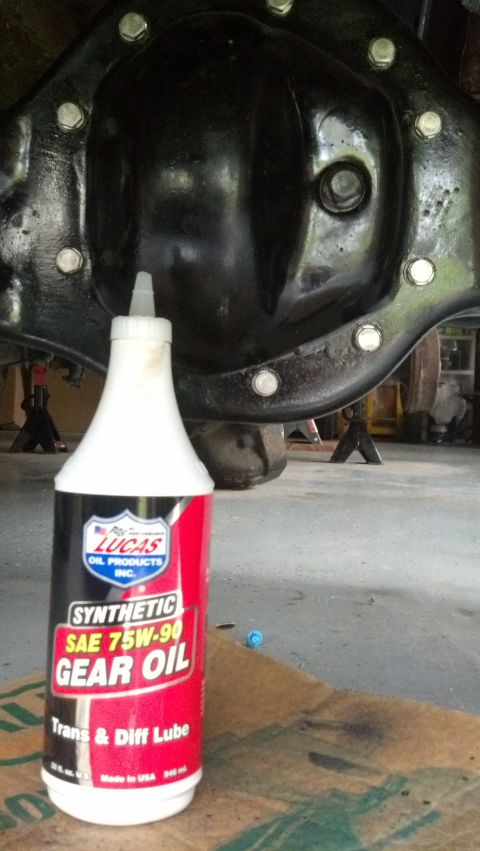

Elixor of Life

173 hits | 64.19 KB | Posted: 8/8/15

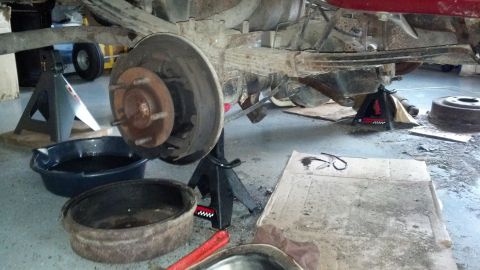

Got the drums off and drained the rear end.

131 hits | 41.9 KB | Posted: 8/8/15

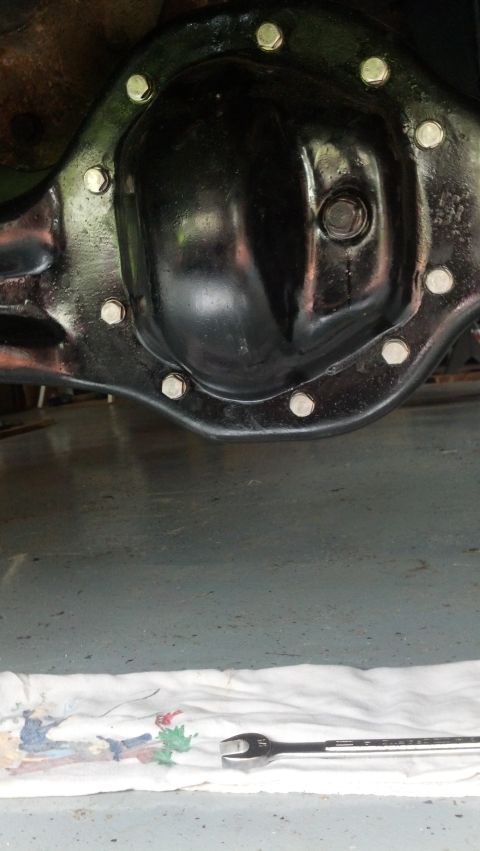

Hope it doesn't leak...

It didn't

178 hits | 57.2 KB | Posted: 8/8/15

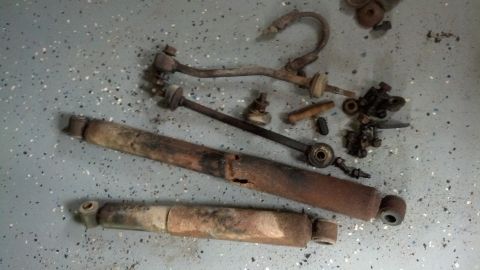

Junk...
Notice the muffler clamp; the whole "clamp" portion was rusted away.

140 hits | 68.84 KB | Posted: 8/8/15

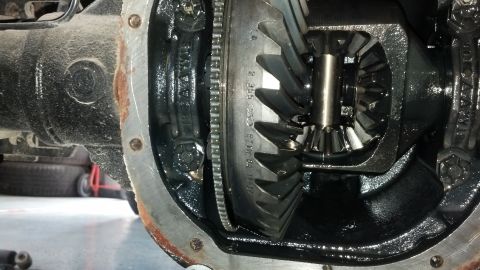

Look close and you'll see 355 just before the FORD script logo.

164 hits | 35.86 KB | Posted: 8/8/15

169 hits | 64.51 KB | Posted: 8/8/15

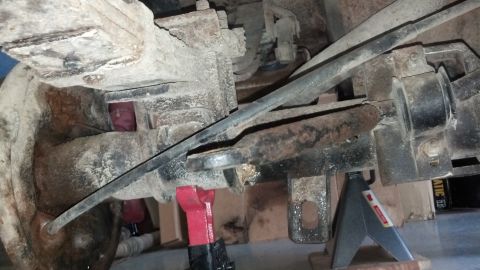

Shock and sway bar link rod removed - both sides.

172 hits | 66.48 KB | Posted: 8/8/15

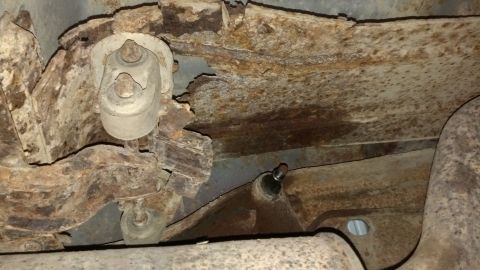

Muffler bracket is completely rusted away.

166 hits | 60.73 KB | Posted: 8/8/15

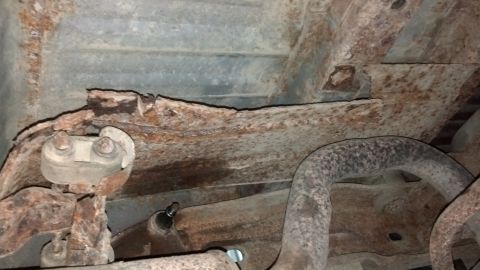

The heat shield above the muffler was only hanging on by the rust. I barely pulled on it and it bro...

161 hits | 56.23 KB | Posted: 8/8/15

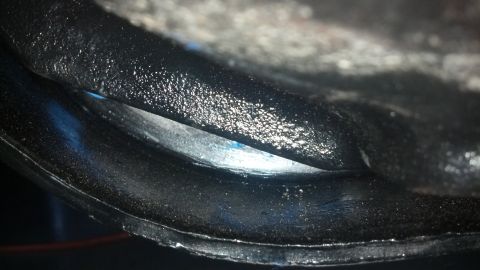

No leaks

159 hits | 52.74 KB | Posted: 8/8/15

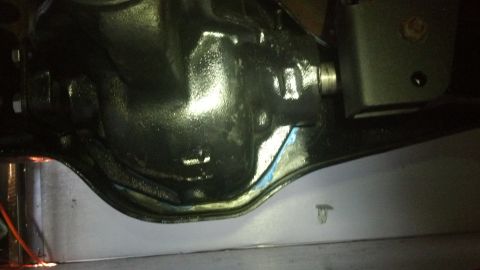

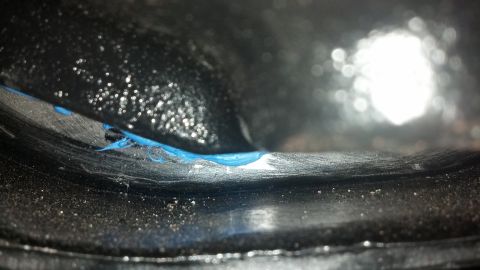

Looking good; still no leaks.

148 hits | 37.9 KB | Posted: 8/8/15

143 hits | 55.04 KB | Posted: 10/26/15

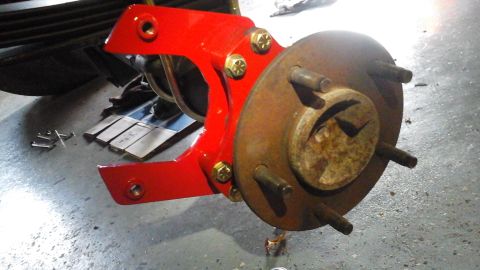

Rear caliper bracket adjusted, in place and ready for a caliper (and a little touch up paint - I use...

157 hits | 47.86 KB | Posted: 10/26/15

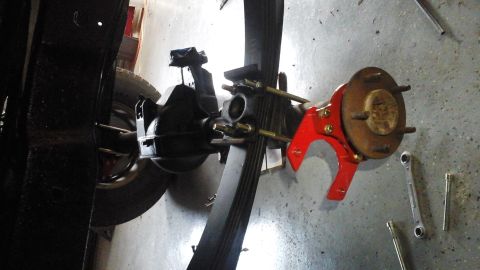

Weird angle, but you can see I'm making progress.

137 hits | 49.23 KB | Posted: 10/26/15

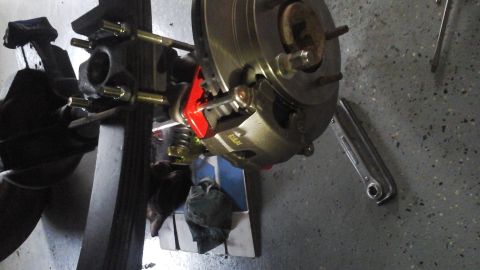

Caliper installed; 80 El Dorado w/ parking brake.
If you go this route be sure to always set your pa...

87 hits | 45.86 KB | Posted: 11/8/15

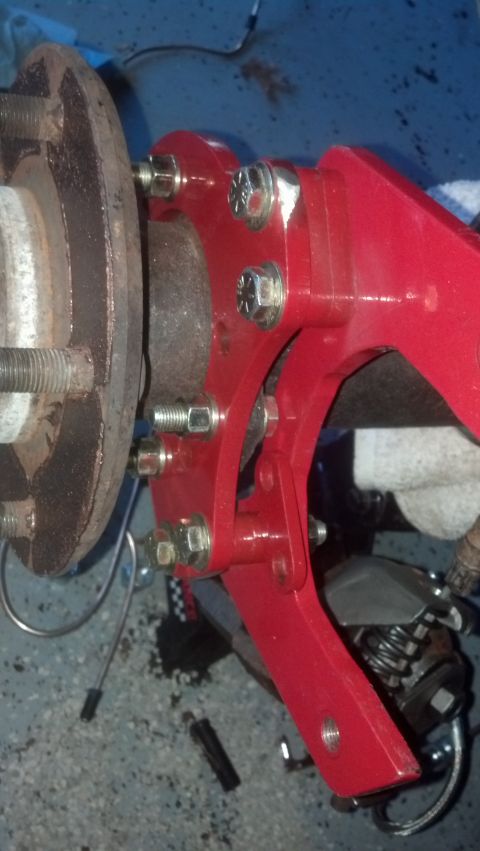

OK, the caliper brackets weren't quite right. Here I have flipped the big U-shaped bracket around s...

100 hits | 36.94 KB | Posted: 11/8/15

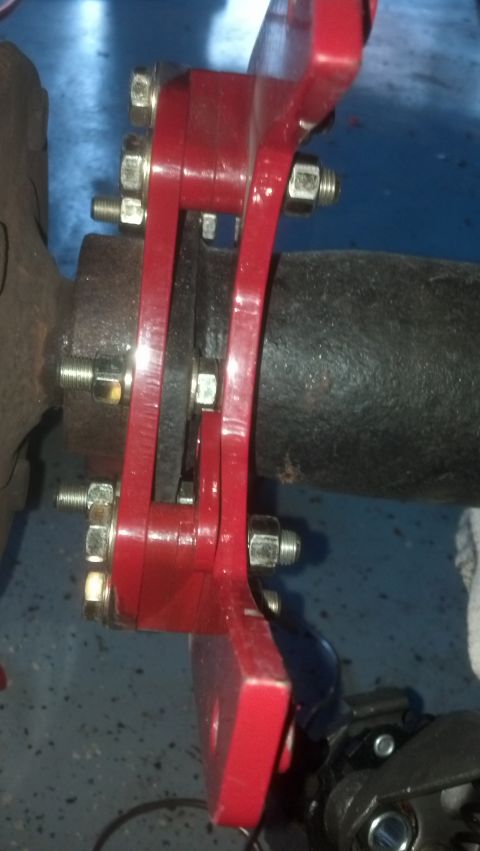

The caliper now just barely clears the mounting bolt. The mounting boss is now visible on the inboa...

91 hits | 32.61 KB | Posted: 11/8/15

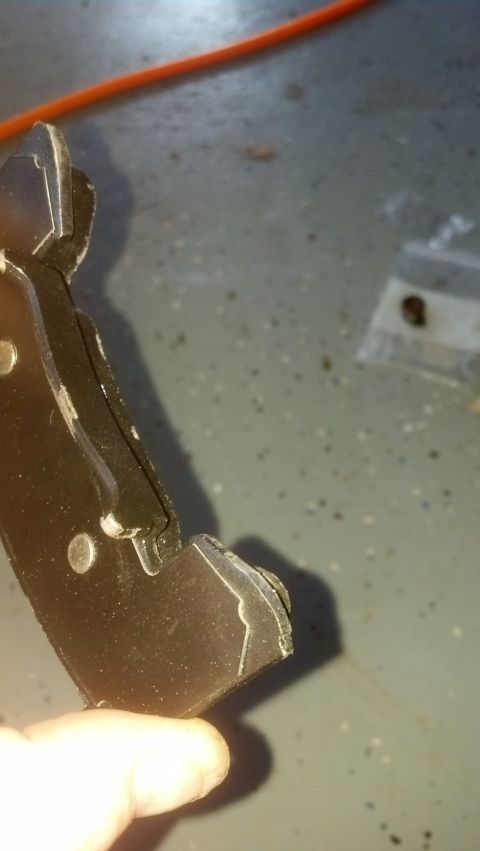

Bottom edge of the outboard pad was rubbing the rotor. Removed some of the brake baking plate and b...

132 hits | 47.28 KB | Posted: 10/26/15

138 hits | 35.29 KB | Posted: 10/26/15
It's measured from the transfer case skid plate to the floor. Sorry for the sideways picture.

120 hits | 57.22 KB | Posted: 11/8/15

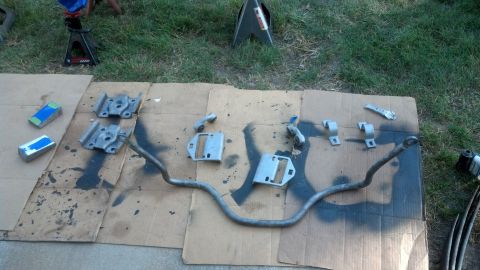

Misc. pieces ready for rubberized undercoating.

114 hits | 57.54 KB | Posted: 11/8/15

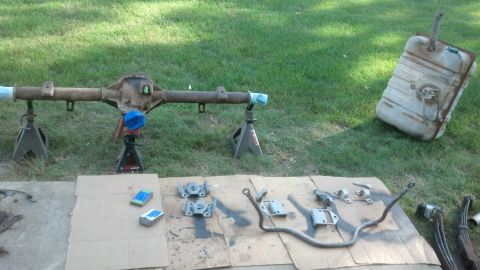

Ready to get "undercoated"; not the gas tank...

110 hits | 40.95 KB | Posted: 11/8/15

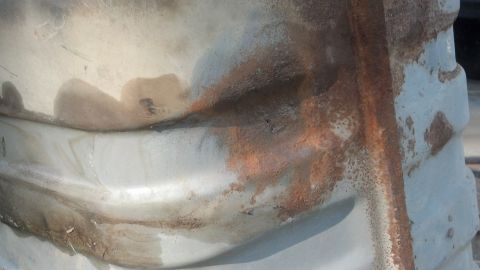

I kept saying that I smelled too much gas every-time I went to the shed to work on this old mare.

105 hits | 41.07 KB | Posted: 11/8/15

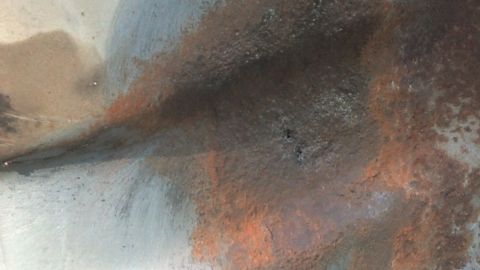

It has a couple holes in it.

117 hits | 51.94 KB | Posted: 11/8/15

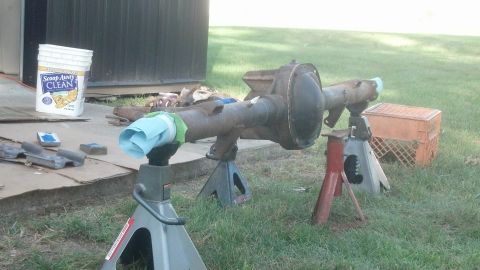

Here we go

108 hits | 66.39 KB | Posted: 11/8/15

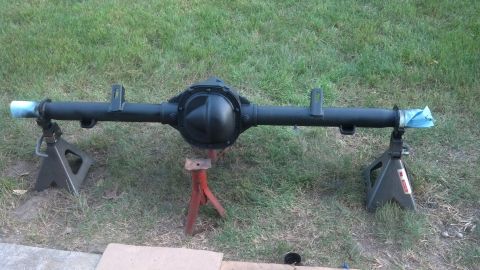

Not bad. 3M Rubberized undercoating

92 hits | 54.81 KB | Posted: 11/8/15

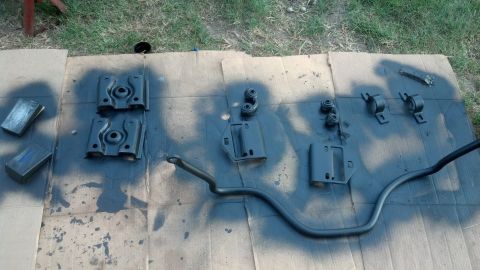

The other pieces...
