Add Backup Camera

From 2013 Ford Taurus “SOLD” — documented by mRdot.

8 photos

← Back to this vehicle

2013 Ford Taurus - This is the Taurus backup camera in 4.2 inch screen enable bit if you need it. APIM 0221 1000 00E1 - backup camera enabled only APIM 2221 1…

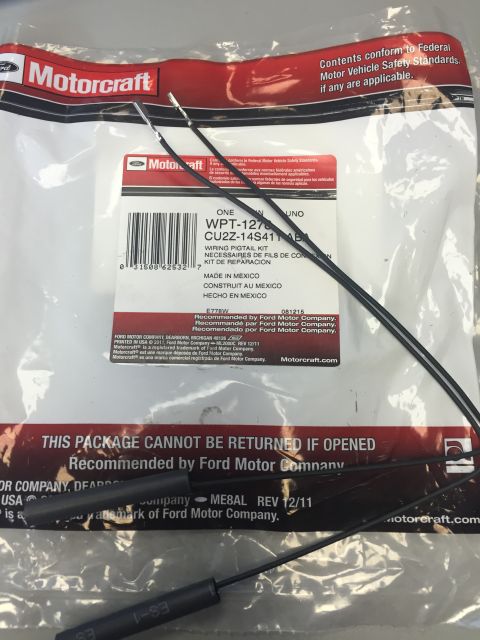

2013 Ford Taurus - WPT-1278 OEM wiring harness.

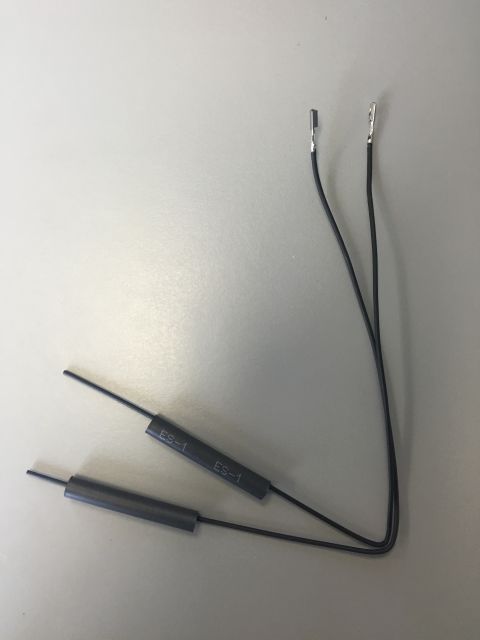

2013 Ford Taurus - Pins removed from replacement harness.

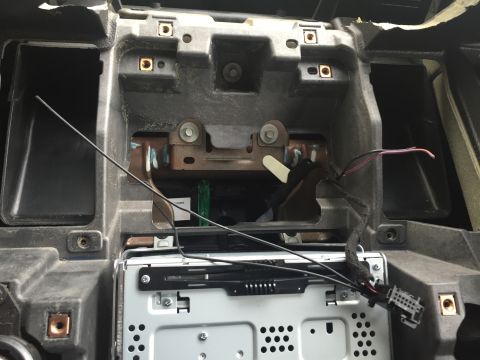

2013 Ford Taurus - Wires are injected into pins 6 and 12 on the harness, clearly labeled on the black connector - 6 is right above 12.

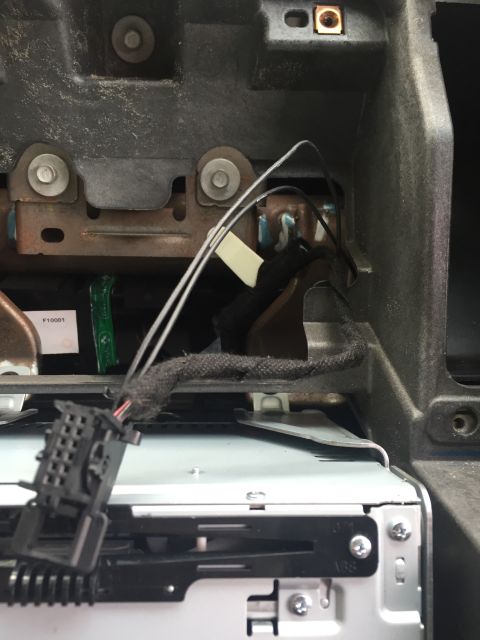

2013 Ford Taurus - The wires will run all the way to the trunk.

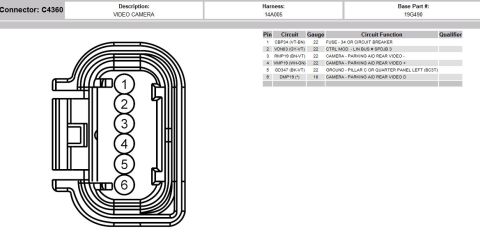

2013 Ford Taurus - rear camera connector view. tap in left brake light for power and ground, the other two pins are from the injected pins from the screen. Wi…

2013 Ford Taurus - The backup camera display shows parking lines and the rear view of an empty parking area.

2013 Ford Taurus - 2013 2014 FORD TAURUS REAR TRUNK LID TRIM W/CAMERA Part#: DG13-54425A22-B
