Transmission Cooler Installation

From 1992 Ford Bronco “Big '92” — documented by Jeremy Millrood.

9 photos
← Back to this vehicle

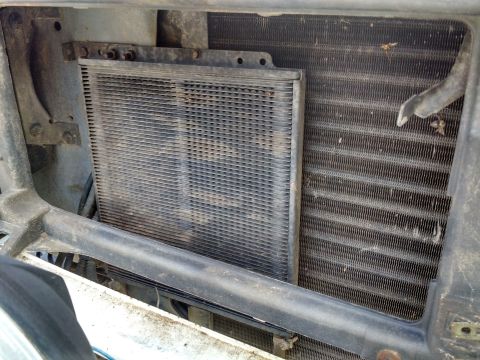

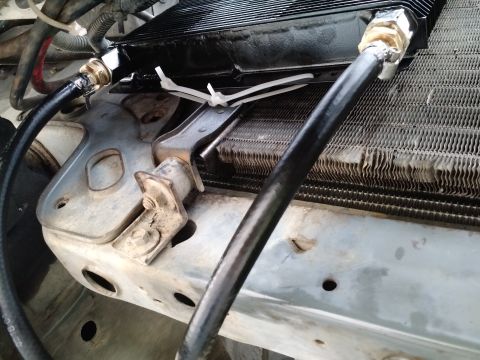

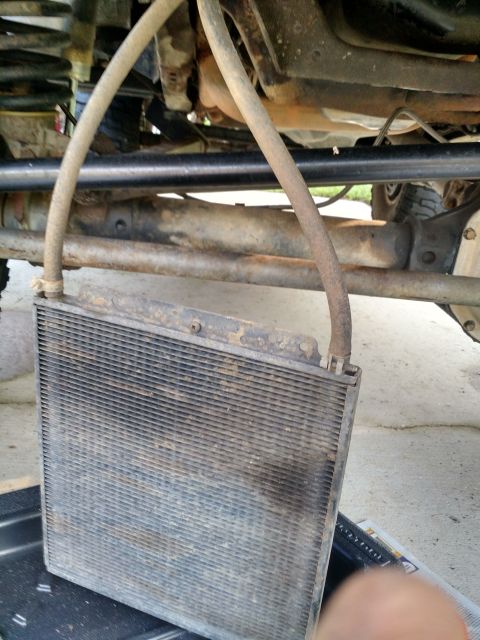

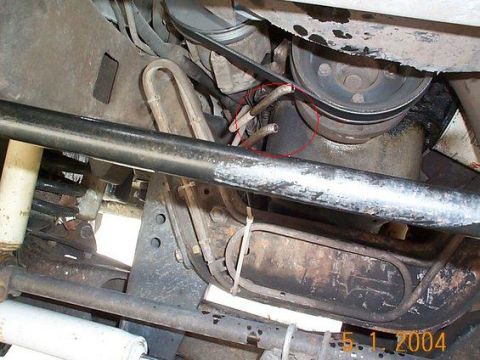

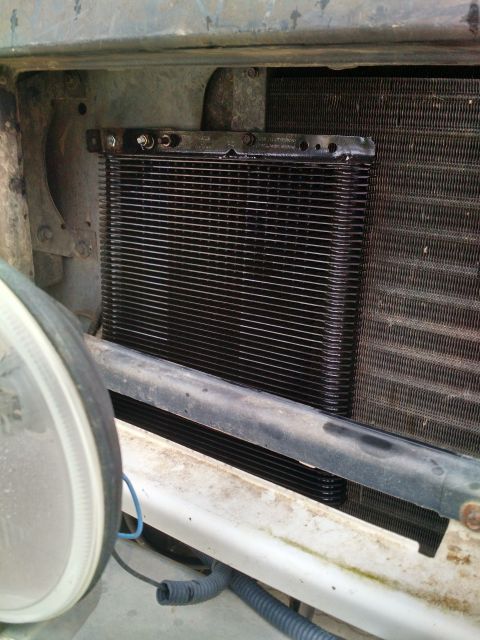

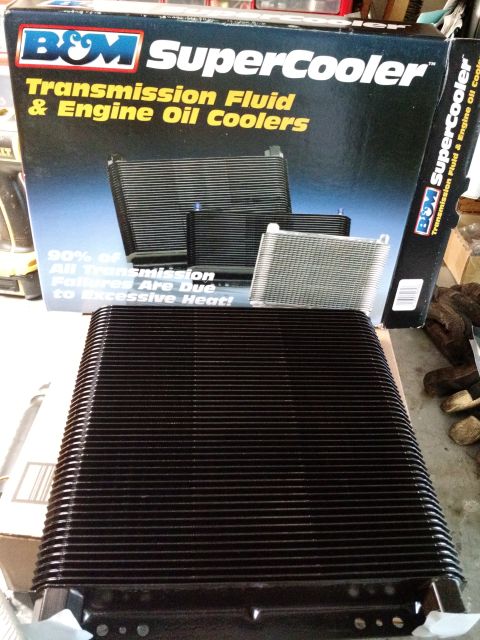

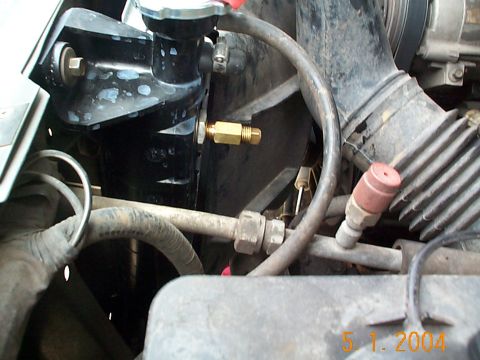

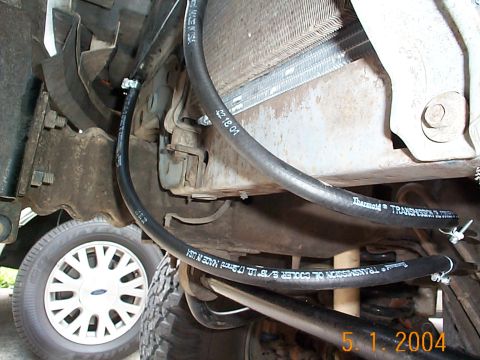

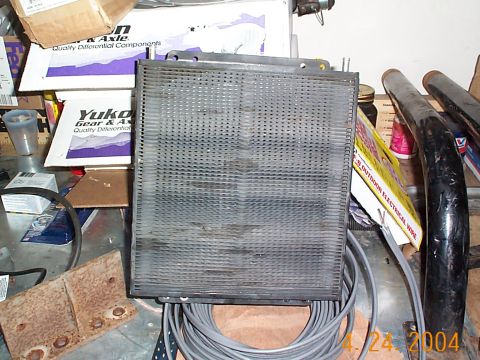

1992 Ford Bronco - Tranny cooler that I found in a van at the bone yard. 1992 Ford Bronco - Here you can see where I cut the tranny cooler lines down. 1992 Ford Bronco - Had to buy two plugs, one top and one bottom to seal off the original spot on the radiator where the lines went. 1992 Ford Bronco - Used 3/8 inch transmission oil line and some fuel injection clamps to make sure everything sealed up nice and tight. 1992 Ford Bronco - B&M transmission cooler. P/N 70274 1992 Ford Bronco - Close-up view of a transmission cooler installed in front of a vehicle's radiator. 1992 Ford Bronco - A transmission cooler is shown, disconnected and ready for installation or removal from the underside of a vehicle. 1992 Ford Bronco - Transmission cooler installed in front of the radiator assembly. 1992 Ford Bronco - Close-up view of transmission cooler lines and mounting hardware.
