Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Big '92”/ Wiring-Grounds supermotors.net/registry/2896/76377

Album section

Wiring-Grounds

From 1992 Ford Bronco “Big '92”, documented by Jeremy Millrood.

35 photos
← Back to this vehicle

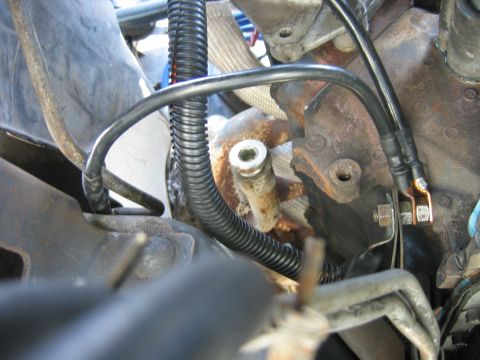

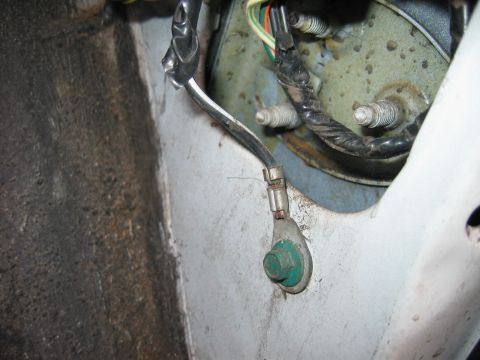

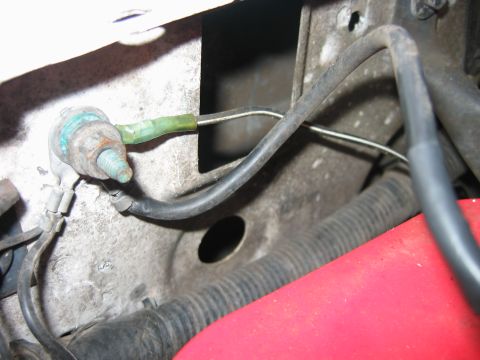

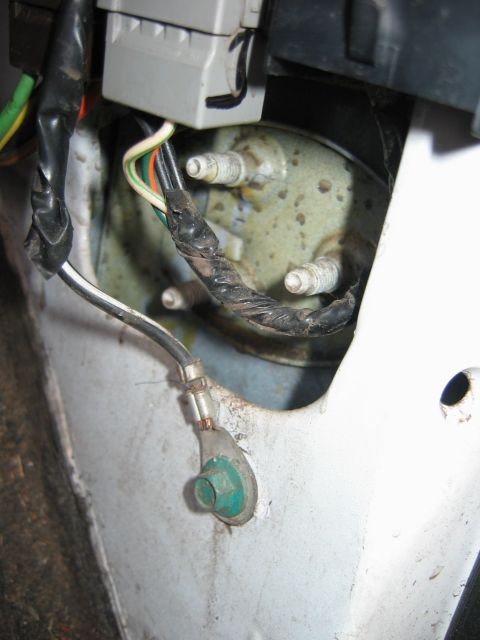

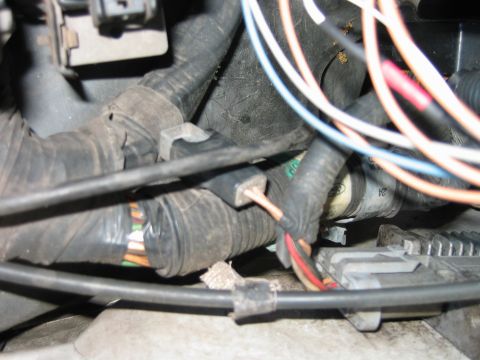

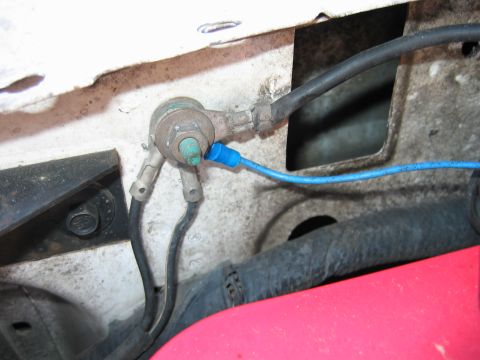

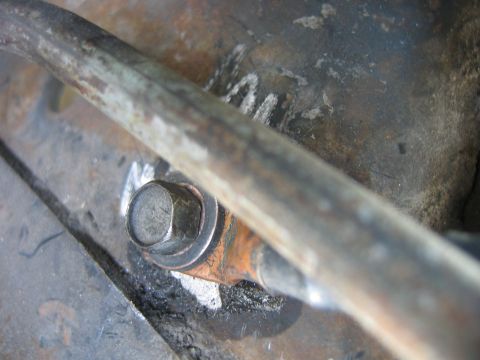

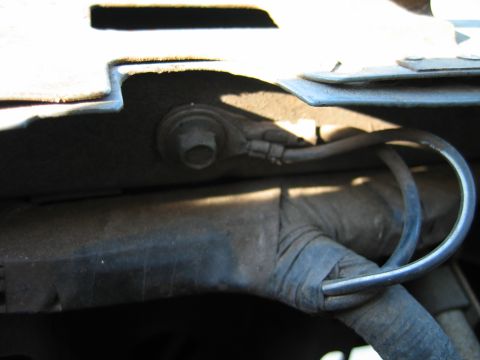

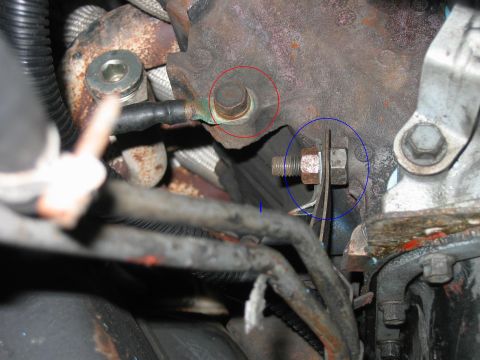

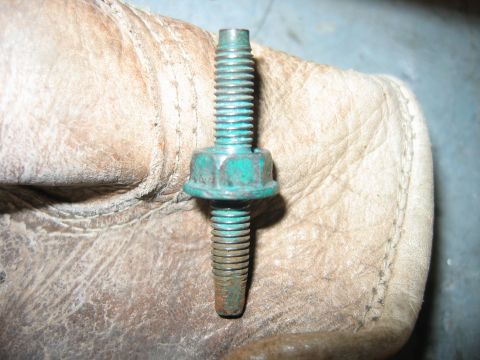

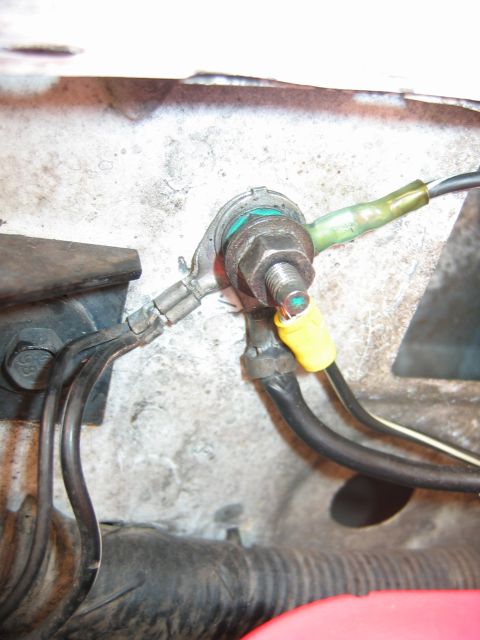

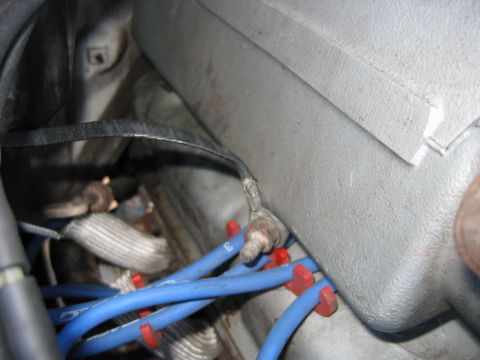

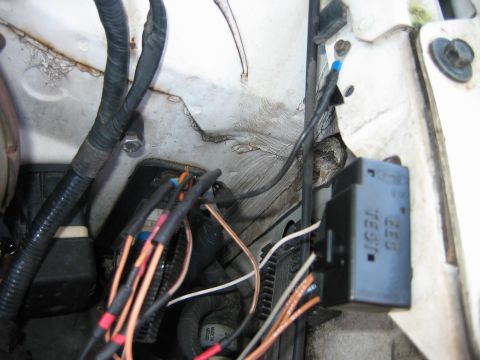

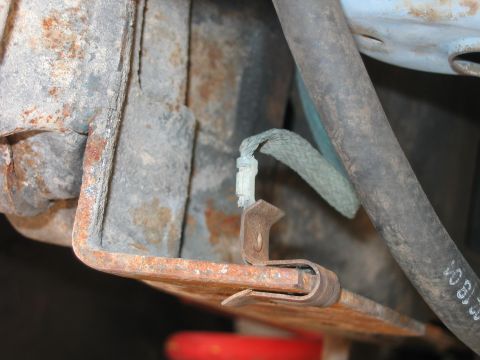

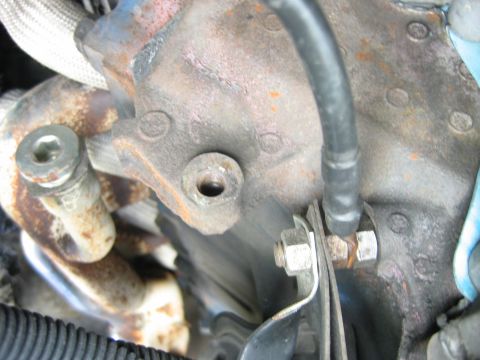

1992 Ford Bronco - self test port. This was before I swapped in the new harness, I had wired a new port into my old one. 1992 Ford Bronco - spout connector and pic of the TFI. 1992 Ford Bronco - this ground runs along the core support. 1992 Ford Bronco - Passenger side fender wall. I believe this is the ground for the EEC. passenger side fender wall. 1992 Ford Bronco - Engine-bay close-up of blue spark plug wires with red separators routed past a valve cover and heat-sleeved ignition leads. 1992 Ford Bronco - Engine-bay detail of a braided ground strap bolted to a white painted firewall with flaking paint and surface rust, running down past two h… 1992 Ford Bronco - Close-up view of a vehicle's ground wire connection, showing a corroded bolt and green insulated wire. 1992 Ford Bronco - A bolt with a green coating and integrated washer is held by a gloved hand, likely for a vehicle repair or maintenance task. 1992 Ford Bronco - Block ground 1992 Ford Bronco - This photo shows a close-up view of a ground wire connection on an engine component. 1992 Ford Bronco - Ground behind passenger side kick panel 1992 Ford Bronco - frame to body ground, passenger side front 1992 Ford Bronco - battery to body ground 1992 Ford Bronco - ground strap passenger side firewall attaches to bolt on upper intake plenum. 1992 Ford Bronco - battery to body ground, passenger side fender wall 1992 Ford Bronco - ground, drivers side front core support 1992 Ford Bronco - EEC test ground, drivers side fender wall 1992 Ford Bronco - unknown ground behind rear bumper rear next to gas tank, may be for back up lights or trailer connection 1992 Ford Bronco - ground behind drivers side kick panel just below hood release latch. 1992 Ford Bronco - A close-up view of a vehicle's electrical ground connection, showing wiring and a bolt. 1992 Ford Bronco - block ground wire 1992 Ford Bronco - frame ground wire, one side goes to block other side to battery. 1992 Ford Bronco - Close-up of car battery terminals and wiring, showing electrical connections. 1992 Ford Bronco - new negative clamp, G101 chassis to battery is now soldered into the terminal and the cable runs directly to the block. 1992 Ford Bronco - alternator ground cable. 1992 Ford Bronco - A close-up view of a worn wiring harness connected to a bracket, showing signs of rust and wear. 1992 Ford Bronco - A close-up view of a ground wire connection, showing a bolt and some surface rust. 1992 Ford Bronco - ground to the block. 1992 Ford Bronco - Close-up of a vehicle battery and its associated wiring, including a cable labeled 'PAGE BATTERY CABLE'. 1992 Ford Bronco - This was my old body to ground wire, you can see where it was corroded and pulled right out of the eyelet. I'm sure this wasn't working. 1992 Ford Bronco - A frayed battery cable is shown being held near its terminal on a red car battery. 1992 Ford Bronco - A close-up shot focuses on a car battery terminal and its connected cable, with some text visible on a sticker. 1992 Ford Bronco - pinched ground wire on my O2 sensor. 1992 Ford Bronco - Connector face diagram of a 60-pin Ford fuel-injection connector with numbered pin positions on a keyed housing. 1992 Ford Bronco - Engine-compartment component location schematic identifying connectors, grounds, sensors, lamps and modules for a Bronco series.
