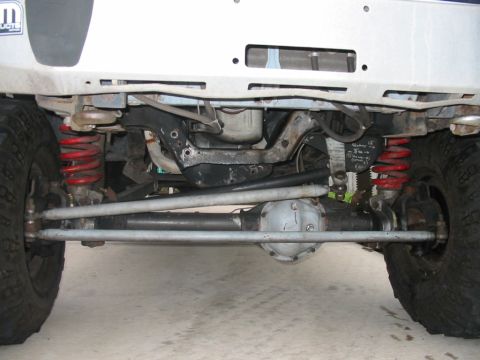

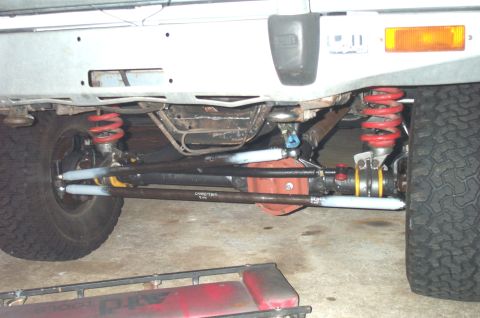

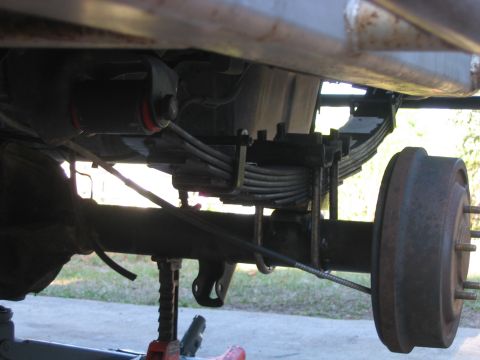

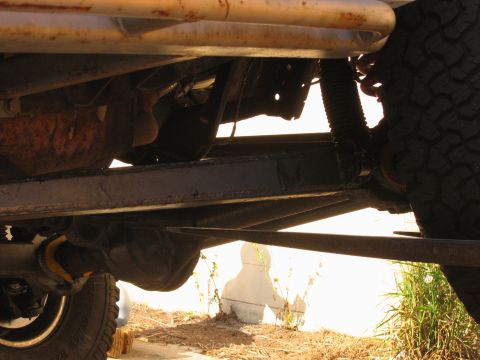

Solid Axle Swap Dana 44

From 1992 Ford Bronco “Big '92”, documented by Jeremy Millrood.

91 photos
← Back to this vehicle

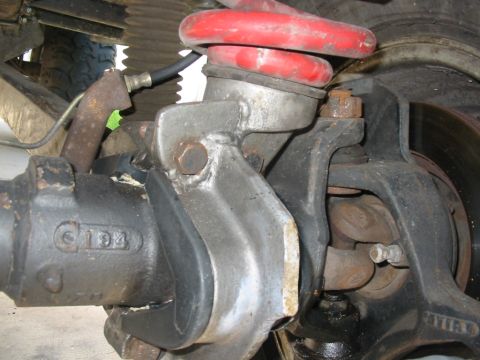

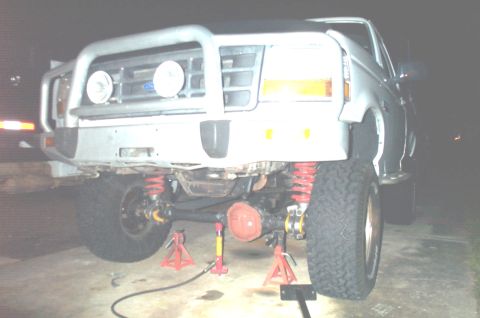

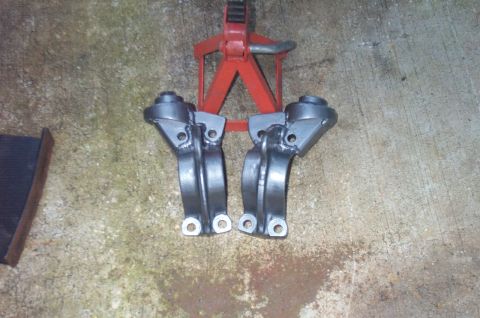

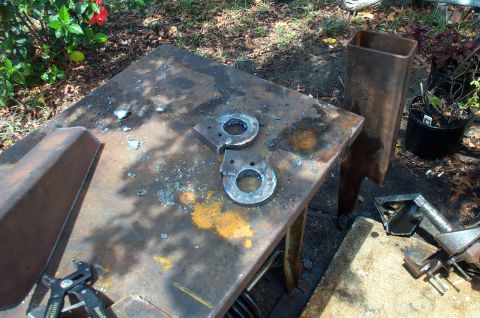

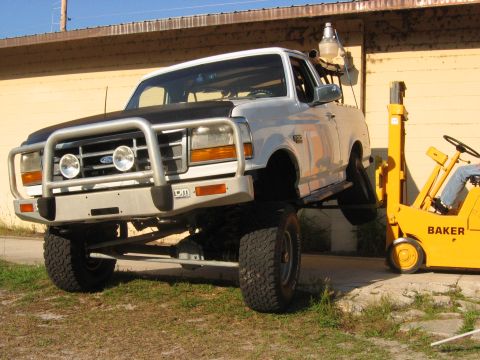

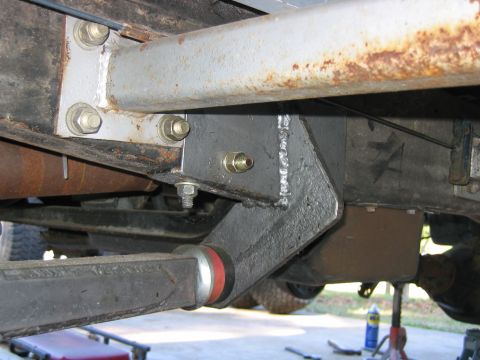

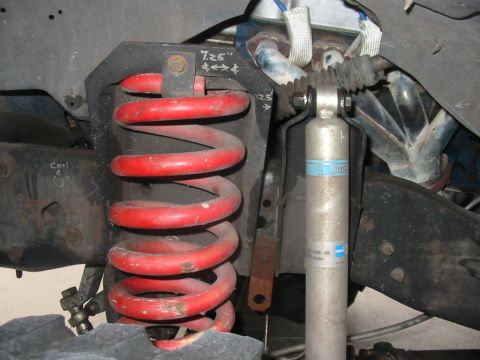

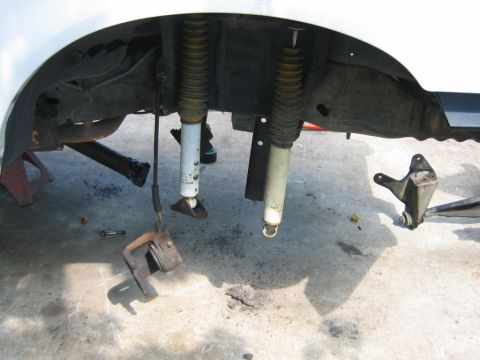

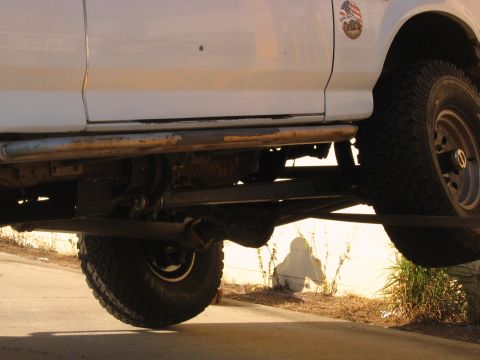

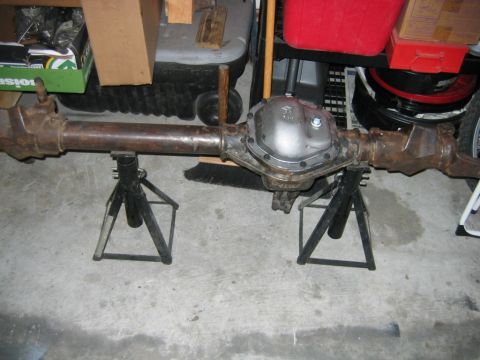

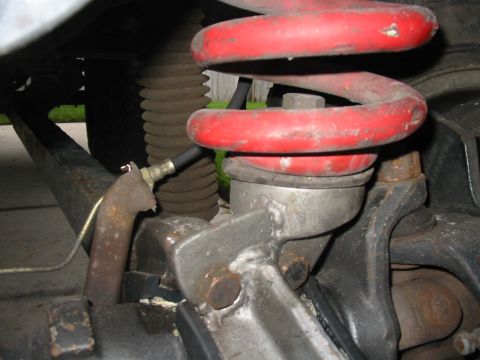

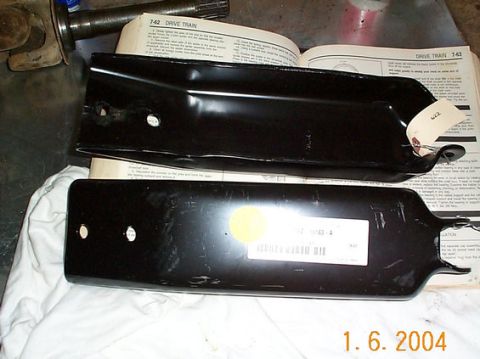

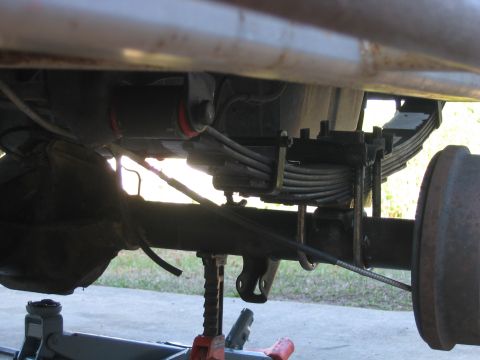

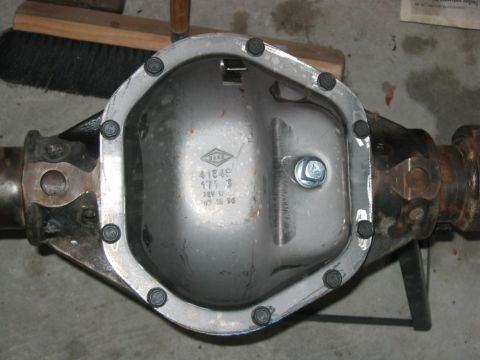

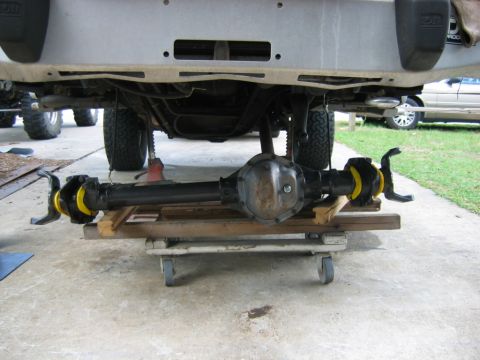

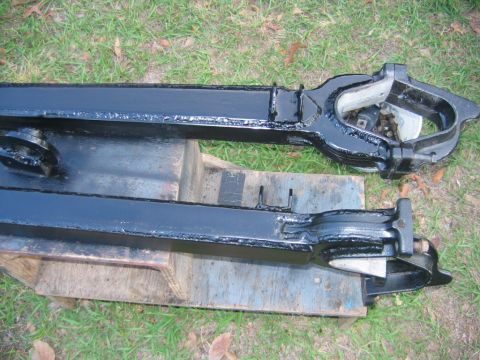

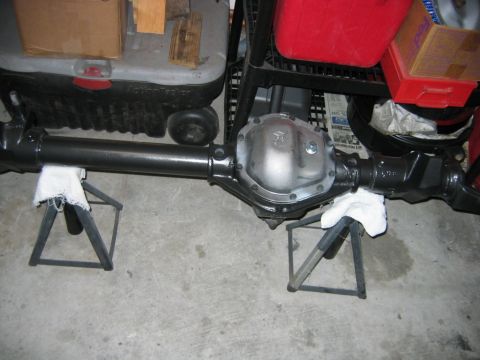

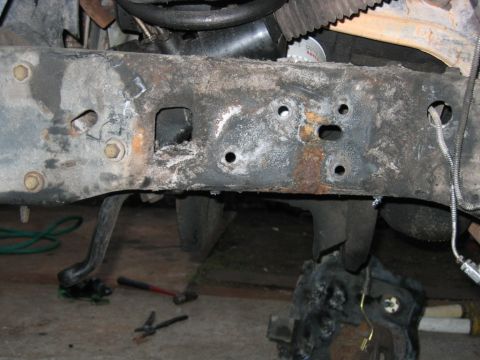

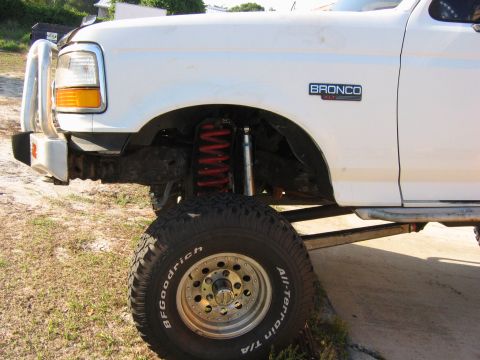

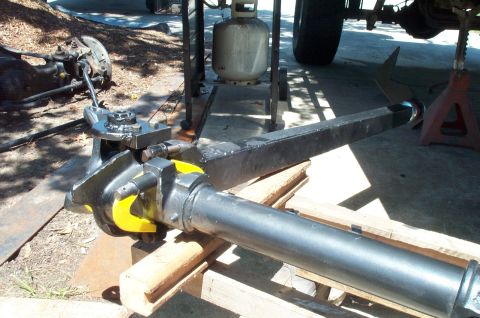

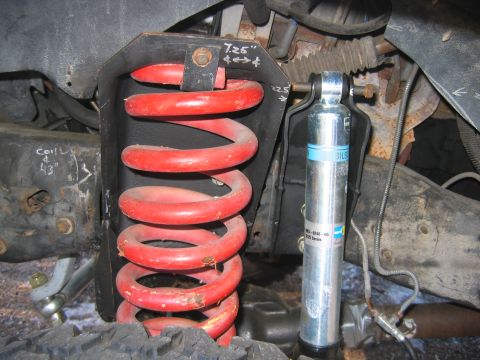

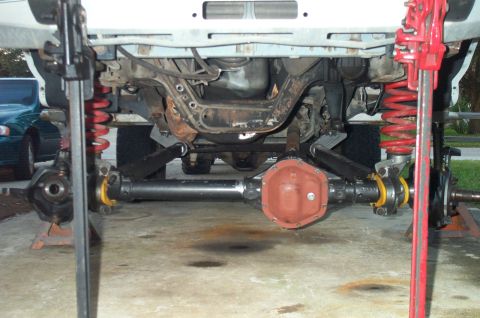

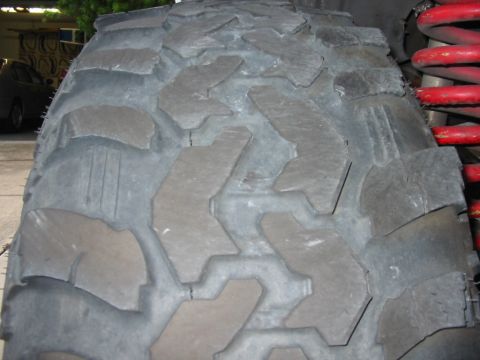

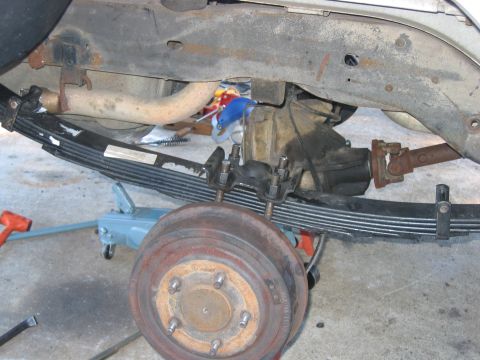

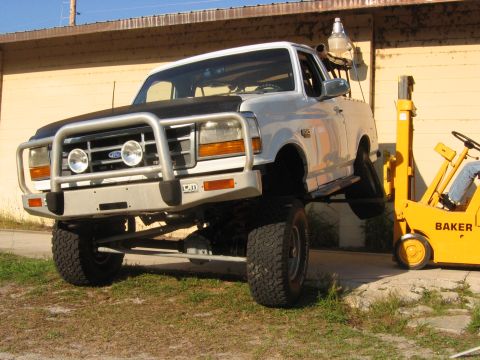

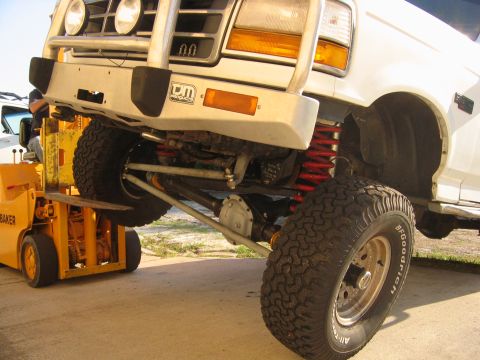

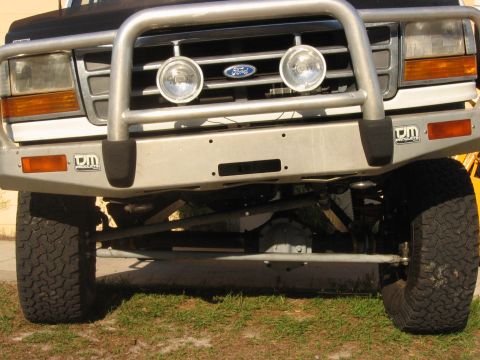

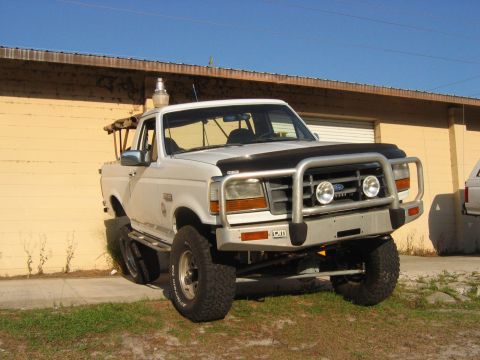

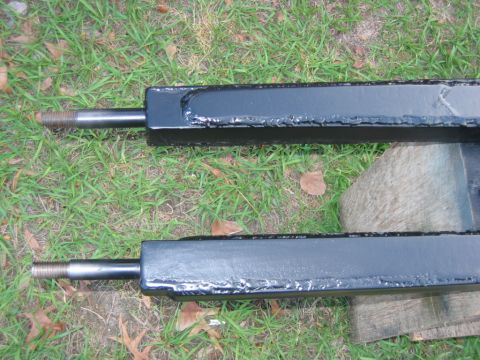

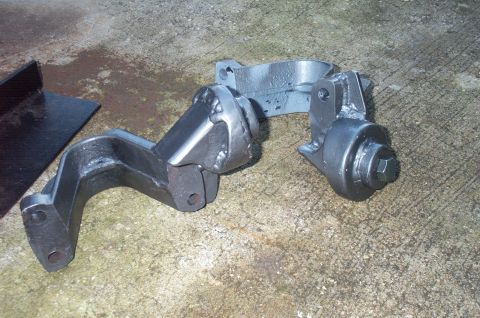

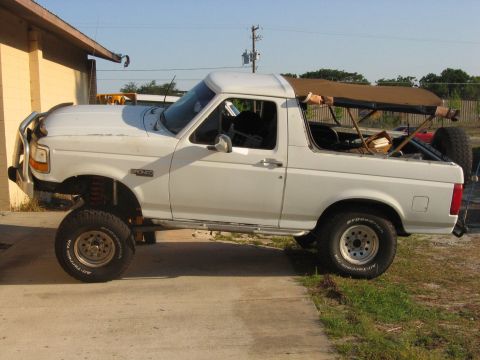

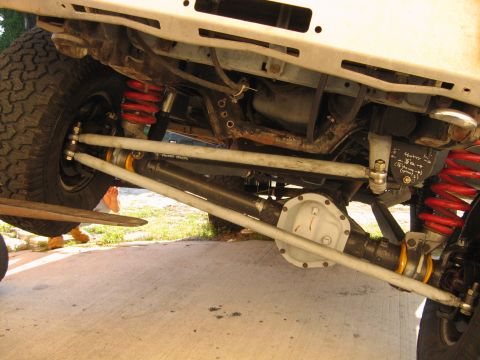

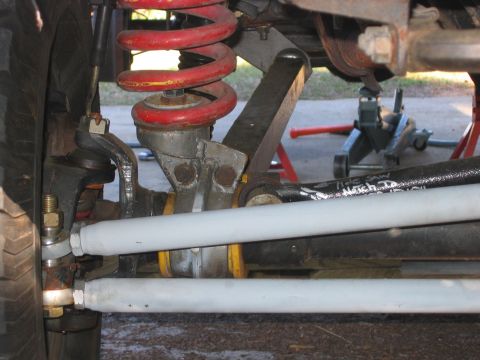

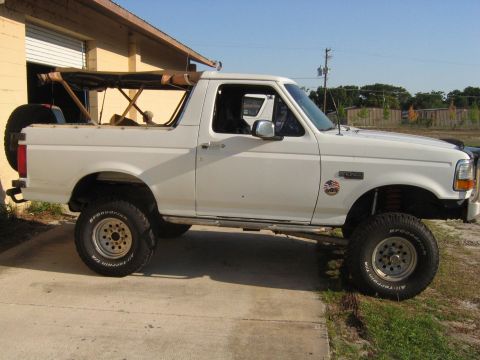

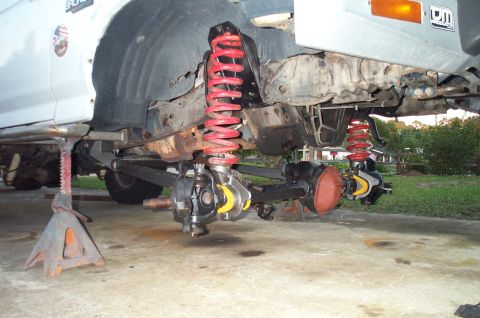

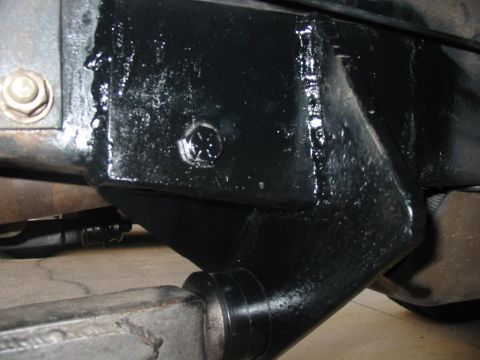

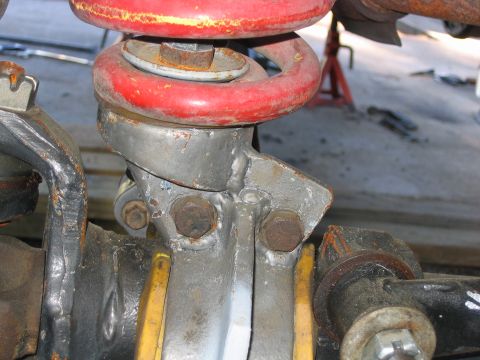

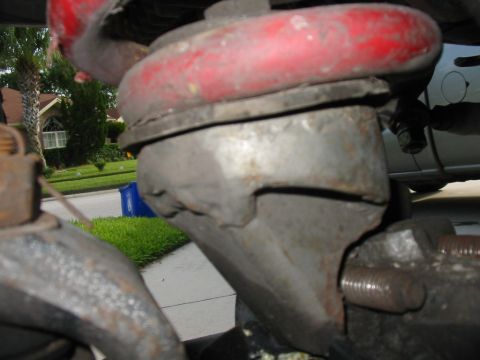

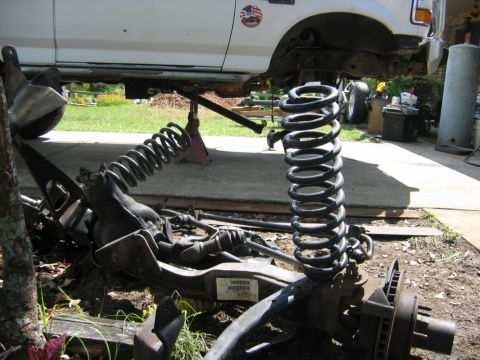

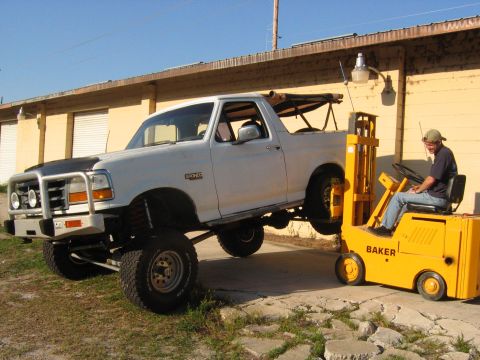

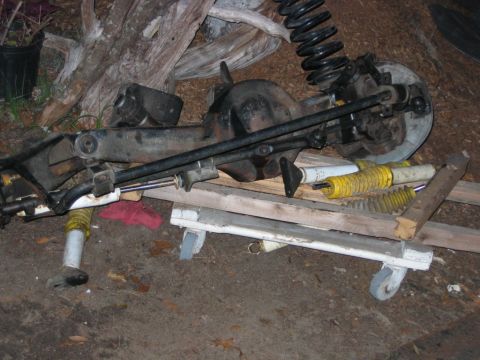

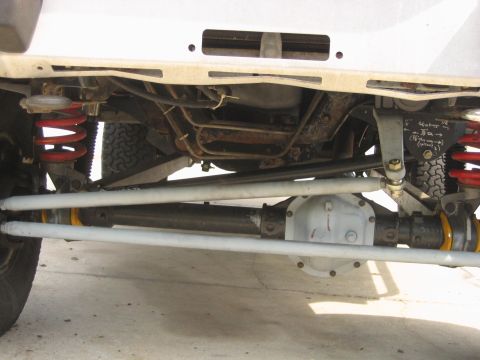

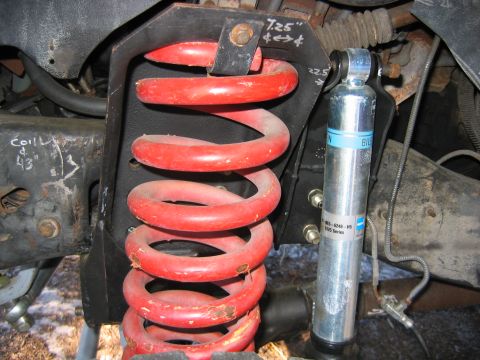

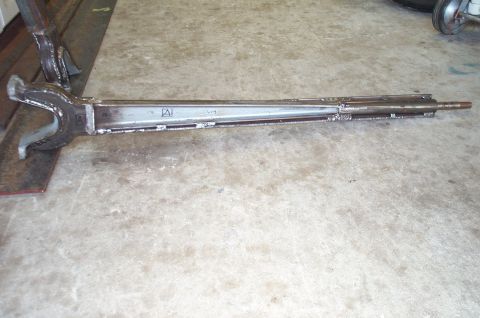

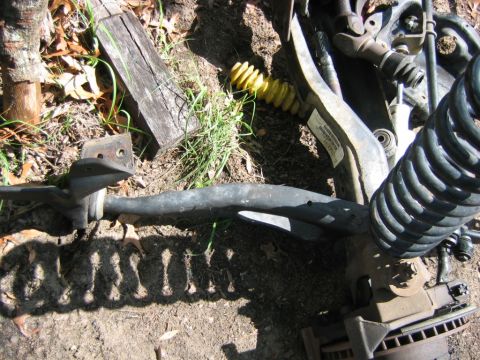

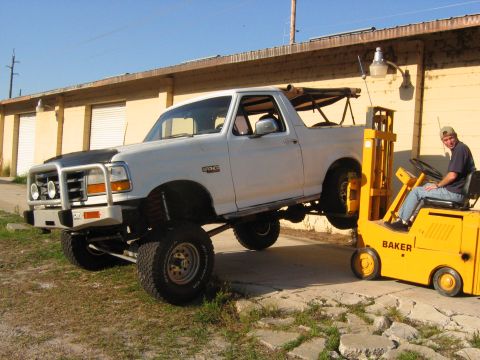

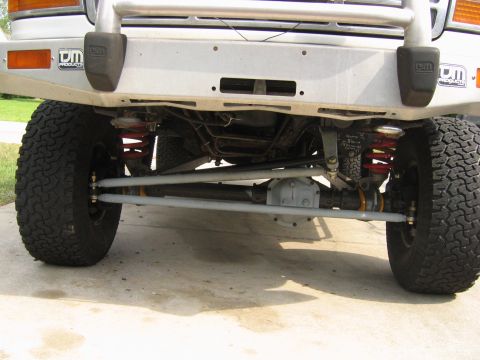

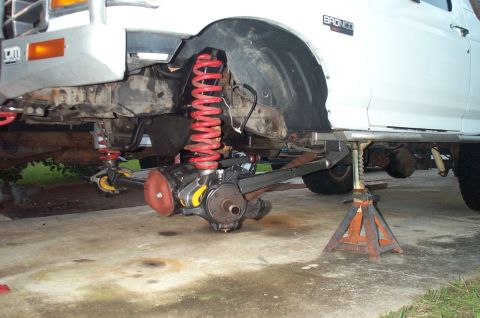

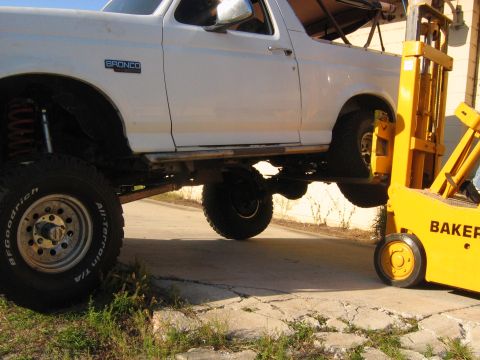

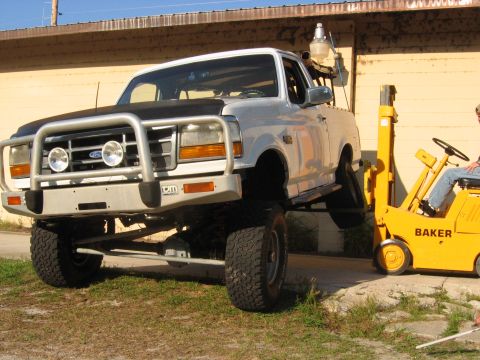

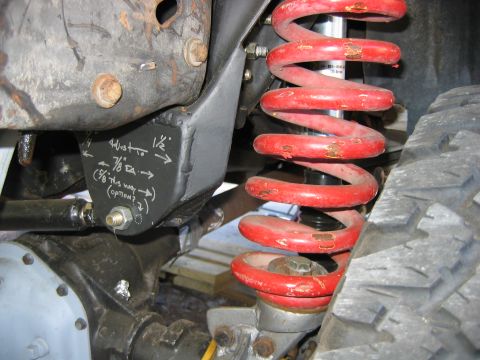

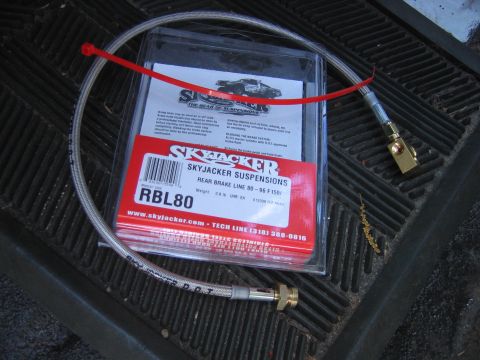

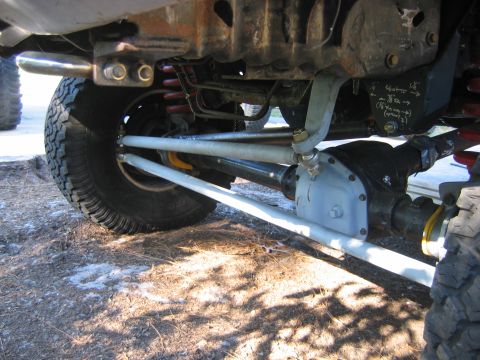

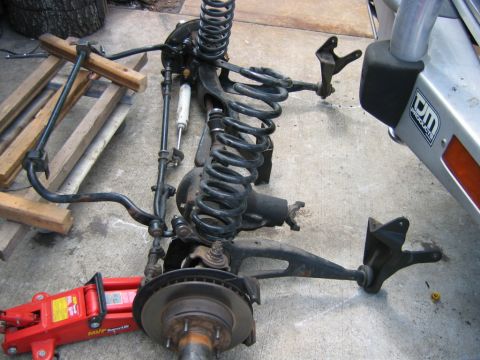

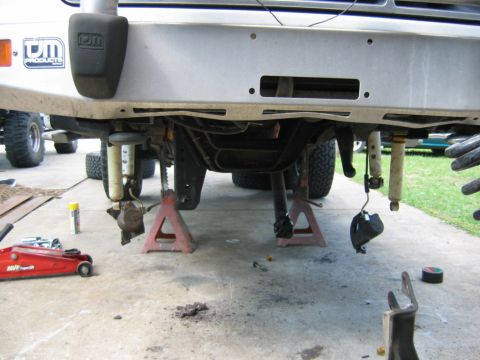

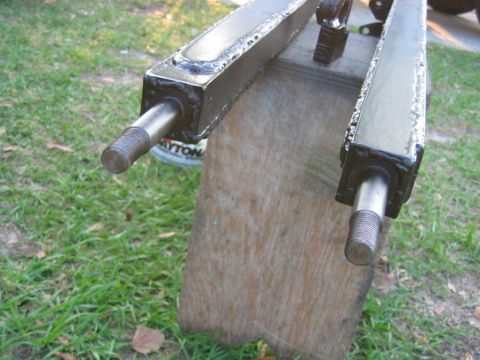

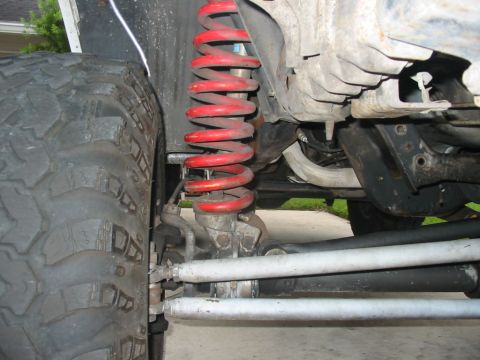

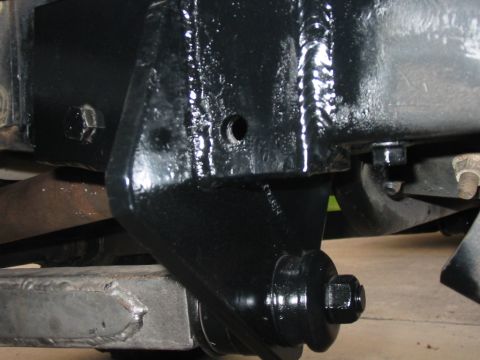

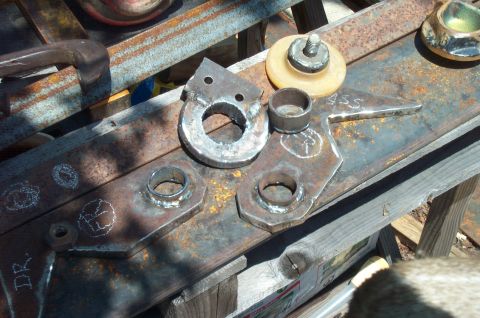

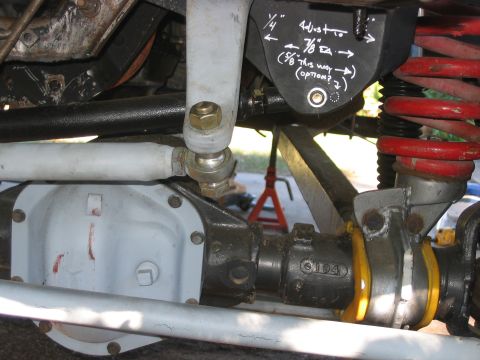

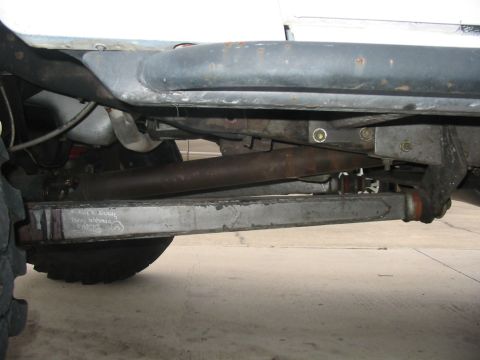

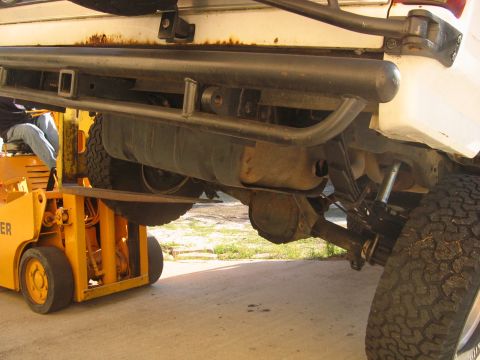

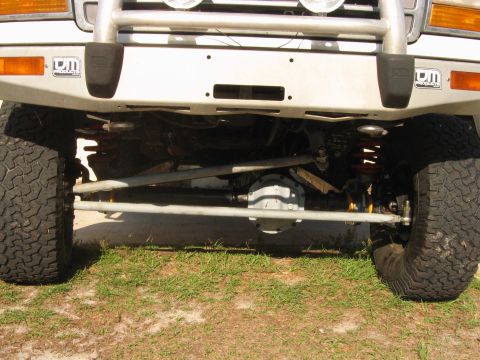

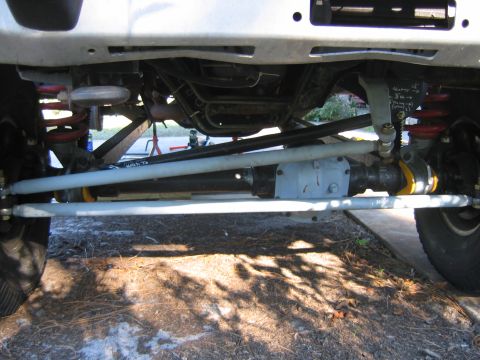

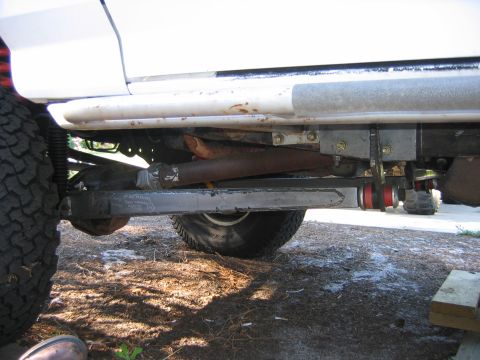

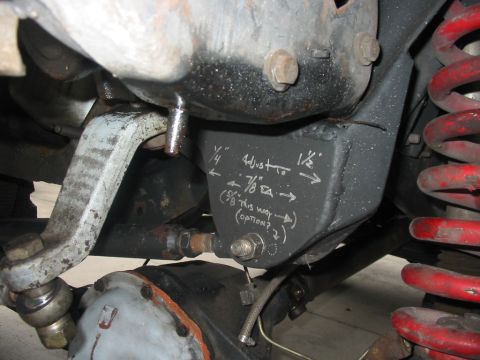

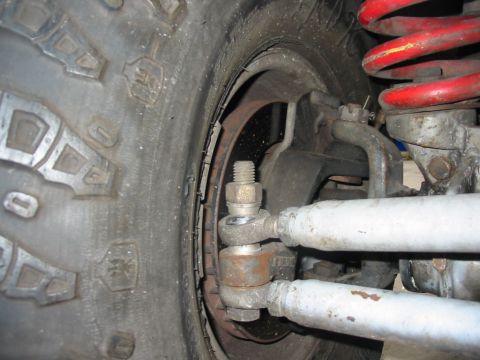

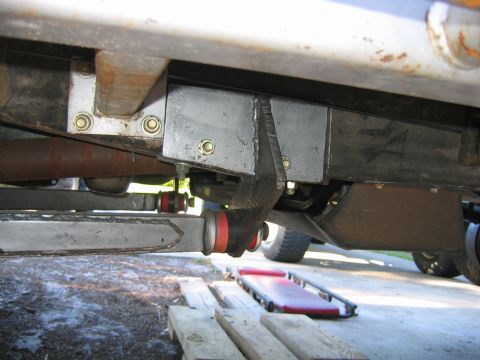

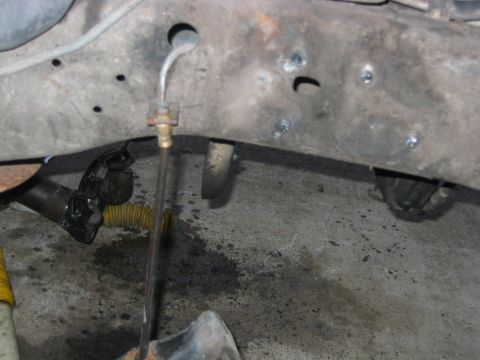

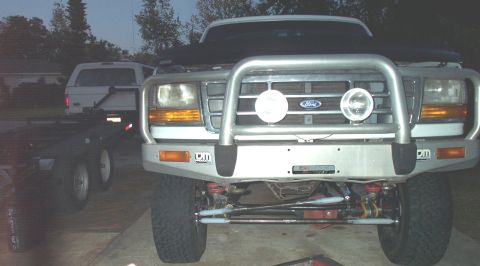

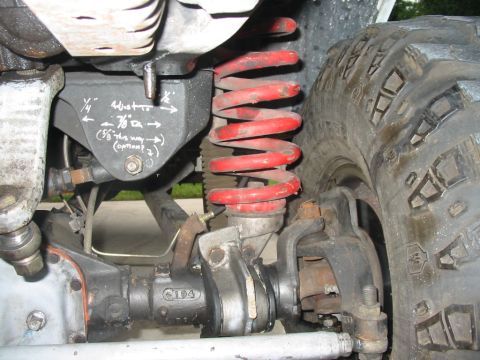

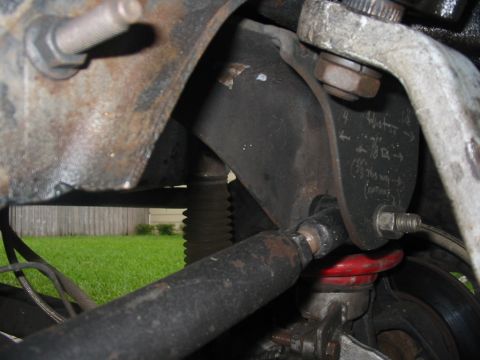

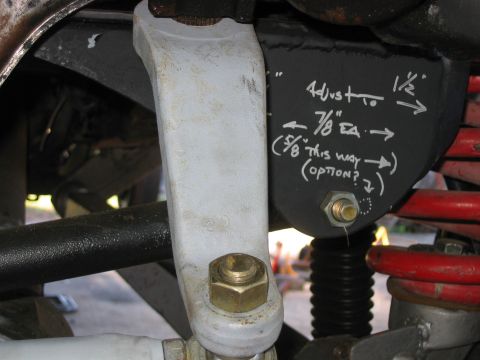

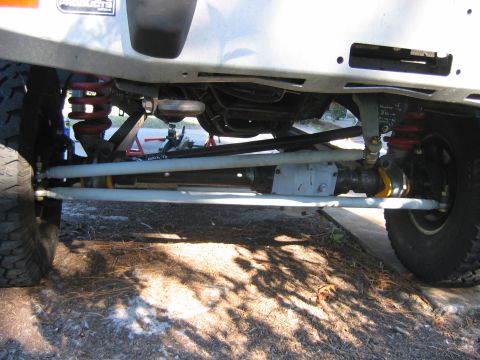

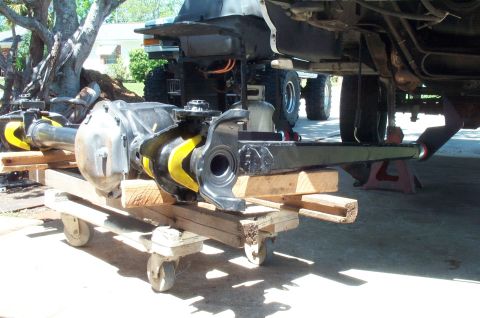

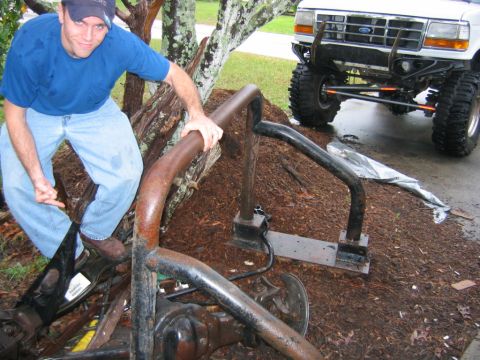

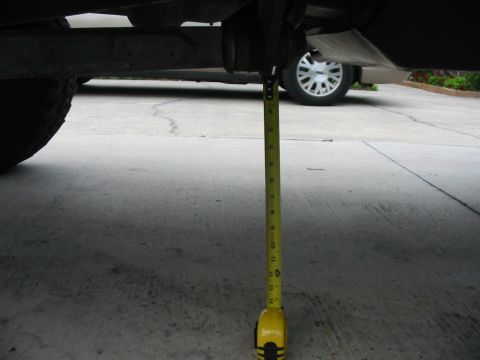

1992 Ford Bronco - Parts list and cost for my solid axle swap 1992 Ford Bronco - Dana 44 axle hot tanked, wire brushed with gears installed (4.56 w/detroit trutrac) 1992 Ford Bronco - Axle all painted up with several coats of rustoleum hammered black. 1992 Ford Bronco - A close-up view of a Dana differential cover on a vehicle's rear axle. The cover is silver and secured with multiple bolts, with some text… 1992 Ford Bronco - shock mounts from a '97 F250 1992 Ford Bronco - Used stock radius arms that were plated for strength and extended 18 inches with a kit from a company called Bent and Twisted. These are su… 1992 Ford Bronco - Two black metal trailer hitch receivers with threaded shafts are shown lying on the grass. The receivers have rough weld lines visible alon… 1992 Ford Bronco - Two black metal trailer axle beams with threaded spindles are resting on a wooden board outdoors. The beams are welded and appear to be par… 1992 Ford Bronco - TTB completely removed. 1992 Ford Bronco - A white Ford truck is raised on jack stands with its front suspension components, including a large coil spring, removed and lying on the g… 1992 Ford Bronco - A disassembled suspension system, likely from a 1992 Ford Bronco, lies on the ground. Visible parts include a coil spring, control arm, and… 1992 Ford Bronco - A disassembled rear axle assembly with shocks and springs is laid out on the ground amongst wood scraps and natural debris. The axle is dar… 1992 Ford Bronco - Good bye TTB, you won't be missed. 1992 Ford Bronco - A man in a blue t-shirt and jeans crouches over rusty vehicle axle parts in a yard. 1992 Ford Bronco - front end is vacant waiting for the new axle. 1992 Ford Bronco - getting ready to remove the coil buckets. 1992 Ford Bronco - coil buckets removed. 1992 Ford Bronco - A close-up view of the underside of a vehicle frame, showing a brake line assembly and some rust. The concrete floor below has oil stains. 1992 Ford Bronco - Rolling the solid dana 44 into it's new home. used 4 degree c-bushings. 1992 Ford Bronco - everything back together. Post note, the front end needed some work at this point to get all the geometry in line. The tie rod was too long… 1992 Ford Bronco - bit of a funky set up, in hind sight I should have use coil mounts from a '78/'79 axle, but we went with TTB style mount in order to use th… 1992 Ford Bronco - Close-up view of the suspension and differential components of a 1992 Ford Bronco. A black adjustable bracket with white chalk markings is… 1992 Ford Bronco - Close-up of a suspension component with handwritten adjustments on a black plate. The plate has markings indicating measurements and direct… 1992 Ford Bronco - These coils are from a TTB set, pretty sure they are rough country. Spring rate was way too stiff, later on I switched over to a custom 300… 1992 Ford Bronco - A close-up view of the suspension system of a vehicle, featuring a red coil spring, a shock absorber, and a metal bracket with handwritten… 1992 Ford Bronco - A close-up view of the suspension and drivetrain of a modified 4x4 vehicle, likely an older Ford Bronco, showing the front differential, st… 1992 Ford Bronco - The underside of a white vehicle shows a modified suspension system with a large metal control arm and red bushings. A portion of a knobby… 1992 Ford Bronco - A close-up, low-angle view of the undercarriage of a modified vehicle, showing custom metal brackets and suspension components, possibly a… 1992 Ford Bronco - A close-up view shows a custom-fabricated bracket welded to the frame of a vehicle, likely a 1992 Ford Bronco, with a suspension component… 1992 Ford Bronco - The underside of a vehicle shows a leaf spring suspension system with a drum brake assembly attached to the rear axle. The vehicle is suppo… 1992 Ford Bronco - This image shows the underside of a vehicle's rear suspension system, focusing on the leaf springs and axle assembly. A hydraulic jack is v… 1992 Ford Bronco - A red coil spring and a silver Bilstein shock absorber are visible on the front suspension of a 1992 Ford Bronco. Markings on the suspensio… 1992 Ford Bronco - The underside of a vehicle, likely a 1992 Ford Bronco, showing the steering linkage and suspension components. The image focuses on the fro… 1992 Ford Bronco - A close-up view shows the suspension components of a vehicle, including a red coil spring and a silver shock absorber mount secured with bo… 1992 Ford Bronco - The underside of a vehicle showing the rear leaf spring suspension system, differential, and brake drum. A blue hydraulic jack is positione… 1992 Ford Bronco - The front underside of a lifted 1992 Ford Bronco shows its heavy-duty suspension components, including red coil springs, grey steering link… 1992 Ford Bronco - The underside of a vehicle, likely a 1992 Ford Bronco, showing the front axle, suspension components including red coil springs, and steeri… 1992 Ford Bronco - A new Skyjacker RBL80 rear brake line kit for a 1980-1996 Ford F-150 is shown in its packaging, secured with a red zip tie. 1992 Ford Bronco - The side view of a white 1992 Ford Bronco with a lifted suspension and off-road tires is parked on a concrete surface in front of a buildin… 1992 Ford Bronco - Close-up view of the rear axle and suspension system on a heavy-duty truck. 1992 Ford Bronco - This lifted 1992 Ford Bronco is parked outdoors under a clear blue sky. 1992 Ford Bronco - A lifted 1992 Ford Bronco is parked next to a yellow vehicle under a clear sky. 1992 Ford Bronco - A silver SUV with a brush guard and large tires is parked outdoors. 1992 Ford Bronco - A white Ford pickup truck is being lifted by a yellow Baker forklift. The truck has a large silver bull bar with two auxiliary lights mount… 1992 Ford Bronco - A white Ford Bronco is being lifted by a yellow Baker forklift. The Bronco's front tire and suspension are visible, as is the side of the v… 1992 Ford Bronco - A low-angle, close-up front view of a 1992 Ford Bronco's grille, bumper, and suspension components. The vehicle features a silver brush gua… 1992 Ford Bronco - A yellow forklift lifts the rear of a white Ford Bronco, supporting its frame and showing the underside with the fuel tank, suspension, and… 1992 Ford Bronco - A white 1990s Ford Bronco is parked on a concrete driveway next to a garage. The vehicle has a tan soft top over the rear section and a spa… 1992 Ford Bronco - A white Ford Bronco with a tan soft top is parked on a concrete driveway next to a building. The vehicle has a spare tire mounted on the re… 1992 Ford Bronco - A white 1990s Ford F-Series pickup truck is parked in front of a yellow building. The truck features a brush guard with two large round lig… 1992 Ford Bronco - A white 1992 Ford Bronco is being lifted by a yellow forklift. The Bronco has a black hood and a brush guard on the front bumper. 1992 Ford Bronco - A white Ford Bronco is being lifted by a yellow Baker forklift. A man wearing a cap sits in the forklift's driver seat. 1992 Ford Bronco - A lifted white Ford Bronco is being moved by a yellow Baker forklift. A man wearing a baseball cap is operating the forklift. 1992 Ford Bronco - Close-up view of the front passenger side of a lifted white Ford Bronco. The image highlights the suspension components, including a red co… 1992 Ford Bronco - A white Ford Bronco is being lifted by a yellow forklift, with its front bumper and grille guard elevated. The vehicle has a lifted suspens… 1992 Ford Bronco - A white Ford Bronco is being lifted by a yellow forklift, showing its front suspension and off-road tires. The vehicle has a custom bumper… 1992 Ford Bronco - A white Ford Bronco is parked on a concrete driveway with a brush guard and aftermarket wheels. The front passenger side of the vehicle is… 1992 Ford Bronco - A lifted white 1992 Ford Bronco with a tan soft top is parked on a concrete driveway next to a building. The vehicle has a brush guard on t… 1992 Ford Bronco - A white 1992 Ford Bronco is lifted by a yellow forklift, showing its lifted suspension and all-terrain tires. The side of the vehicle and i… 1992 Ford Bronco - The underside of a white Ford Bronco is shown, with a large off-road tire and suspension components visible. A metal rock slider is mounted… 1992 Ford Bronco - The underside of a vehicle shows a heavily rusted exhaust component and suspension parts, including a shock absorber and a portion of the r… 1992 Ford Bronco - Undercarriage view of a modified 1992 Ford Bronco, showcasing the front suspension with red coil springs, yellow shock absorbers, and a com… 1992 Ford Bronco - Undercarriage view of a modified 4x4 vehicle, likely a Ford Bronco, showing the front suspension with red coil springs, differential, and s… 1992 Ford Bronco - A close-up view of the front suspension of a 1992 Ford Bronco, showing the large knobby tire, red coil spring, and various suspension compo… 1992 Ford Bronco - Close-up view of the suspension system of a 1992 Ford Bronco, showing a red coil spring, a black adjustable bracket with handwritten measur… 1992 Ford Bronco - Close-up view of a vehicle's suspension system, showing a red coil spring, a shock absorber, and a metal bracket with handwritten adjustmen… 1992 Ford Bronco - Close-up view of the suspension system of a 1992 Ford Bronco, showing a custom bracket with handwritten adjustment instructions and a red c… 1992 Ford Bronco - A close-up view of the front suspension of a 1992 Ford Bronco, featuring a red coil spring and a Bilstein shock absorber. Markings on the s… 1992 Ford Bronco - The underside of a vehicle shows a suspension component with handwritten text that reads 'FASTER TO PUSH THEN WRONG SHOCKS'. A tire is visi… 1992 Ford Bronco - A yellow measuring tape is held vertically next to the undercarriage of a vehicle, showing a measurement of approximately 14 inches from th… 1992 Ford Bronco - A close-up, low-angle shot shows the aggressive tread pattern of a large off-road tire, with a red coil spring visible to the right. 1992 Ford Bronco - A close-up, low-angle shot of the tread on a large off-road tire, likely from a 1992 Ford Bronco. The tire shows significant wear and is mo… 1992 Ford Bronco - A close-up view of the red coil spring and suspension components on a vehicle, with a brake line visible. 1992 Ford Bronco - A close-up view of the front suspension and tire of a 1992 Ford Bronco. The image shows the tire tread, a red coil spring, and various stee… 1992 Ford Bronco - Close-up view of the front suspension and braking system of a vehicle, likely a 4x4, showing a red coil spring, brake rotor, and various me… 1992 Ford Bronco - A close-up view of the suspension components of a vehicle, likely a truck or SUV, showing a red coil spring over a metal housing with visib… 1992 Ford Bronco - A close-up view of the black-painted frame of a vehicle, showing a bolt and a suspension component. The area appears to be under the chassi… 1992 Ford Bronco - A close-up view of a black painted suspension component, likely a bracket, attached to a vehicle frame with visible bolts and bushings. The… 1992 Ford Bronco - A close-up view of a heavy-duty metal tool, possibly a specialized wrench or clamp, with visible welding and an "A" logo stamped on its bod… 1992 Ford Bronco - Two metal circular pieces with holes are on a rusty metal table. The table is outdoors with some plants and debris around it. 1992 Ford Bronco - This image shows various metal fabrication parts, including welded brackets and a large metal ring, laid out on a rusty metal surface. The… 1992 Ford Bronco - A heavy-duty front axle assembly, painted black with yellow accents, is supported by wooden blocks and a wheeled dolly. The axle appears to… 1992 Ford Bronco - A close-up view of a vehicle's axle assembly, painted black with yellow accents, is supported by wooden blocks and a jack stand. The axle a… 1992 Ford Bronco - Two dark gray metal suspension components, possibly control arm brackets, are laid out on a concrete surface. A red jack stand is visible i… 1992 Ford Bronco - Two custom-fabricated metal brackets, one painted dark gray and the other a lighter gray, are displayed on a concrete surface. The bracket… 1992 Ford Bronco - The underside of a vehicle, likely a 1992 Ford Bronco, is shown with the front axle and suspension components visible. Red coil springs, a… 1992 Ford Bronco - The underside of a white Ford Bronco is shown with the front suspension disassembled and supported by jack stands. Red coil springs and sus… 1992 Ford Bronco - The undercarriage of a white Ford Bronco is shown, lifted on jack stands with the front suspension components disassembled. Red coil spring… 1992 Ford Bronco - Front view of a lifted 1992 Ford Bronco on jack stands, with red coil springs and a custom front bumper with auxiliary lights. The vehicle… 1992 Ford Bronco - The underside of a 1992 Ford Bronco shows a modified suspension system with red coil springs, dual steering stabilizers, and a heavy-duty d… 1992 Ford Bronco - The front end of a lifted 1992 Ford Bronco is shown, fitted with a large chrome bull bar and auxiliary lights. A trailer is partially visib…
