Radius Arm C-bushings and hardware

From 1992 Ford Bronco “Big '92”, documented by Jeremy Millrood.

17 photos
← Back to this vehicle

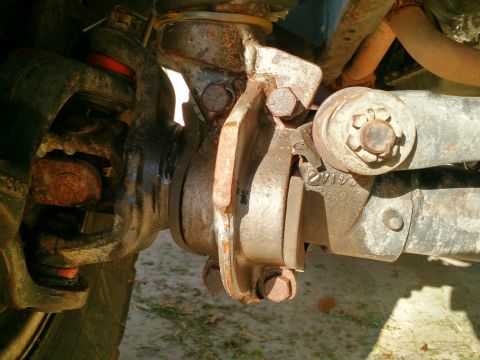

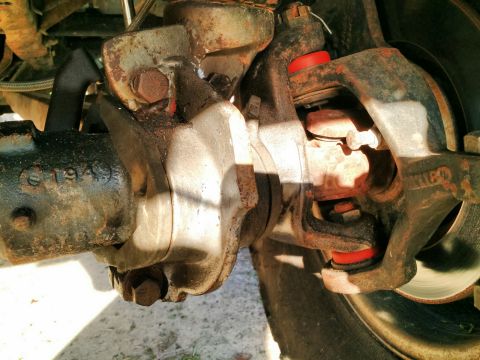

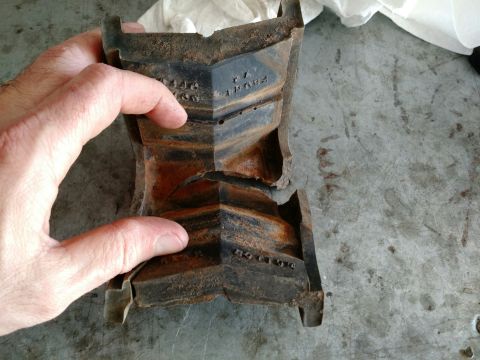

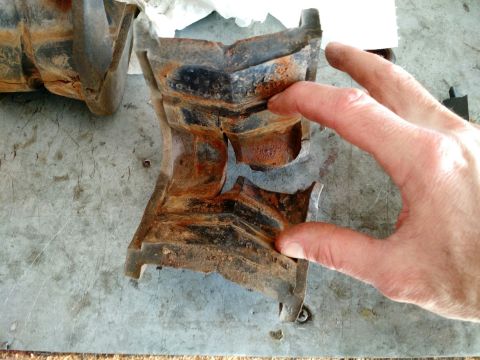

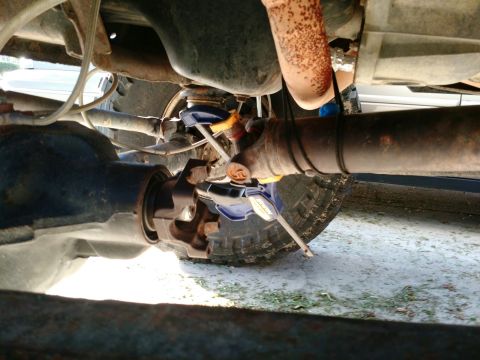

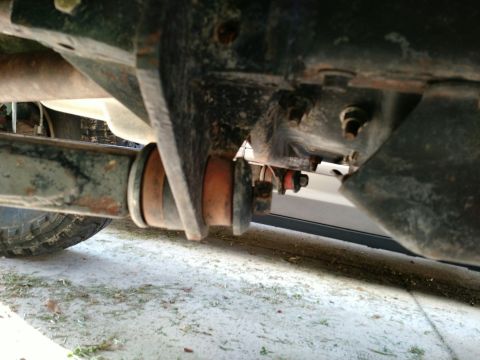

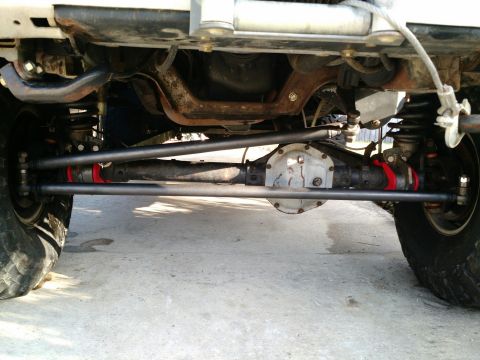

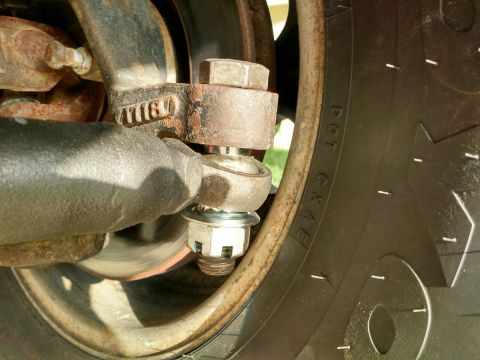

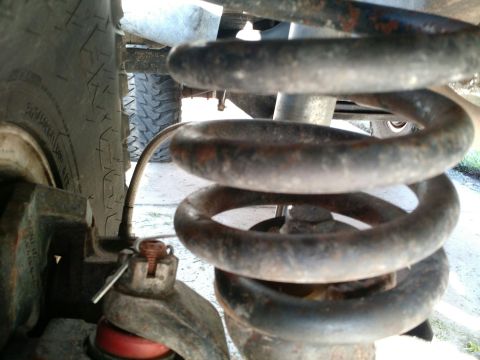

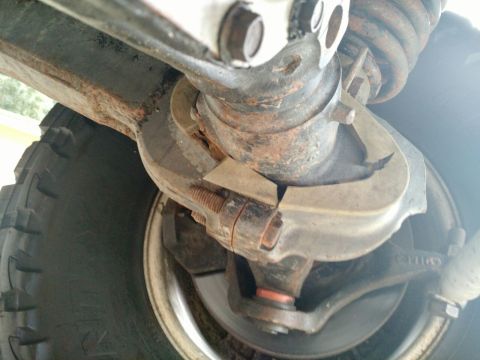

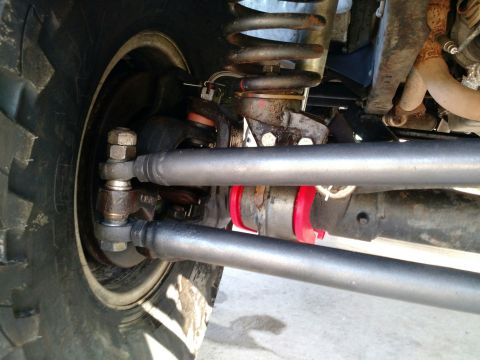

1992 Ford Bronco - This is a close-up, low-angle shot of the front suspension and tire of a 1992 Ford Bronco. The image shows significant rust on the suspensi… 1992 Ford Bronco - A close-up, low-angle view of the underside of a vehicle, showing the suspension components including a rusted metal bar with orange bushin… 1992 Ford Bronco - The underside of a vehicle shows the rear differential, driveshaft, and exhaust pipe. Two blue and yellow clamps are attached to the drives… 1992 Ford Bronco - A close-up view of the heavily rusted front suspension components of a 1992 Ford Bronco. The image shows the ball joint assembly, tie rod e… 1992 Ford Bronco - A close-up view of the rusted suspension components and brake rotor of a vehicle, possibly a 1992 Ford Bronco based on owner context. The i… 1992 Ford Bronco - A close-up, low-angle view of the front suspension of a 1992 Ford Bronco, focusing on the coil spring and surrounding components. The image… 1992 Ford Bronco - A hand holds a broken, rusty, black metal part with embossed text that appears to be from a vehicle. The part is shaped like a bracket or s… 1992 Ford Bronco - A heavily rusted and broken metal part is held by a person's hand. The part appears to be a component from a vehicle's exhaust or suspensio… 1992 Ford Bronco - Old rubber c-bushings (7 degree). These were completely split in half. 1992 Ford Bronco - Radius arm cap bolt kit from Wild Horses. This was intended for the earlier Broncos but works on the '78 or '79 axles as well. The bolts ar… 1992 Ford Bronco - Bolt kit laid out. 1992 Ford Bronco - new radius arm cap bolts installed. did not use loctite, 1992 Ford Bronco - Front suspension and steering parts of a Ford Bronco, showing tie rods and coil spring. 1992 Ford Bronco - This photo shows the steering and suspension components of a vehicle's front axle, including the differential and tie rods. 1992 Ford Bronco - New steering linkage hardware for the tie rod and drag link, clearance and spacer shims from Bulletproof steering. Stuff is not inexpensive… 1992 Ford Bronco - A close-up view of a rusty suspension component, likely a ball joint or tie rod end, secured with a castle nut and cotter pin. 1992 Ford Bronco - 7 degree c-bushings from energy suspension. I've got about 3.5 degrees of caster. not nearly enough for the solid axle. this should correct…
