Steering linkage

From 1992 Ford Bronco “Big '92”, documented by Jeremy Millrood.

12 photos
← Back to this vehicle

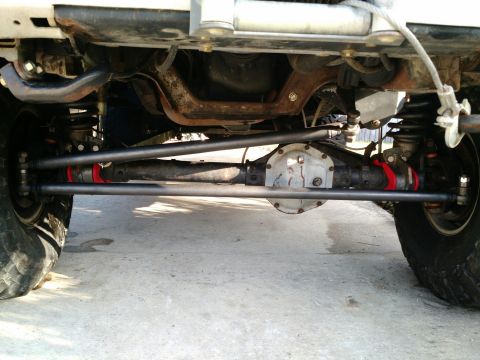

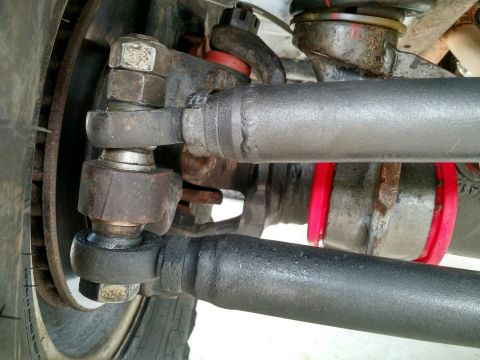

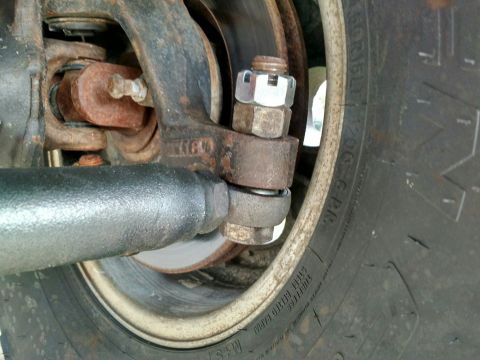

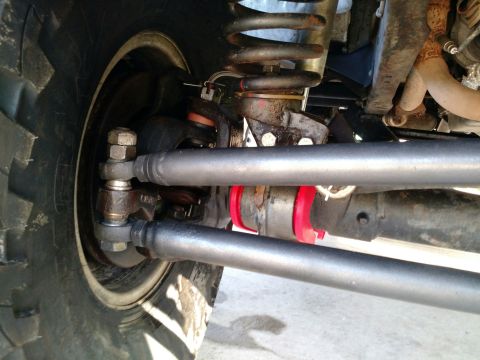

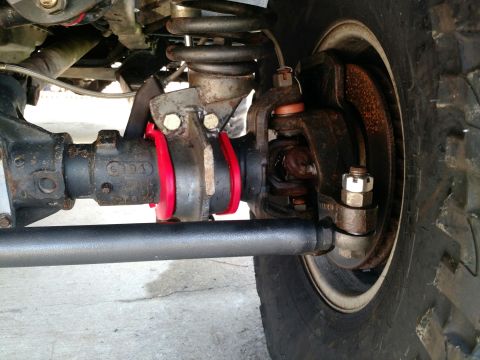

1992 Ford Bronco - This image shows the steering linkage and suspension of a vehicle, not a 1992 Ford Bronco. 1992 Ford Bronco - Close-up view of a vehicle's steering linkage, prominent tie rods and red bushings, with a portion of a large tire visible. 1992 Ford Bronco - Close-up of a vehicle's steering and suspension components, focusing on the front axle and linkage. 1992 Ford Bronco - This photo shows the intricate details of a vehicle's steering linkage system, including tie rods and ball joints. 1992 Ford Bronco - Close-up view of corroded steering linkage components, including a tie rod end and nut, next to a tire. 1992 Ford Bronco - New rod ends from Ruff Stuff, cost about $19 a piece. These are 3/4 x 3/4 16. Got both left and RH thread. Units seem well made for the pri… 1992 Ford Bronco - A steering linkage part is shown with shipping information from RuffStuff Specialties. 1992 Ford Bronco - old rod end. These were completely worn out, but served me pretty well for 10 plus years. 1992 Ford Bronco - old rod ends removed..like anything else, the last one for the tie rod was a real pain to get out. a couple were pretty well rusted inside… 1992 Ford Bronco - A close-up view of the front suspension and steering components of a vehicle, showing tie rod ends, a steering stabilizer, and part of the… 1992 Ford Bronco - A close-up view of the steering linkage on a vehicle, showing a tie rod end connected to a steering knuckle, with a tire and brake rotor vi… 1992 Ford Bronco - Close-up view of the steering linkage components on a 1992 Ford Bronco, showing a tie rod end connecting to a steering arm and the differen…
