Trackbar mount - axle

From 1992 Ford Bronco “Big '92”, documented by Jeremy Millrood.

8 photos
← Back to this vehicle

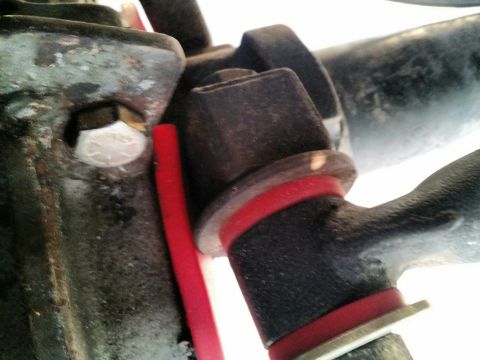

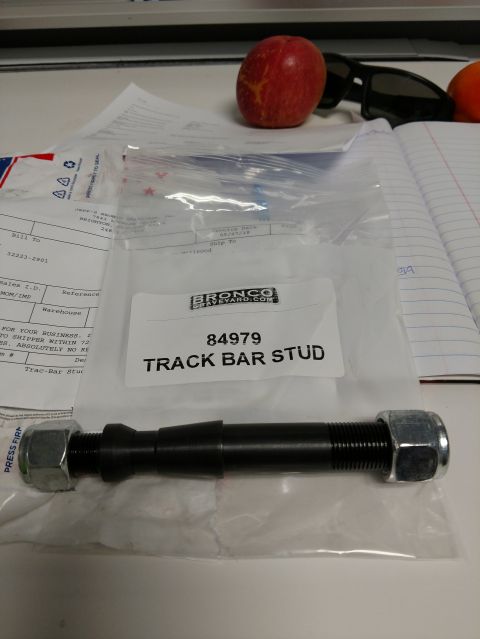

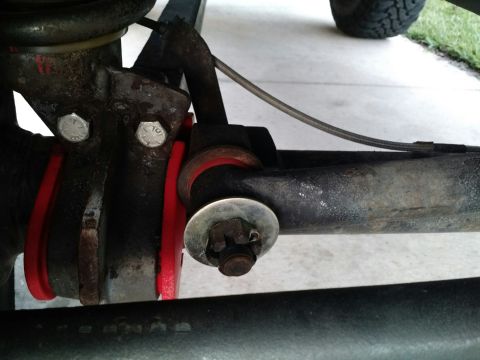

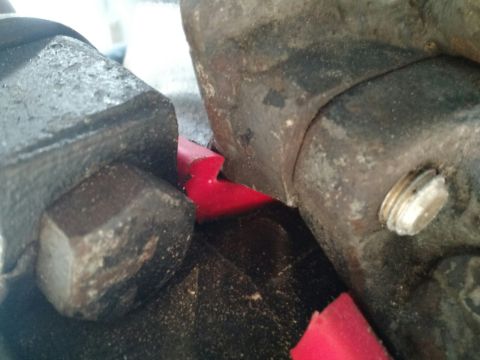

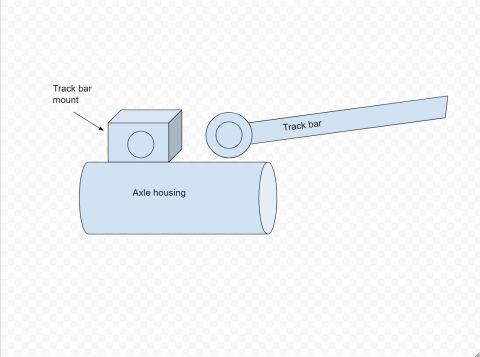

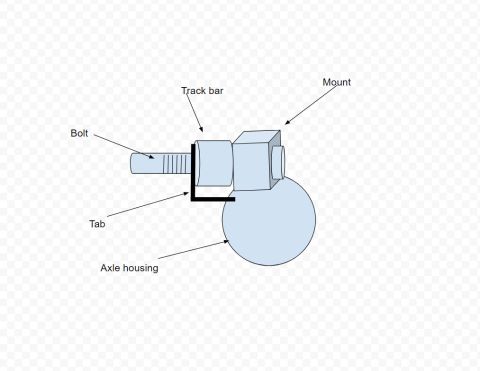

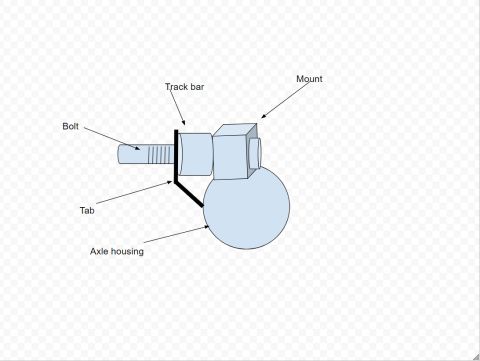

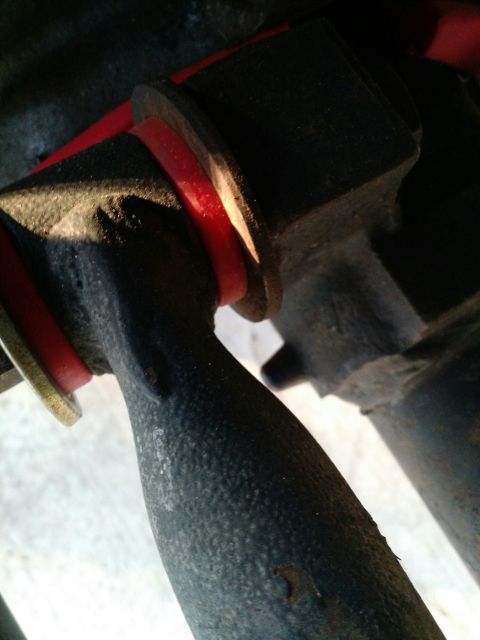

1992 Ford Bronco - A close-up view shows a black suspension component with red accents, secured by a bolt. A bright red wire or hose is visible next to a rust… 1992 Ford Bronco - Extreme close-up of a black suspension arm end fitted with red polyurethane bushings and a black bolt head. 1992 Ford Bronco - A close-up view shows a bright red wedge-shaped object inserted between two heavily rusted metal components. One component has a hexagonal… 1992 Ford Bronco - trackbar mount at axle. this can be a problem area if the hole in the axle mount gets wallered out. There is a repair kit that can be purch… 1992 Ford Bronco - Track bar stud repair kit from Bronco Graveyard. A 10 degree reamer is needed to make the hole the correct size for the new stud. 1992 Ford Bronco - Simple schematic illustrating a track bar, track bar mount, and axle housing and how they relate. 1992 Ford Bronco - Simple schematic showing a track bar mount with bolt, tab, and axle housing and how the parts fit together. 1992 Ford Bronco - Simple schematic of a track bar mount, bolt, reinforcement tab, and axle housing showing the assembly relationship.
