Floor Console & Shifter

From 2016 Ford Explorer “PIU” — documented by Steve83.

11 photos
← Back to this vehicle

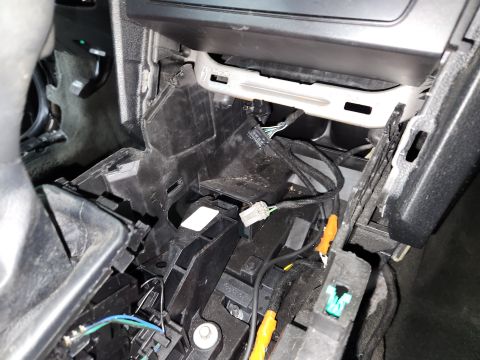

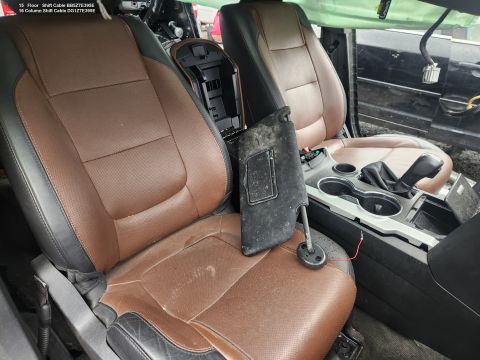

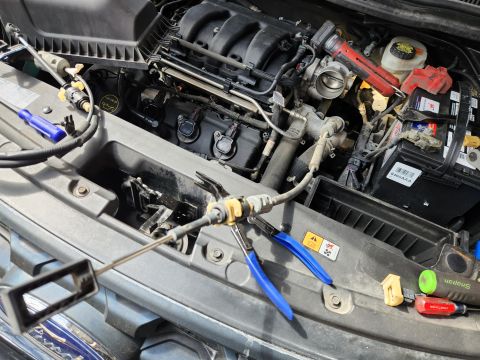

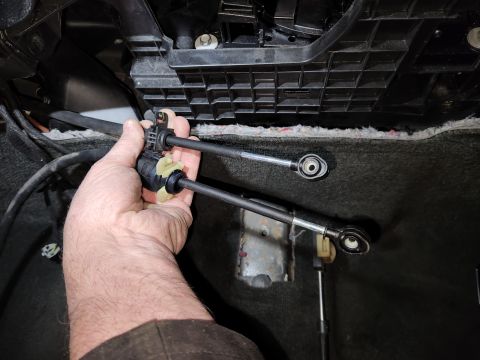

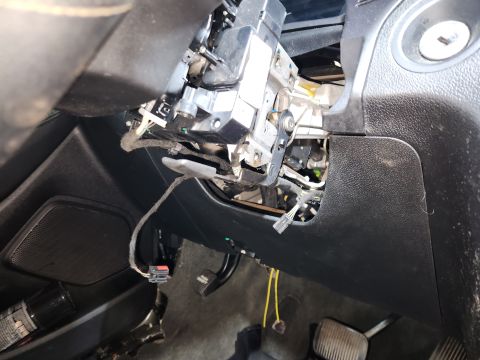

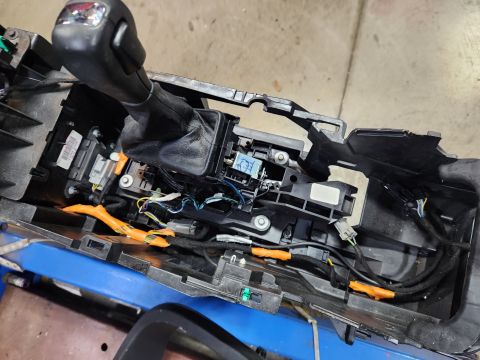

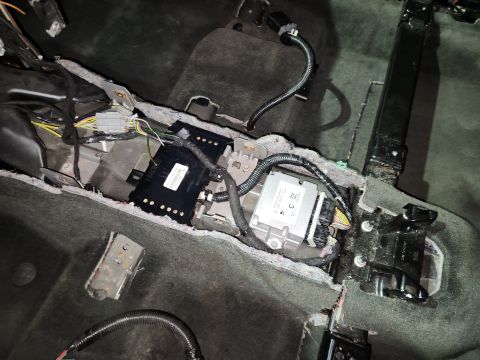

2016 Ford Explorer - This '15 Explorer Limited was T-boned in the RHR door, so most of its interior was intact. A previous customer removed the rear seats & but… 2016 Ford Explorer - Other than a traction control knob and a tow/haul/hill descent button, this console was loaded. The rear HVAC control had been taken, but I… 2016 Ford Explorer - This collects all the circuits in the floor console into 1 diagram. IF THE IMAGE IS TOO SMALL, click it. 2016 Ford Explorer - I hate the way the column shifter moves, so its 3 T30 bolts & 2 connectors came out first. Unfortunately, I couldn't swap to the non-shifte… 2016 Ford Explorer - Then ends are too different to use the column cable with the console shifter, so it's a good thing I got the cable with the console. 2016 Ford Explorer - Swapping the cables only required pulling the fresh air pipe for access to the firewall and shift lever. The front of the column cable rele… 2016 Ford Explorer - The console won't fit until the upper bracket for the PIU aux. panel is removed, but it's only held in the dash by 2 7mm screws. 2016 Ford Explorer - The console takes 2 tunnel brackets not used with the police plate. Some of the police wiring can be used to power the console, but several… 2016 Ford Explorer - The sheer quantity of wires in the console's main connector looks overwhelming. But once organized by function, it becomes very manageable.… 2016 Ford Explorer - The column-shift wires were cut in the dash harness and extended through to the right side of the console where its connector is. IF THE IM… 2016 Ford Explorer - The console now has enough wiring connected for the front seats to be installed. A [url=https://3dub200.com/collections/ford-explorer/produ…
