SAS REDONE

From 1995 Ford Bronco “Project X”, documented by Biggie_Truck.

8 photos
← Back to this vehicle

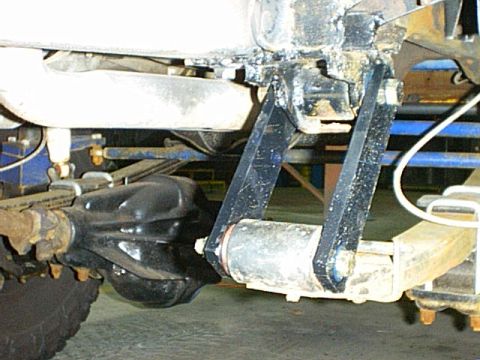

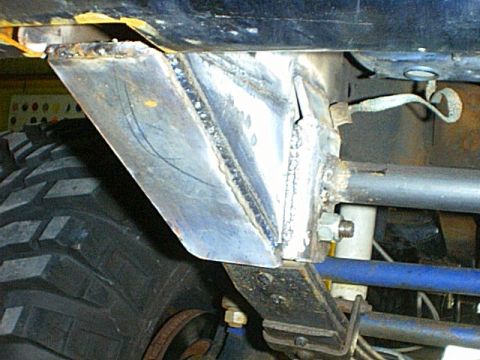

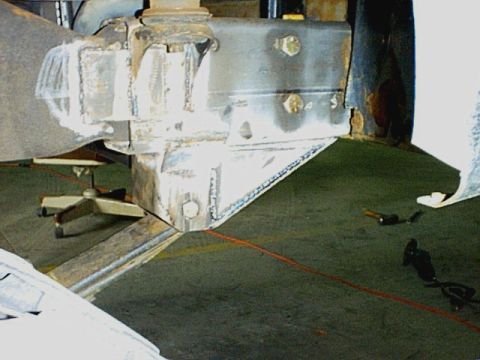

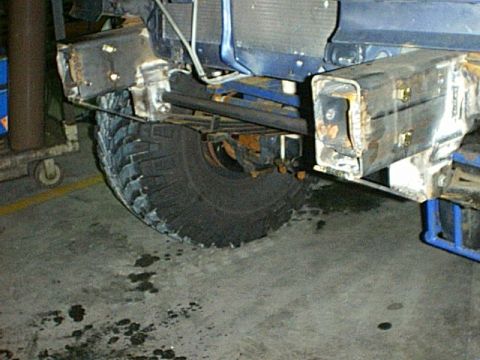

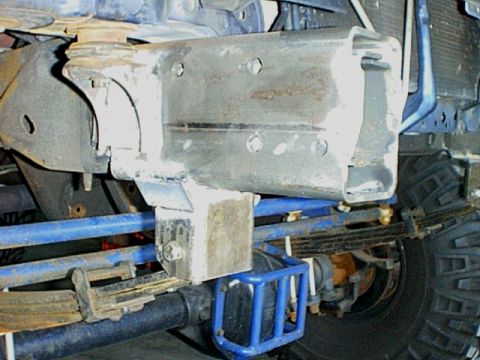

1995 Ford Bronco - I decided to redo my SAS to withstand the added stresses that will be caused with my new m12000 winch. The "crumple zone" will no longer be… 1995 Ford Bronco - Underside view of a hollow rectangular steel frame section or crossmember with fresh weld beads visible along its edges, showing interior s… 1995 Ford Bronco - Close-up underside view of a bare metal frame section showing welded reinforcement plating, with visible weld beads at a boxed and braced b… 1995 Ford Bronco - Underbody shot of a truck/SUV chassis showing a large white-painted bracket or crossmember bolted to the frame, with blue-painted suspensio… 1995 Ford Bronco - Welded and bolted. Bolts are going to be used for a custom winch mount. 1995 Ford Bronco - I decided to box up the front spring hangers for added support and shear strength. 1995 Ford Bronco - Close-up of a truck frame rail end reinforced with bare-metal boxing plates, showing fresh weld beads along the plate seams and bolts throu… 1995 Ford Bronco - I lowered the front hanger bolts about 1 inch then made these shackles to even things out. They are longer than before, a little thicker an…
