On Board Air

From 1996 Ford Bronco, documented by EricKramer.

14 photos
← Back to this vehicle

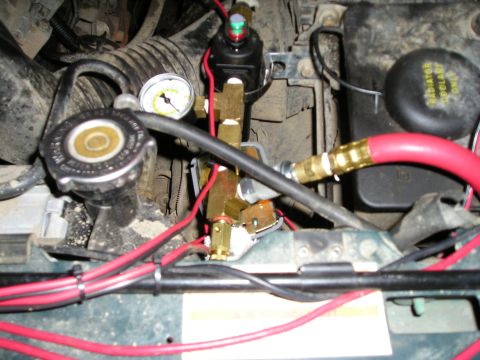

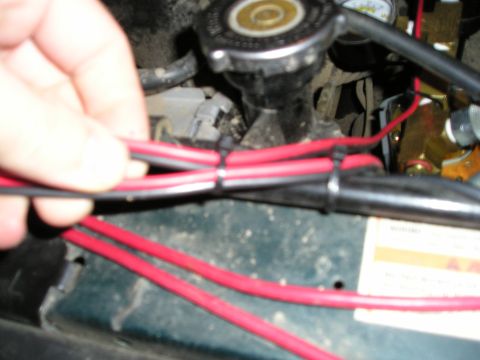

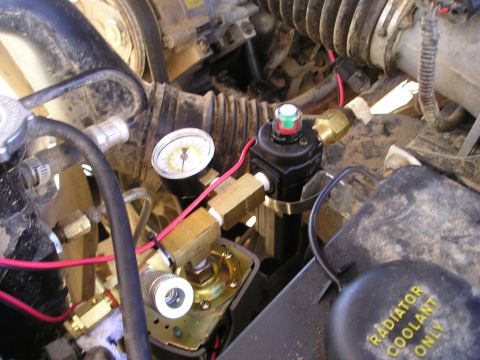

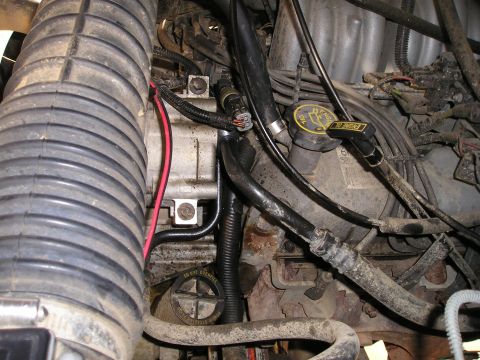

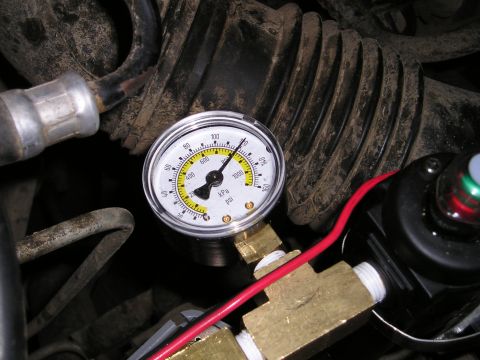

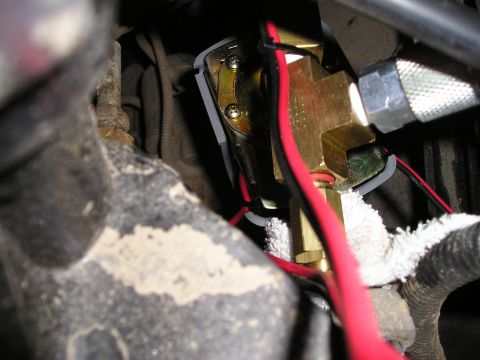

1996 Ford Bronco - Cut too much of the AC hose off. 1996 Ford Bronco - Tight engine-bay detail of a fuel-injected Ford V8 showing the ribbed black intake air tube at left, the power steering reservoir cap readi… 1996 Ford Bronco - Output systems. The part #s listed are for Grainger. Top to bottom going down and across to the lower left: Colessing filter(4ZL23), gauge,… 1996 Ford Bronco - Compressor harness cut and wired, with wires running to the pressure switch and then to the battery. 1996 Ford Bronco - Tight close-up under the hood of a dusty engine bay showing a black filter or air-dryer canister mounted to a bracket, capped with a clear-… 1996 Ford Bronco - Intake system. Left to right: Ricer air filter and lubricator (4ZL64). 1996 Ford Bronco - Close-up of an onboard air system plumbed under the hood, with brass fittings, a quick-disconnect coupler and a yellow coiled CAUTION-marke… 1996 Ford Bronco - Runs at a max of 120 psi. 1996 Ford Bronco - Blurry close-up of a gold zinc-plated round mechanism with a square center opening and screwed-on plate, set in a gray housing with red wir… 1996 Ford Bronco - Tight engine-bay close-up of a brass tee fitting stack with a black-bodied pressure switch bolted to it, wired with red and black leads rou… 1996 Ford Bronco - Close-up of a hand holding a bundle of red and black wiring routed across a dark engine bay, with the runs bound together by black zip ties… 1996 Ford Bronco - Red Optima sealed AGM battery mounted in a grimy engine bay, held down by a blue strap, with added red and black power leads, a heat-shrunk… 1996 Ford Bronco - Leader hose. 1996 Ford Bronco - Close-up under the hood showing a brass air manifold with pressure gauge, solenoid valve and quick-disconnect fitting on a red air line, mo…
