Mini-Spool Install

From 1995 Ford Bronco, documented by ogeechee4x4.

21 photos
← Back to this vehicle

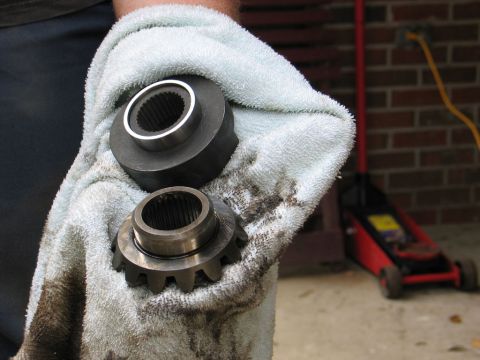

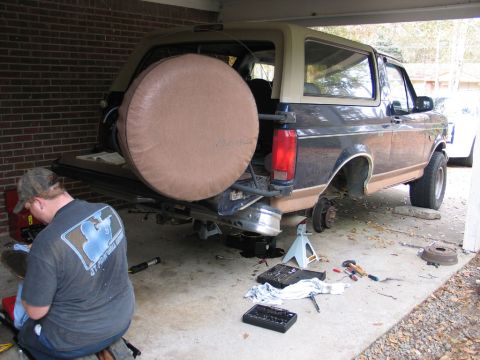

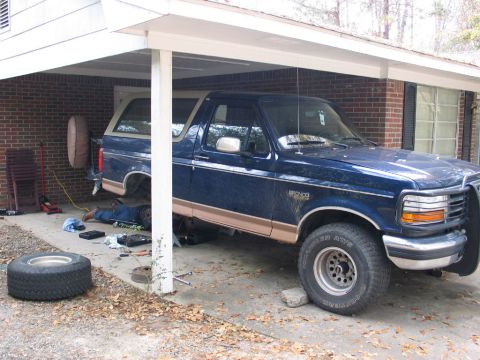

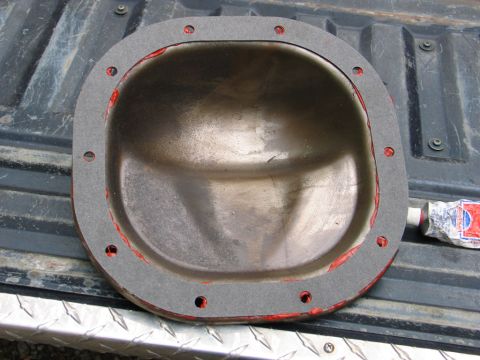

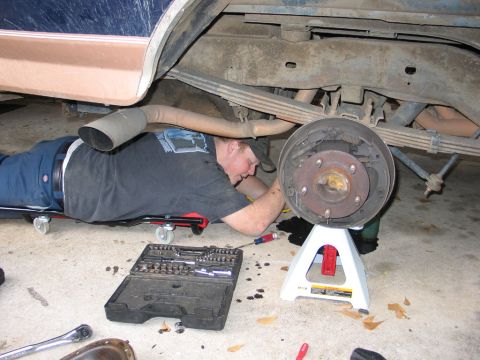

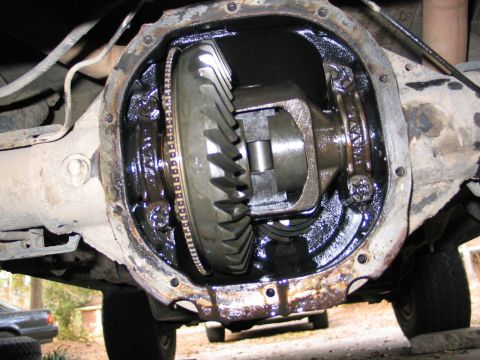

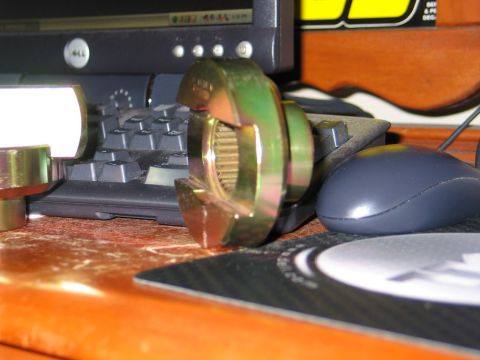

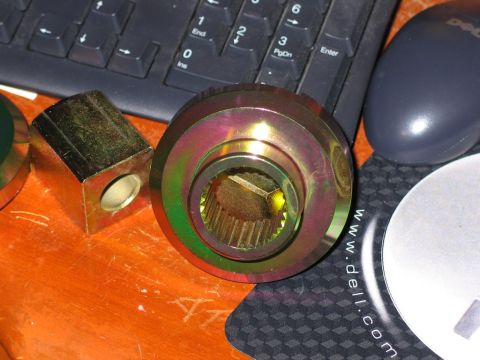

1995 Ford Bronco - what is included in the Auburn Mini Spool kit 1995 Ford Bronco - Rear end on jack stands 1995 Ford Bronco - remove the both rear tires 1995 Ford Bronco - remove the drums 1995 Ford Bronco - remove the diff cover, and catch as much fluid as you can to reduce the clean-up afterwards 1995 Ford Bronco - I sorta missed my catch can 1995 Ford Bronco - remove the side gears and the pinion gears 1995 Ford Bronco - my pops removing the old gasket from the cover 1995 Ford Bronco - comparison of a side gear and the mini spool side gear 1995 Ford Bronco - I had to grind a small bit off each C-clip for them to fit with the mini-spool installed 1995 Ford Bronco - It would have been nicer to have a bit more room to work 1995 Ford Bronco - the assembled rear diff with the mini spool installed 1995 Ford Bronco - installed a new gasket and with some high-temp silicone (it's all i had on hand) 1995 Ford Bronco - my workspace...it's a little cramped in the carport with my big ole bronco in there 1995 Ford Bronco - here's another view 1995 Ford Bronco - Close-up of an oval yellow 'Auburn Gear, Inc. High Performance Limited Slip Differential' decal applied to a vehicle's rear quarter window,… 1995 Ford Bronco - Close-up of an oval Auburn Gear, Inc. decal with an orange background, featuring a cartoon muscular figure whose torso is a differential ru… 1995 Ford Bronco - I never did get around to reading this....maybe i should have? Guess time will tell.... 1995 Ford Bronco - Close-up of a gold zinc-plated differential spool with internal splined gear teeth and a center hex nut, resting on a wooden desk beside a… 1995 Ford Bronco - A gold zinc-plated differential spool (Richmond Gear-style) sitting on a wooden desk, with a threaded pin/plug visible on its side. A CRT m… 1995 Ford Bronco - Close-up of a gold zinc-plated splined differential spool (Richmond Gear) resting on a wooden desk in front of a computer keyboard, monitor…
