Extended vent lines

From 1995 Ford Bronco “Big Pig”, documented by pepper.

6 photos
← Back to this vehicle

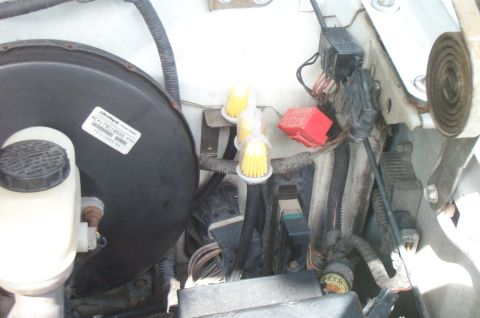

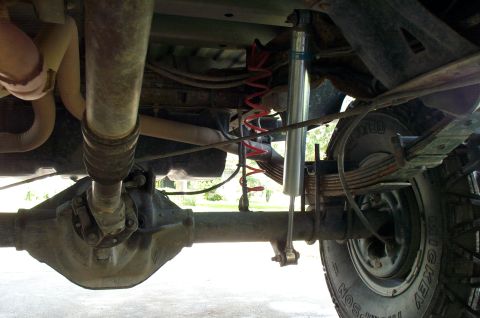

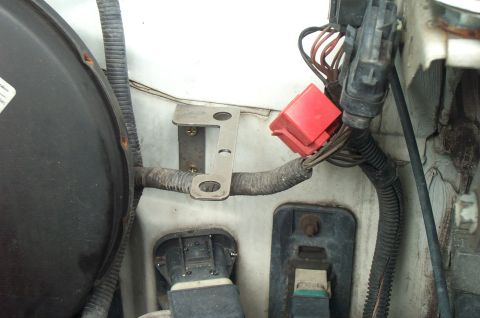

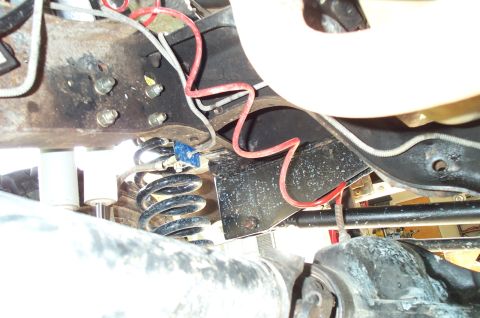

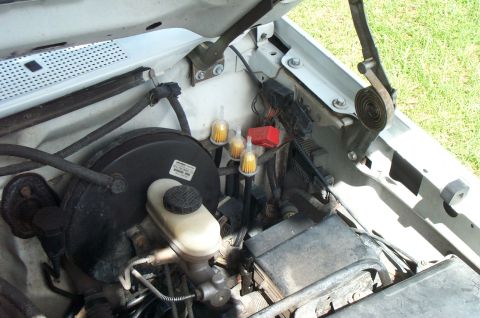

1995 Ford Bronco - VW in-line fuel filters 1995 Ford Bronco - Tie-rod adjusting sleeve retainer that I drilled some holes in and bent to make a mounting bracket. 1995 Ford Bronco - Put the filter through the top and sandwiched the mount with 1/4" fuel line. 1995 Ford Bronco - The back one goes to the rear axle, the middle one goes to the T-case, and the front one goes to the front axle. 1995 Ford Bronco - Coiled air line connects to the frame, and to the 1/4" fuel line, which then runs up to the filters. 1995 Ford Bronco - Rear axle.
