MSD offroad ignition + Coil install

From 1995 Ford Bronco “B'co”, documented by TRUCKY18.

14 photos
← Back to this vehicle

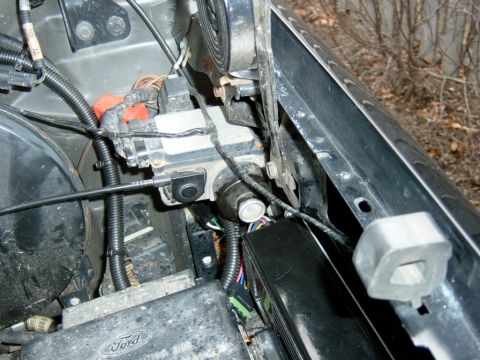

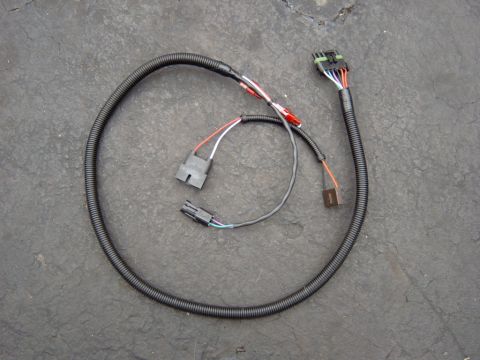

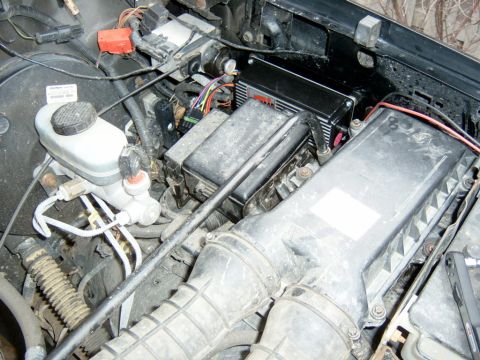

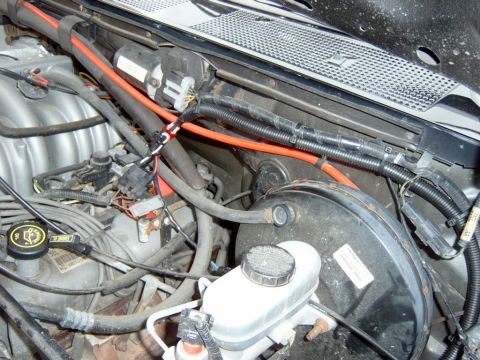

1995 Ford Bronco - The old coil before removal. 1995 Ford Bronco - The future home of the new coil, a bit on the rusty side. 1995 Ford Bronco - Old vs. the new. 1995 Ford Bronco - New Blaster TFI coil hooked up and ready to go, gotta love easy installs, 20min tops half of that spent trying to find something to stand o… 1995 Ford Bronco - Soon to be added, water-proof and vibration resistant, also has a plug for MSD’s off-road ignition limiter. 1995 Ford Bronco - I also bought the wiring harness so I could easily convert back to stock; you never know what could happen. 1995 Ford Bronco - The new home of the ignition, on the driver’s side fender right next to the factory distribution box. The ignition came with 4 little rubbe… 1995 Ford Bronco - Mounted snugly in its new home, there’s about ¾” of space between it and the dist. box. 1995 Ford Bronco - Another shot just for perspective. 1995 Ford Bronco - The wiring harness all ready to go in. 1995 Ford Bronco - The wiring harness in place and zip-tied to an existing wire loom, you can hardly tell I added it. 1995 Ford Bronco - There was a bit extra, but it’s easily hidden, along with all the connectors which are water tight. 1995 Ford Bronco - I had to splice the power connections to make them long enough to reach the battery, and I ran them along the top of the radiator along the… 1995 Ford Bronco - Everything all wired up and ready to go, one of these days I will clean my engine.
