New Axle Trussing 4-2004

From 1994 Ford Explorer “Girlpower 4x4”, documented by Annies4x4.

13 photos
← Back to this vehicle

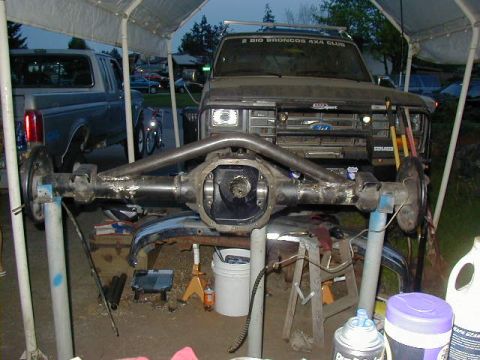

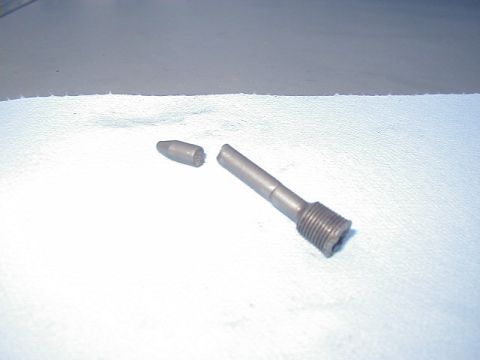

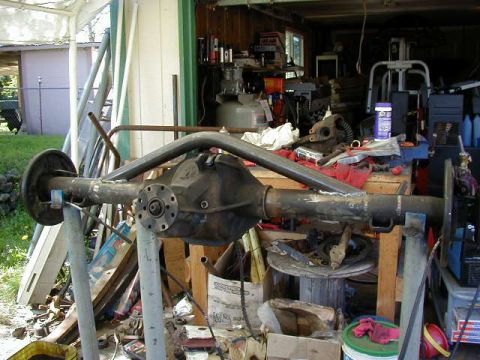

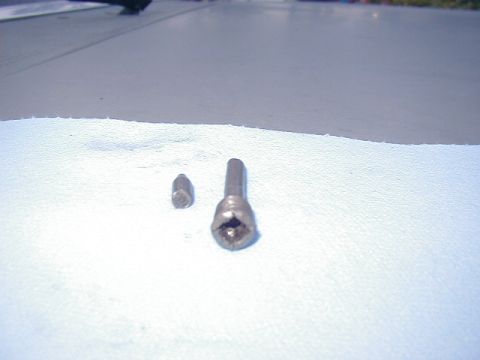

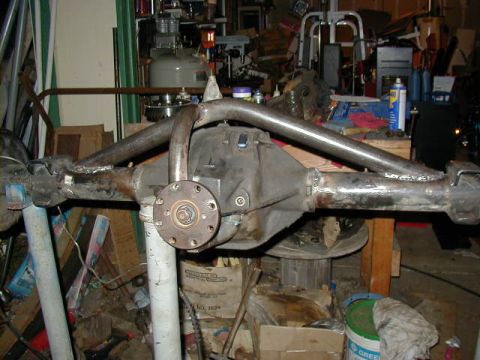

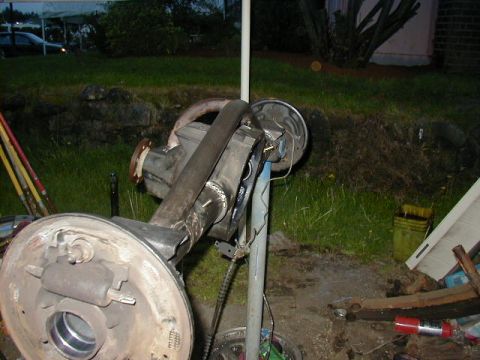

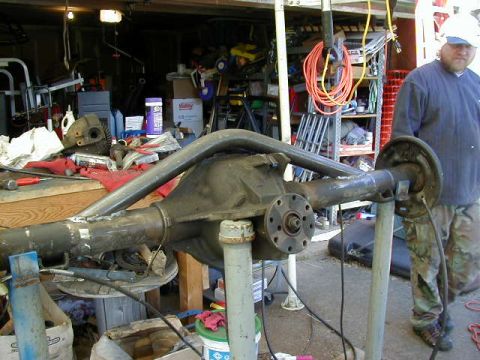

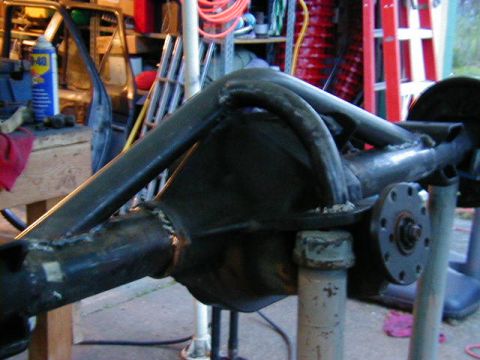

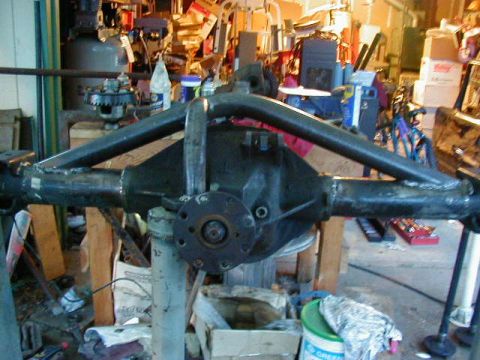

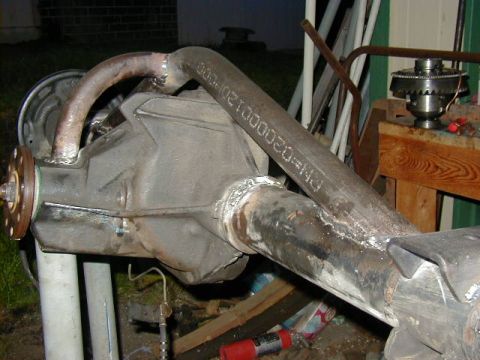

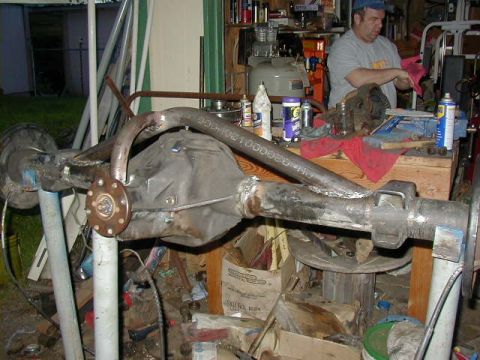

1994 Ford Explorer - The first truss welded in place, Thanks to Bob K. 1994 Ford Explorer - Another shot of the first truss, I think this is going to look good! 1994 Ford Explorer - The first roadblock we encountered when taking out the ARB to put into the new axle. The pin was broken. Hard telling how long it had been… 1994 Ford Explorer - The head of the pin was shattered making it extremly difficult to remove, but with Bob K's expertise, determination, a few broken tools and… 1994 Ford Explorer - The second truss now welded into place 1994 Ford Explorer - I have a feeling this axle will probably be stronger and out-live the rest of my Explorer now. 1994 Ford Explorer - Beefy! 1994 Ford Explorer - A black rear axle assembly (differential housing with axle tubes and a mounted brake/wheel hub flange) supported on stands in a cluttered g… 1994 Ford Explorer - A rear axle assembly removed from a vehicle, propped up outdoors on a grassy lawn at dusk, showing the differential housing in the center a… 1994 Ford Explorer - Bare axle housing propped up outdoors at night with a freshly welded bent-tube truss over the cast differential center section; raw weld be… 1994 Ford Explorer - A bare rear axle housing with fabricated tubular trailing-arm links welded to it, mounted on a jack stand inside a cluttered garage or shop… 1994 Ford Explorer - Bob rerouted the ARB line to the left side instead of over the top like before. 1994 Ford Explorer - Rerouting of the ARB line
