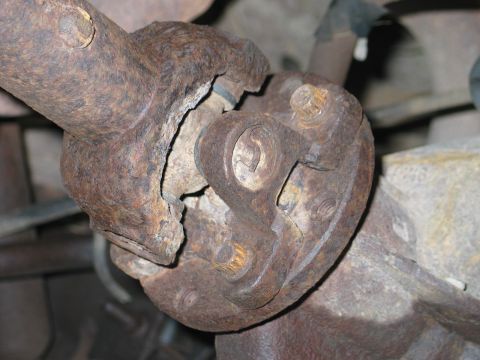

IMG_2787.JPG 880 hits | 57.09 KB | Posted: 9/25/04 Remove the 4 bolts from the rear axle using a 12mm or 1/2" 12 point socket or wrench.

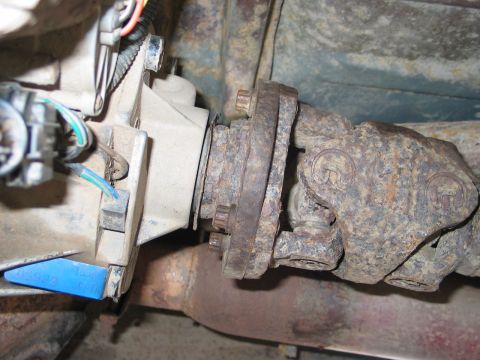

IMG_2788.JPG 829 hits | 64.78 KB | Posted: 9/25/04 Remove 4 bolts from transfer case using a 12mm or 1/2" wrench. You will not be able to remove the bo...

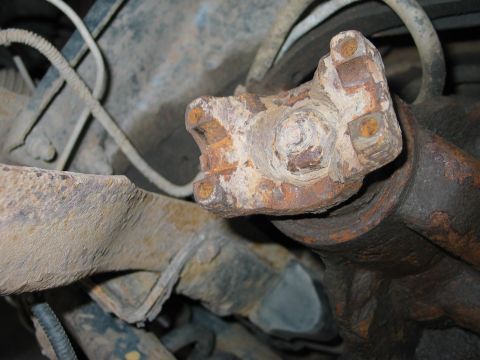

IMG_2790.JPG 790 hits | 56.56 KB | Posted: 9/25/04 Remove the front driveshaft.Take the 4 nuts off the t-case yoke and the 4-nuts of the yoke on the fr...

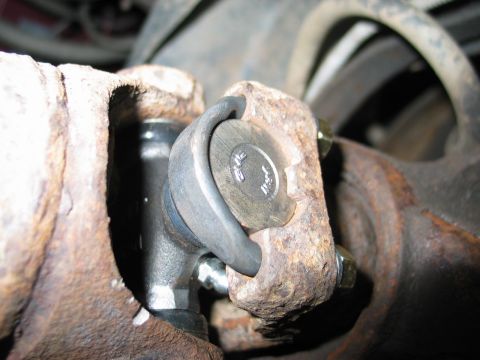

IMG_2820.JPG 846 hits | 51.92 KB | Posted: 9/25/04 In some instances, it may be necessary to cut the u-bolts with a grinder. It is best to cut them so ...

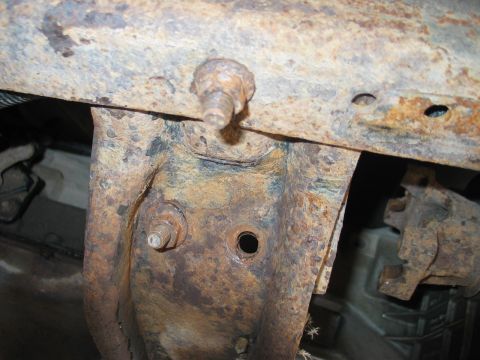

IMG_2792.JPG 845 hits | 61.44 KB | Posted: 9/25/04 Remove the x-member bolts. Using an impact gun or breaker bar will make this much easier. 3 bolts on...

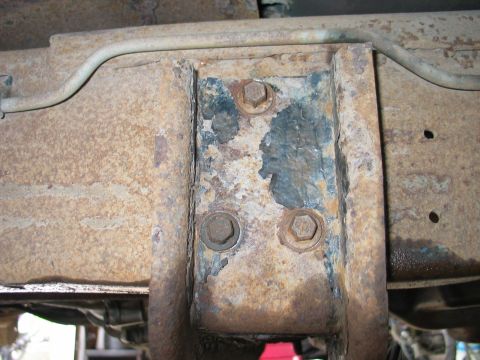

IMG_2793.JPG 792 hits | 68.38 KB | Posted: 9/25/04 3 bolts on passenger side used a 15mm socket

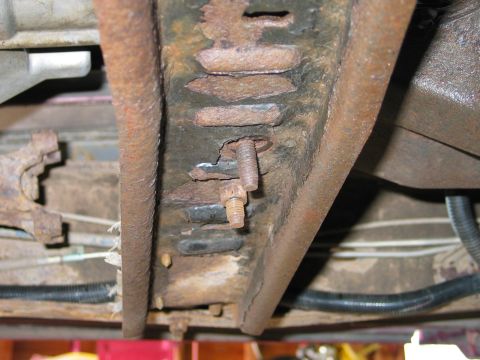

IMG_2794.JPG 822 hits | 60.57 KB | Posted: 10/8/04 Remove the 2 center bolts on the cross member using an 11/16" socket.

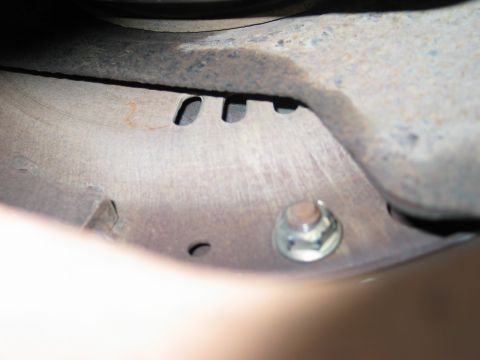

IMG_2816.JPG 912 hits | 34.25 KB | Posted: 10/8/04 Remove the torque converter bolts. I think there are five nuts holding the converter to the flexplat...

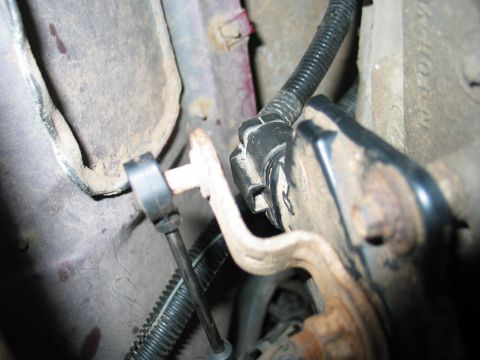

IMG_2808.JPG 910 hits | 51.64 KB | Posted: 10/8/04 Remove the black plug on the drivers side of the tranny. Pull the round linkage end off for the shif...

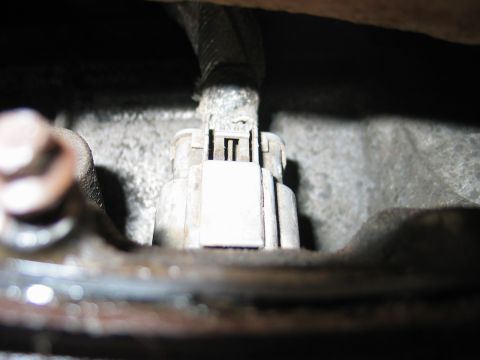

IMG_2809.JPG 827 hits | 33.9 KB | Posted: 10/8/04 Remove the plug on the passenger's side of the tranny.

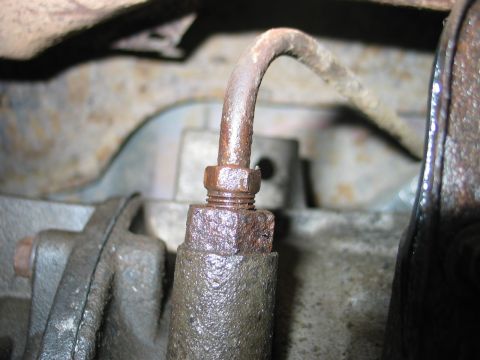

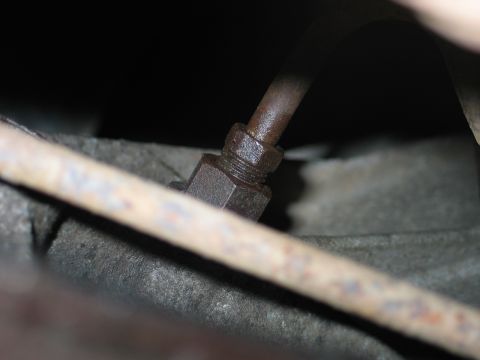

Removal Writeup
