639 hits | 49.62 KB | Posted: 12/6/04

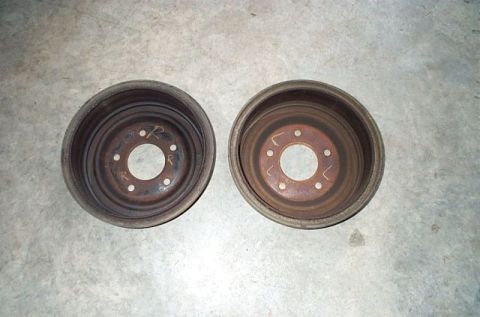

Drums prior to getting turned.

665 hits | 56.08 KB | Posted: 12/6/04

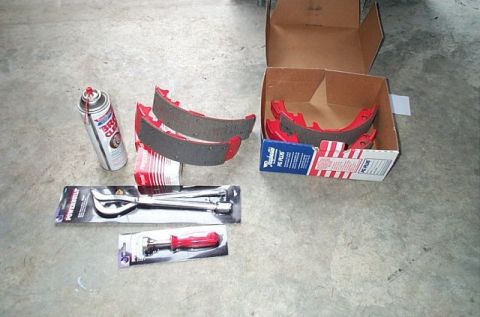

Some new parts and tools for the job. New shoes and wheel cylinders will be installed.

1352 hits | 58.15 KB | Posted: 12/6/04

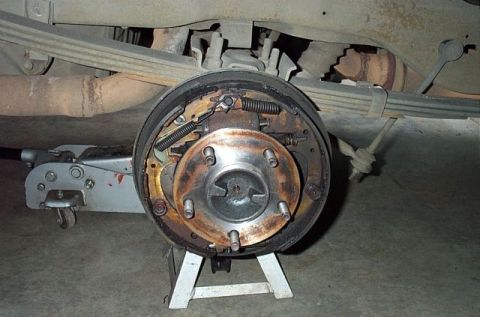

This is the right hand side. This side was saturated in gear lube due to a worn out axle that was r...

657 hits | 60.78 KB | Posted: 12/6/04

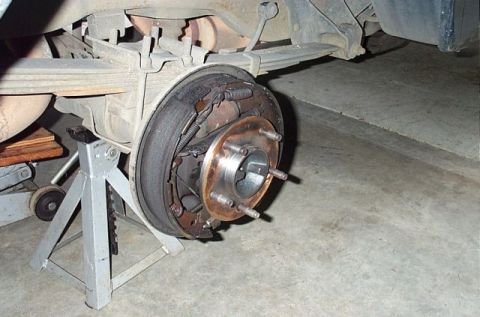

The old setup ready to come apart.

635 hits | 56.01 KB | Posted: 12/6/04

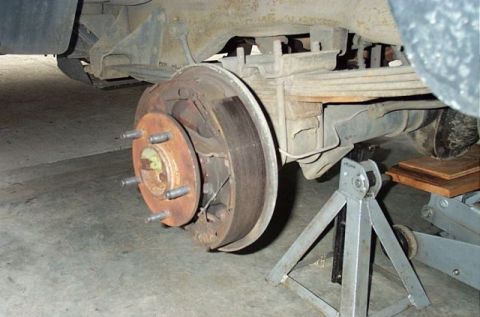

More shots of the old setup.

814 hits | 59.52 KB | Posted: 12/6/04

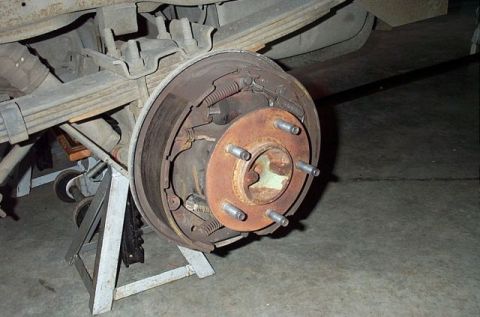

Wish I had some new steel brake lines to install but could not find any for a non-lifted application...

702 hits | 64.23 KB | Posted: 12/6/04

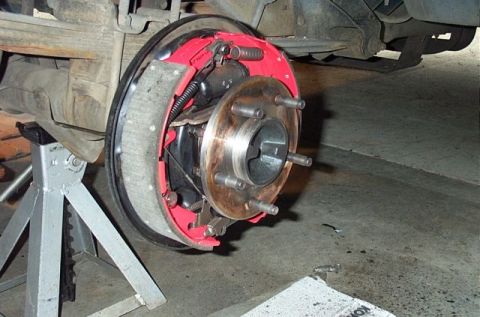

Left hand side with backing plate cleaned up, new shoes and wheel cylinder installed. All moving pa...

718 hits | 61.78 KB | Posted: 12/6/04

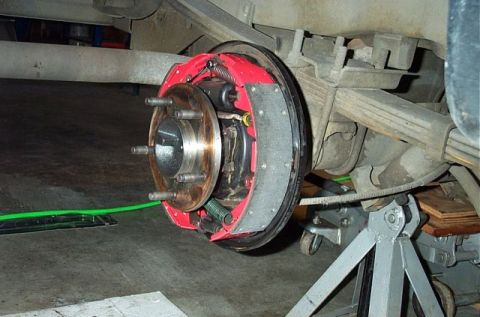

Right side cleaned up, re-assembled with new parts, ready to go back together.

630 hits | 59.85 KB | Posted: 12/6/04

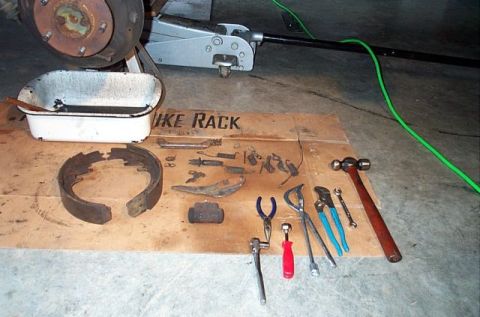

A shot of the old parts in amazingly good shape for 156,000 miles.

625 hits | 61.45 KB | Posted: 12/6/04

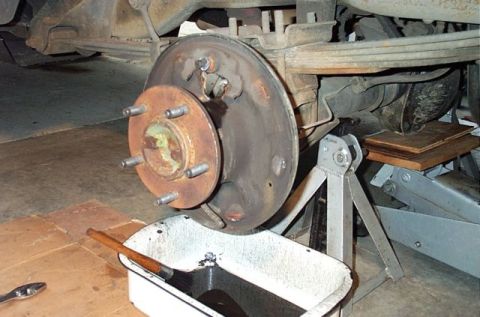

Another shot prior to cleaning everything with solvent.

699 hits | 60.58 KB | Posted: 12/6/04

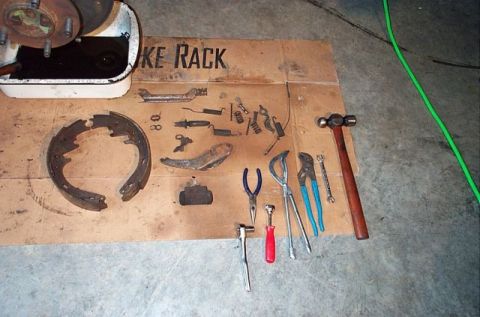

Another shot of the old, very grimy parts.

633 hits | 70.1 KB | Posted: 12/6/04
Right hand side, new parts installed, drums turned, ready to go back together.

736 hits | 60.99 KB | Posted: 12/6/04

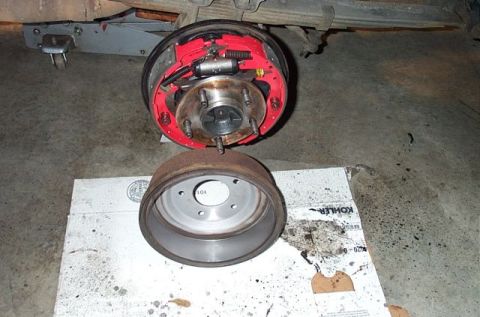

Bled the brakes, adjusted the e-brake, and test drove. Wow... what a difference in stopping power!
