Required tools. Total time for this project is 15-20 minutes.

1080 hits | 51.44 KB | Posted: 5/5/04

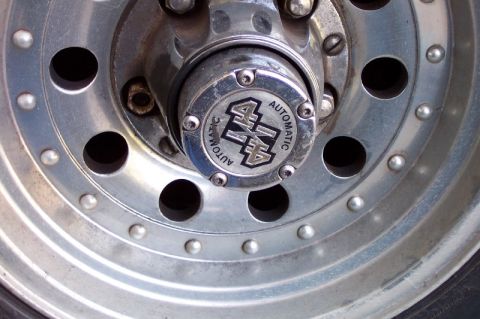

The problem--Ford automatic hub

1001 hits | 49.41 KB | Posted: 5/5/04

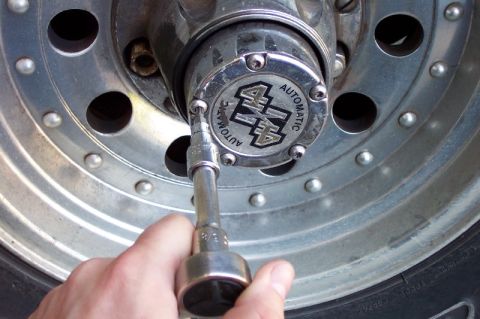

Remove screws

1058 hits | 51.73 KB | Posted: 5/5/04

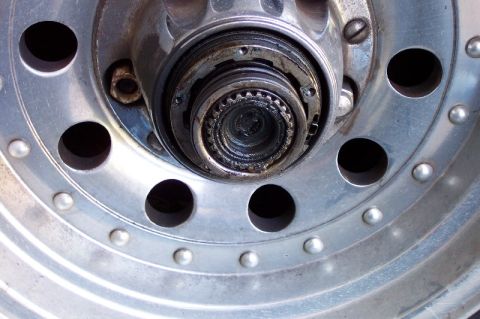

Cap removed

1060 hits | 37.66 KB | Posted: 5/5/04

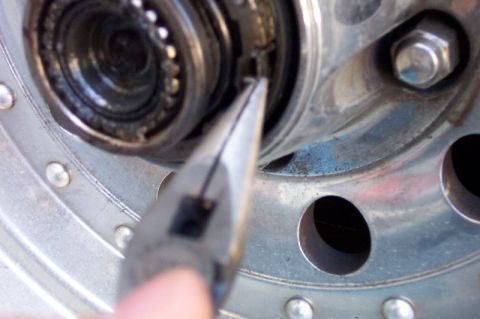

Remove this clip (yeah, the picture is blurry)

1193 hits | 41.73 KB | Posted: 5/5/04

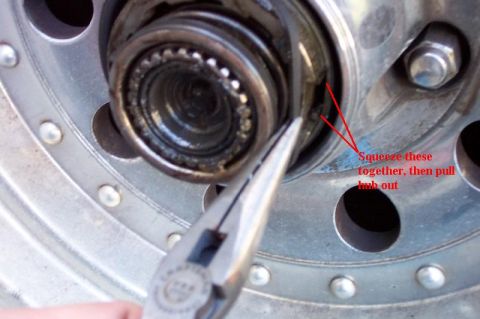

Remove the rubber seal, then squeeze the tabs together and pull the hub out

1081 hits | 43.5 KB | Posted: 5/5/04

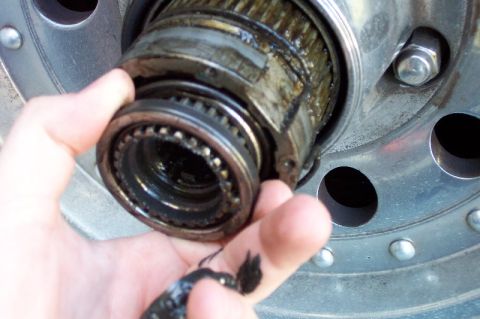

Pull the hub out

1060 hits | 49.76 KB | Posted: 5/5/04

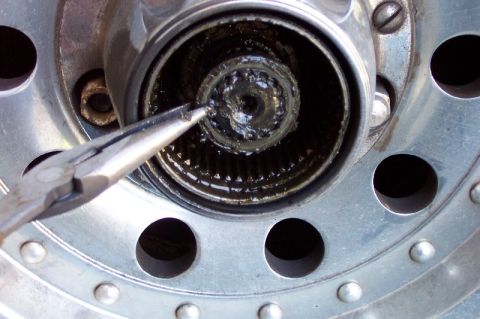

Remove the spacer

988 hits | 36.13 KB | Posted: 5/5/04

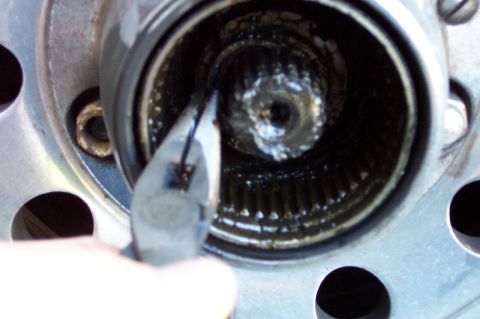

Remove the C-clip

1116 hits | 45.31 KB | Posted: 5/5/04

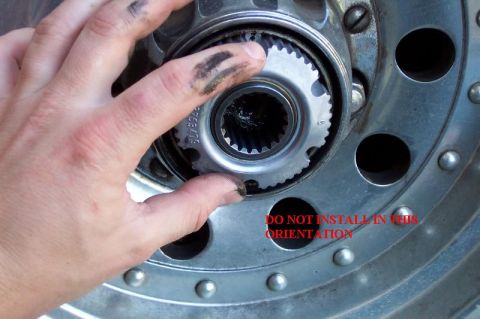

Do NOT install the new hub backwards; install it the other way

1171 hits | 61.95 KB | Posted: 5/5/04

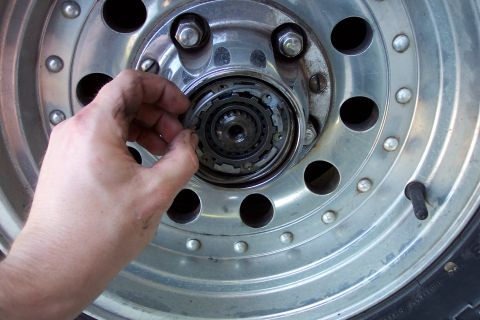

Slide the hub in, and install the large snapring in the groove

1076 hits | 50.18 KB | Posted: 5/5/04

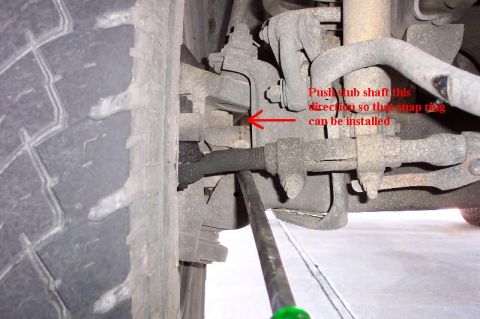

Push the stub shaft outwards so that you can install the snapring on the end of the shaft

978 hits | 36.61 KB | Posted: 5/5/04

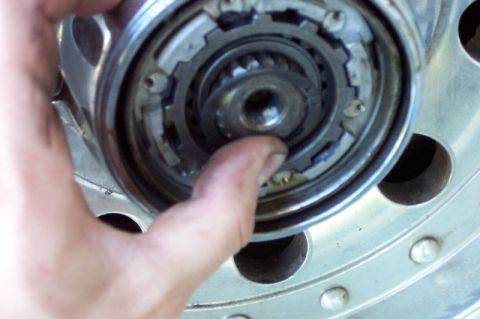

Install the small snapring on the stub shaft

961 hits | 44.53 KB | Posted: 5/5/04

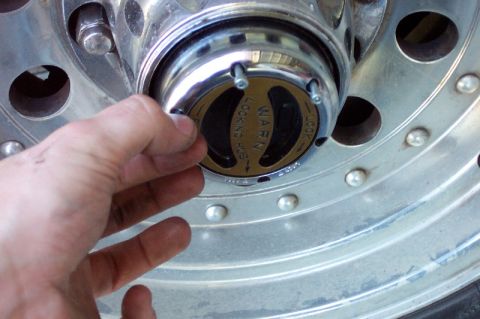

Install the cap and tighten the screws gently

1002 hits | 51.98 KB | Posted: 5/5/04

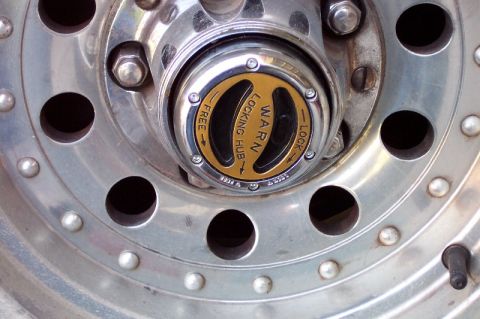

Installed

1034 hits | 59.06 KB | Posted: 5/5/04

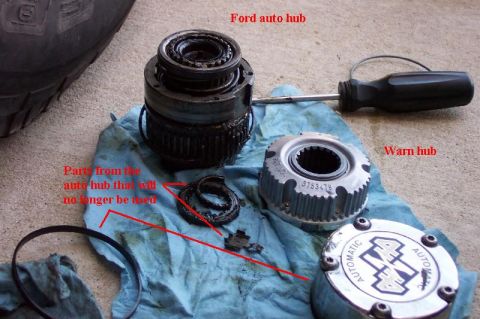

Comparison of auto hubs and manuals
