BW1356 electric motor fix

From 1992 Ford Bronco “Money pit” — documented by Richard Cherico.

7 photos
← Back to this vehicle

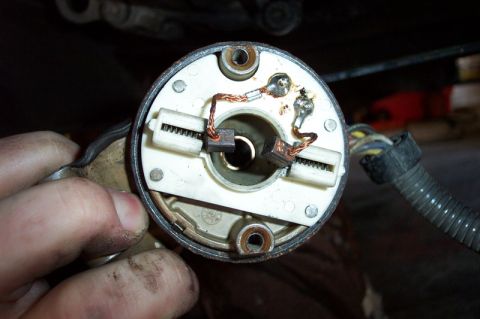

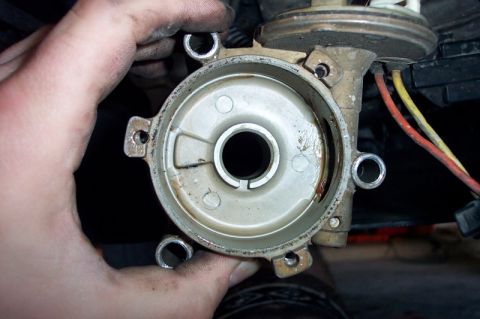

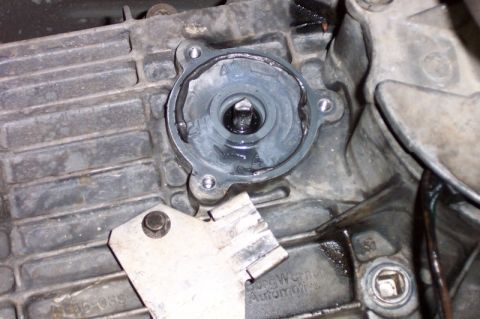

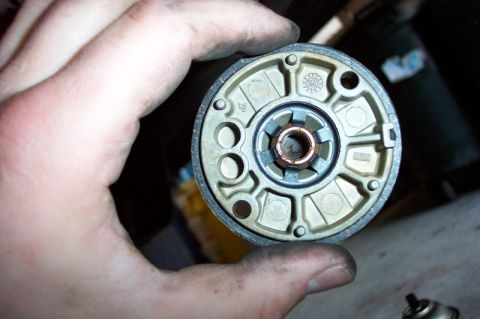

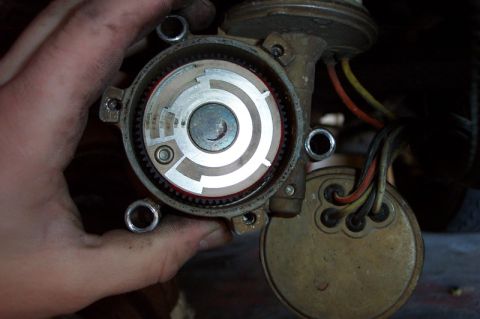

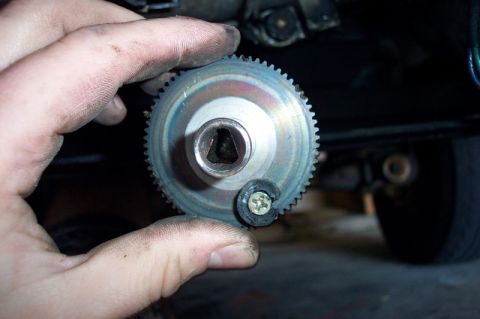

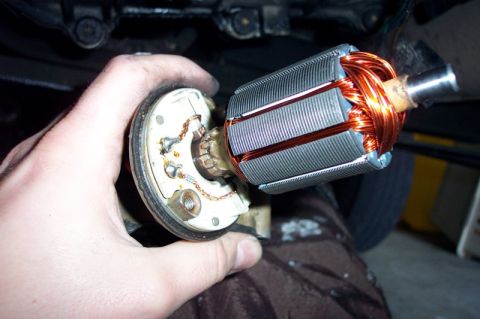

1992 Ford Bronco - Here's what the selector cam looks like when the electric motor is removed 1992 Ford Bronco - Here's the motor with the cap and housing removed. When you pull this part out, the brushes and springs will pop out. Just be sure not to l… 1992 Ford Bronco - Here's what it looks like underneath the cap 1992 Ford Bronco - Remove the wheel with the contacts on it, and here's what you're left with 1992 Ford Bronco - Here's why a lot of these fail--the travel stop breaks, so it reads that it's at an invalid position. This is actually a piece of 1/4" fuel… 1992 Ford Bronco - Here are the brushes and springs I was talking about. When reinstalling the motor, keep these pushed in with a pick or small screwdriver, t… 1992 Ford Bronco - This is the cap for the end of the motor. Notice the notch on the right side; be sure to line this up so you're not wasting time trying to…
