Saginaw pump swap

From 1992 Ford Bronco “Money pit”, documented by Richard Cherico.

9 photos
← Back to this vehicle

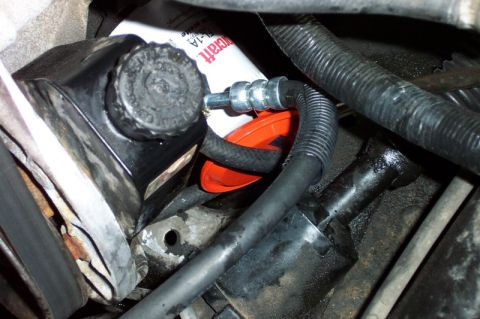

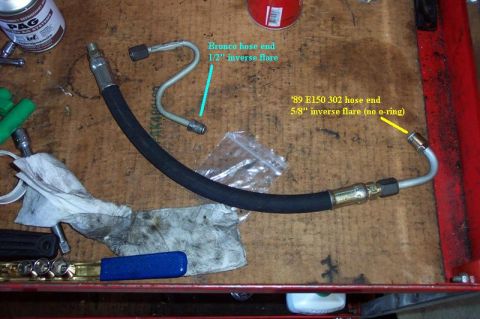

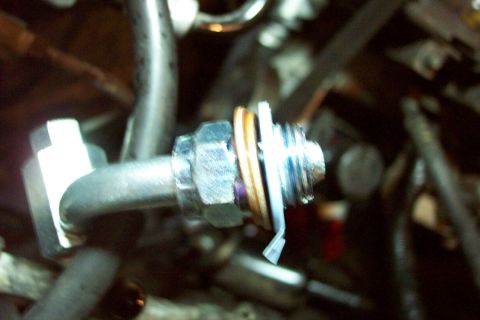

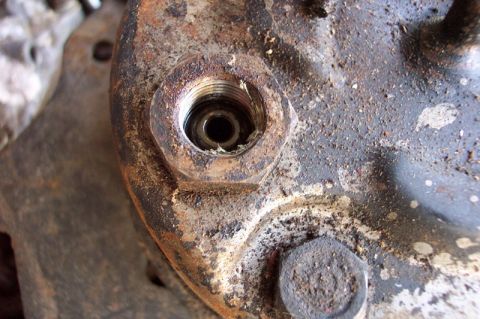

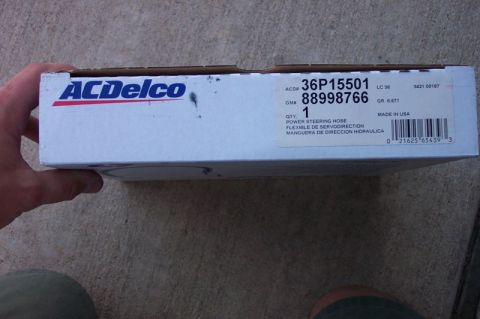

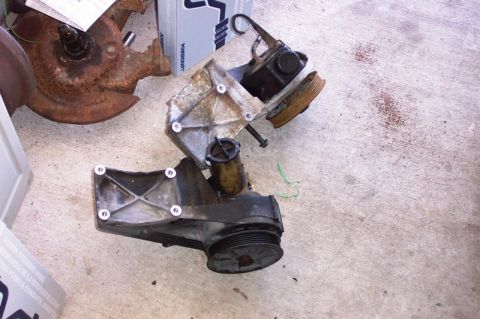

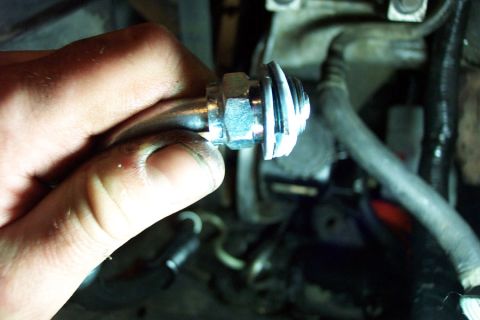

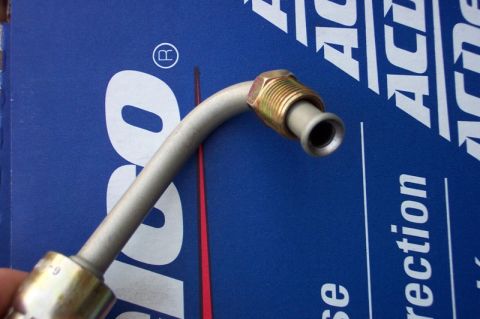

1992 Ford Bronco - Saginaw pump and bracket from a '94 E150 1992 Ford Bronco - Motorcraft pump front, Saginaw pump rear 1992 Ford Bronco - The port on my Sag pump. 5/8" w/o o-ring. It turns out that almost all of the pumps are 5/8" with o-ring. 1992 Ford Bronco - The hose I had to buy to get the fitting I needed. One end is 5/8" inverse flare (for the pump), the other end is 11/16" inverse flare for… 1992 Ford Bronco - The fitting I needed 1992 Ford Bronco - The new hose. The hydraulic shop crimped it and set up the compression fittings. I tightened everything up with it installed at each end so… 1992 Ford Bronco - Saginaw pump installed; the orange thing is the power steering filter. This is with one of the earlier hoses that did not work. 1992 Ford Bronco - Third attempt at sealing the Sag pump. Two copper and one nylon washer on the stock Bronco line (16mm Ford type 3 fitting). This does not w… 1992 Ford Bronco - Forth try at sealing the Sag pump. Two nylon washers on the stock Bronco line (16mm Ford type 3 fitting). This does not work.
