Ben busting a nut
617 hits | 51.65 KB | Posted: 3/28/07
Ben busting a nut
The knuckle. The left side of the pic is the top. We cut the stud short.
593 hits | 65.72 KB | Posted: 3/28/07
The knuckle. The left side of the pic is the top. We cut the stud short.
The bottom. The lower joint has a snap ring that you must remove. The upper joint does not, althou...
552 hits | 55.37 KB | Posted: 3/28/07
The bottom. The lower joint has a snap ring that you must remove. The upper joint does not, althou...
This is NOT how you press out the bottom joint.
574 hits | 62.93 KB | Posted: 3/28/07
This is NOT how you press out the bottom joint.
THIS is how you press out the bottom joint. By the way, you must press the bottom joint out first.
529 hits | 63.42 KB | Posted: 3/28/07
THIS is how you press out the bottom joint. By the way, you must press the bottom joint out first.
Both joints removed. We coated the bores with anti-seize before installing the new joints.
502 hits | 70.14 KB | Posted: 3/28/07
Both joints removed. We coated the bores with anti-seize before installing the new joints.
Press the upper joint in first. This is how you set the press up; there's a lip on the joint and on...
509 hits | 68.44 KB | Posted: 3/28/07
Press the upper joint in first. This is how you set the press up; there's a lip on the joint and on...
You'll run the threaded rod through the lower joint's bore. This is why you install the upper first...
541 hits | 63.92 KB | Posted: 3/28/07
You'll run the threaded rod through the lower joint's bore. This is why you install the upper first...

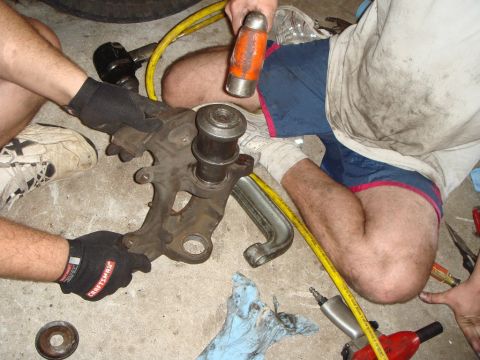

Once you've bottomed the joint against the tool (not fully seated in the bore), you'll need to hamme...
521 hits | 66.29 KB | Posted: 3/28/07
Once you've bottomed the joint against the tool (not fully seated in the bore), you'll need to hamme...

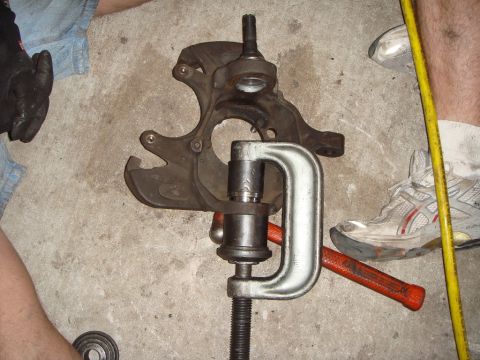

Here's how to set up and press in the lower joint. Don't forget to install the new snapring.
622 hits | 67.1 KB | Posted: 3/28/07
Here's how to set up and press in the lower joint. Don't forget to install the new snapring.
