Air Bags and Tank

From 2002 Ford Excursion “Dad's Truck”, documented by Bruce1954.

14 photos
← Back to this vehicle

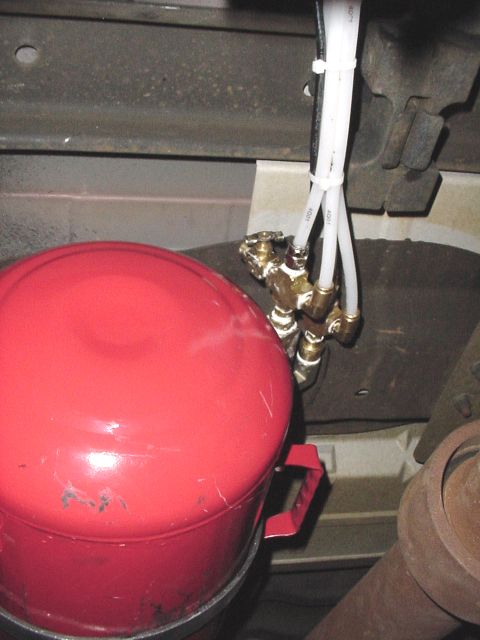

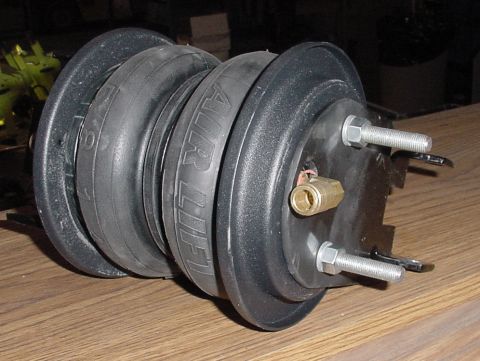

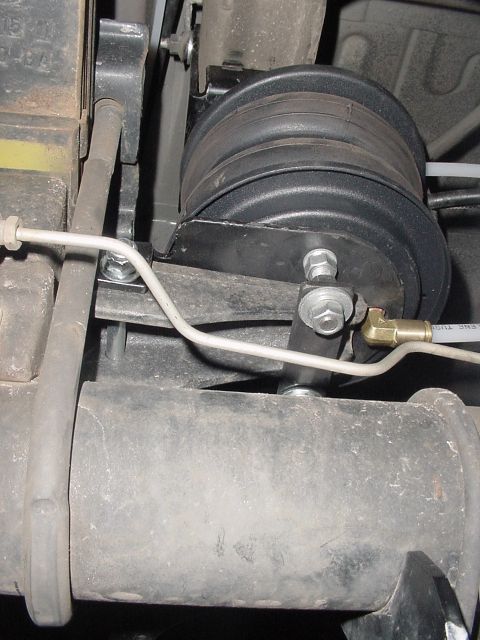

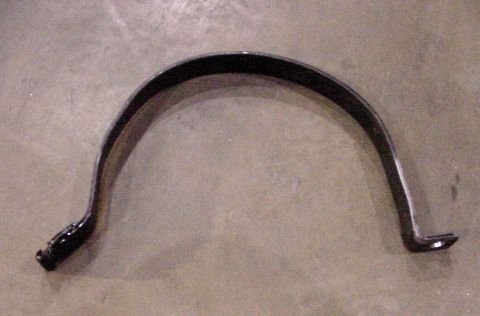

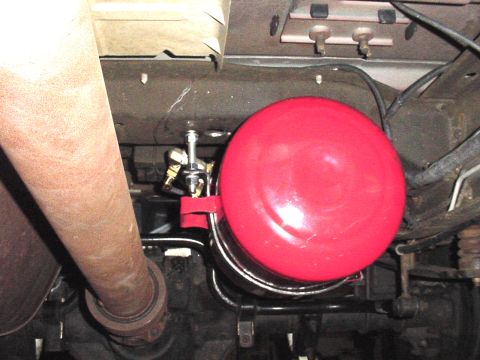

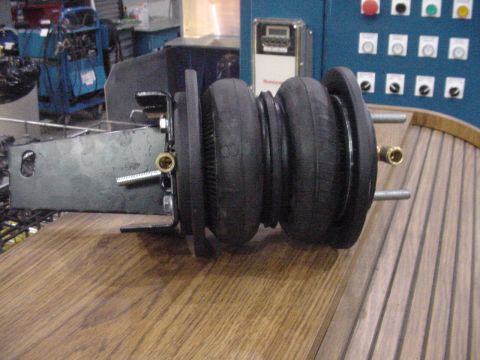

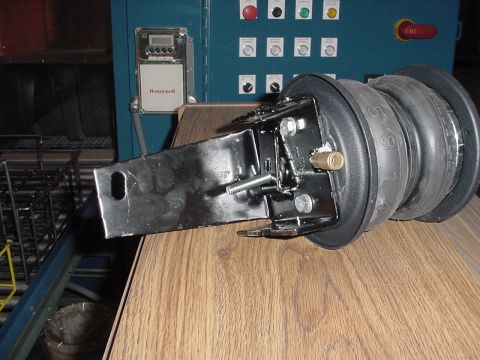

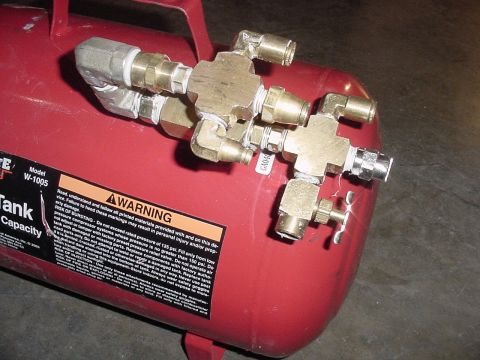

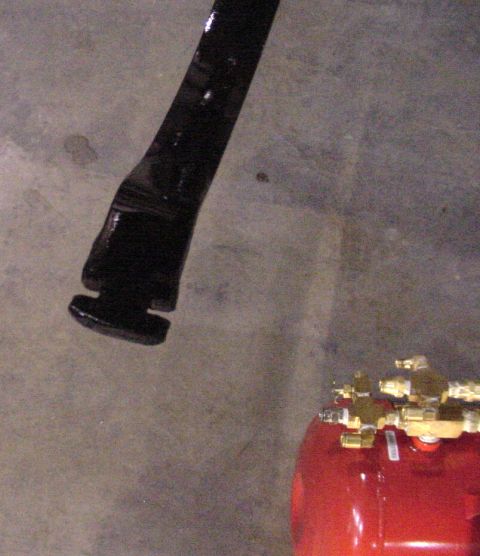

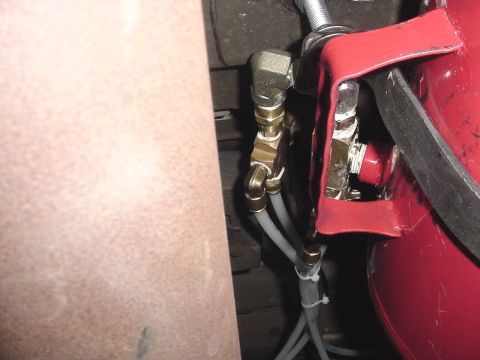

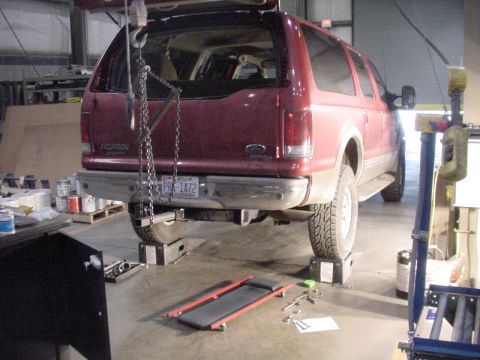

2002 Ford Excursion - Finnished tank assy ready for install 2002 Ford Excursion - Close up of tank fittings 2002 Ford Excursion - Side View of Dual ported bag OE 1/8" port on bottom Added 1/4" port on top 2002 Ford Excursion - Top of bag with added 1/4" port all fittings for bags use 3/8 OD Polly line 2002 Ford Excursion - The studs were added so that a keeper bar could be used in place of the tab on the AIRLIFT lower bracket that was remove to provide room fo… 2002 Ford Excursion - A curved black-painted metal fuel tank strap lying on a gray concrete floor, with mounting ends bent and flattened at each tip. 2002 Ford Excursion - A black leaf spring or strap end with a keyed/notched tip hangs at upper left, while a red cylindrical tank with brass fittings and valves… 2002 Ford Excursion - My Work Space 2002 Ford Excursion - Close-up underbody shot of a rubber convoluted air spring (air bag) mounted between suspension components, with a brass elbow fitting conne… 2002 Ford Excursion - Underside view of a vehicle chassis showing a red spherical tank mounted with a red strap to the frame, with brass valve fittings on top an… 2002 Ford Excursion - Underbody view showing a red air tank mounted near a brass manifold with multiple valve fittings, feeding two white air lines (labeled '400… 2002 Ford Excursion - Close up of Fittings 2002 Ford Excursion - This is the single stud that mounts the tank, an access hole was drilled to allow you to get the upper nut and washer in place 2002 Ford Excursion - I started with a tank like this on each side but just did not like it.
