05 Excursion

From 2002 Ford Excursion “Dad's Truck” — documented by Bruce1954.

12 photos
← Back to this vehicle

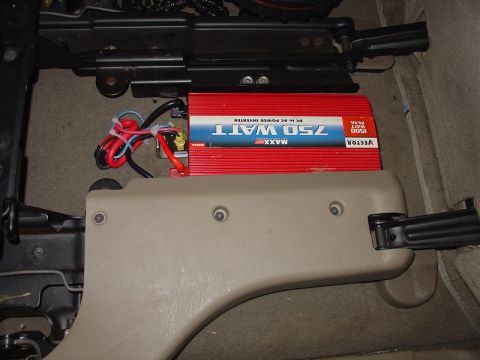

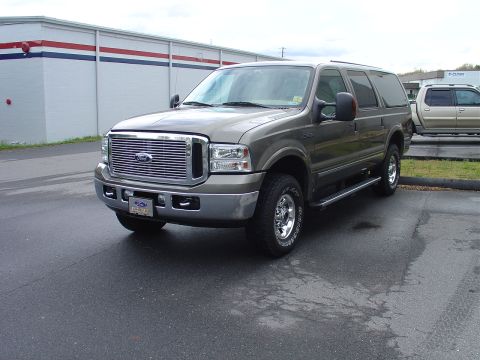

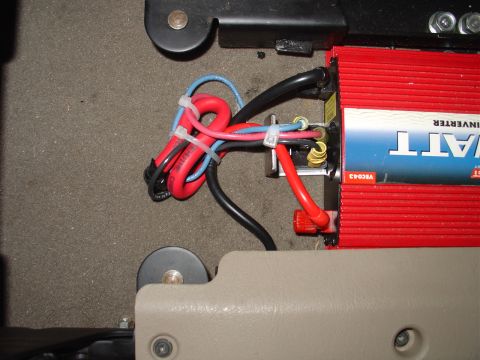

2002 Ford Excursion - A gray 2002 Ford Excursion is parked outside a building with another vehicle in the background. 2002 Ford Excursion - At last wired up the inverter the way I wanted to, It has three power feeds the left and right power points and the main feed from the rela… 2002 Ford Excursion - Close up of wiring including a full wave bridge so that no circuit back feeds another 2002 Ford Excursion - Here is the relay I used it is for Aux battery or Dodge Glow plugs or other constant duty. DO NOT USE A STANDARD FORD STARTER SOLINOID it w… 2002 Ford Excursion - Battery Tap, Way to easy! 2002 Ford Excursion - Modified F Code Rear with ONE added X G code Leaf. Leaf Added is the third leaf up from the bottom. See other pictures on cutting off the t… 2002 Ford Excursion - Close up of sring pack behind tire right side 2002 Ford Excursion - Bottom of right side front of spring 2002 Ford Excursion - Left Side spring side shot 2002 Ford Excursion - Left side shot over all 2002 Ford Excursion - Another shot of the left spring 2002 Ford Excursion - OK this is the picture you need Note how the third leaf up from the bottom from the old G code pack was cut off right through the hole wher…
