Kevin Stokes > 1992 Ford F-150 > open folder Spindles and Axle Shafts Removal

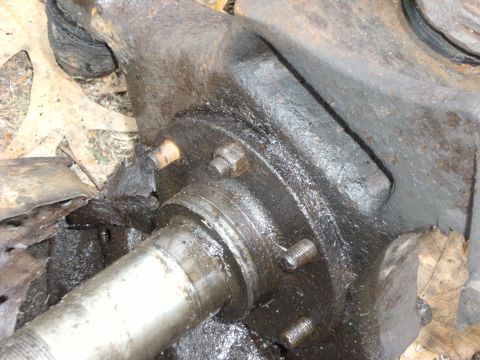

First, take off all 6 nuts holding the spindle on the knuckle. This one didnt want to come off.
655 hits | 105.32 KB | Posted: 1/16/08
First, take off all 6 nuts holding the spindle on the knuckle. This one didnt want to come off.

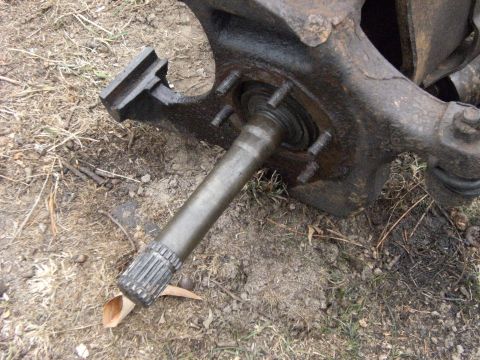

Then tap the spindle with a mallet and it will come off, leaving you with the shaft in the knuckle.
466 hits | 122.34 KB | Posted: 1/16/08
Then tap the spindle with a mallet and it will come off, leaving you with the shaft in the knuckle.

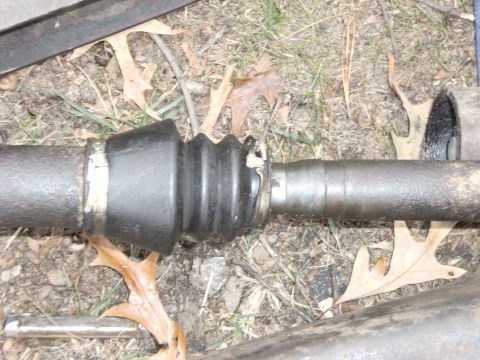

On the passenger side shaft, remove the Keystone clamp in the slip joint boot.
464 hits | 109 KB | Posted: 1/16/08
On the passenger side shaft, remove the Keystone clamp in the slip joint boot.

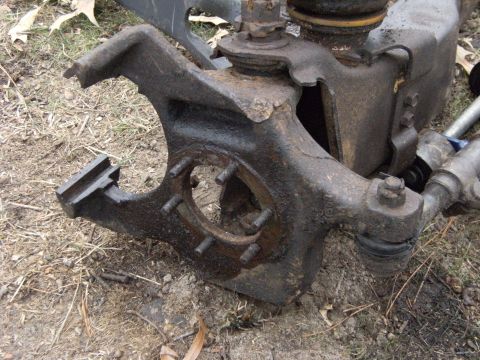

Then the axle shaft will pull out and you will be left with the empty knuckle.
503 hits | 118.47 KB | Posted: 1/16/08
Then the axle shaft will pull out and you will be left with the empty knuckle.

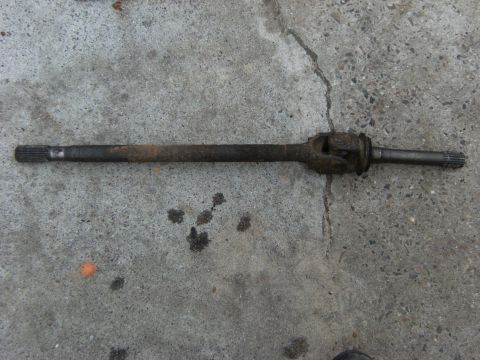

Passnger side axle shaft
465 hits | 100.7 KB | Posted: 1/16/08
Passnger side axle shaft

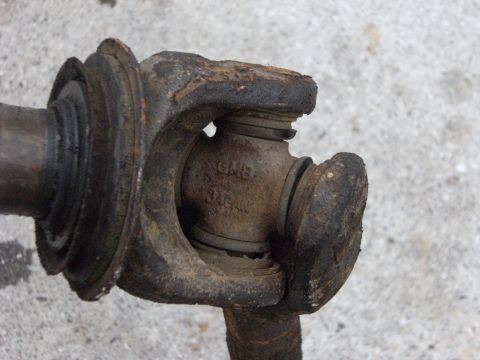

U-joint was toast.
495 hits | 79.64 KB | Posted: 1/16/08
U-joint was toast.

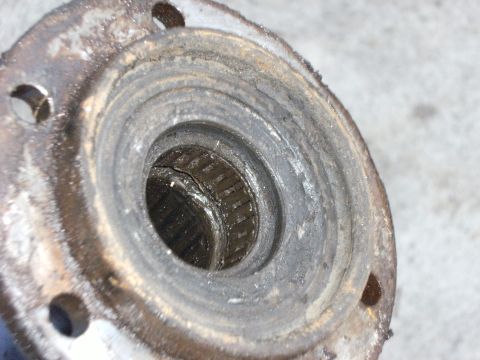

Best pic I have of the spindle bearings still in the spindle.
504 hits | 86.27 KB | Posted: 1/16/08
Best pic I have of the spindle bearings still in the spindle.
