78 Dana 60 Leaf SAS

From 1995 Ford Bronco “1995 Bronco XLT”, documented by JoeBob1901.

46 photos
← Back to this vehicle

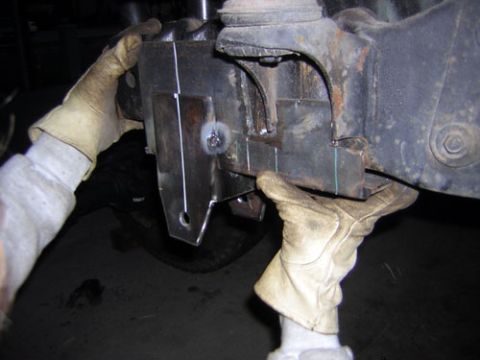

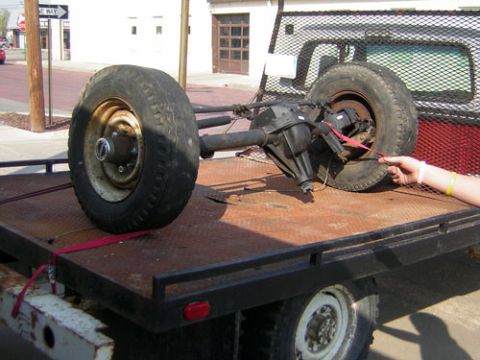

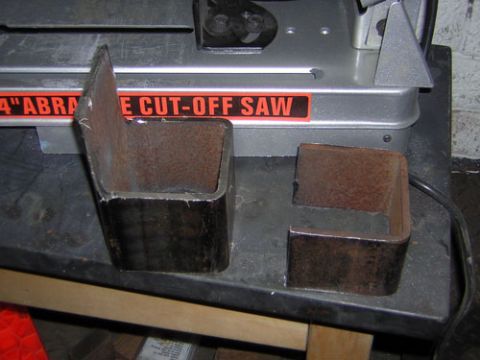

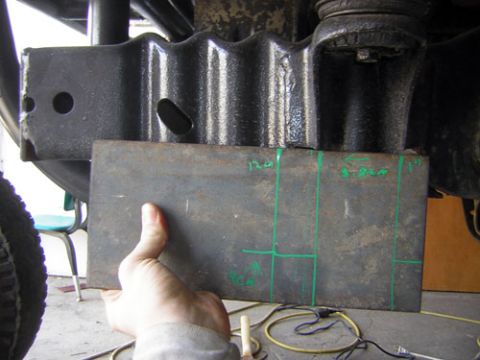

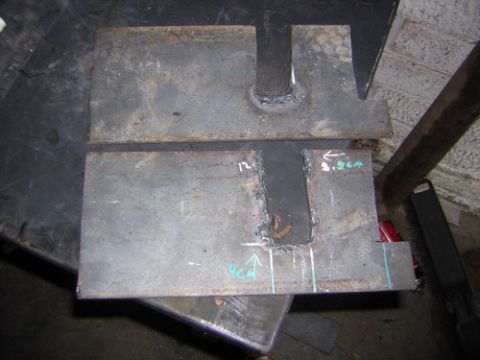

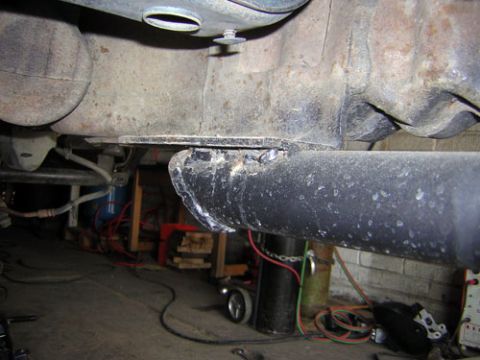

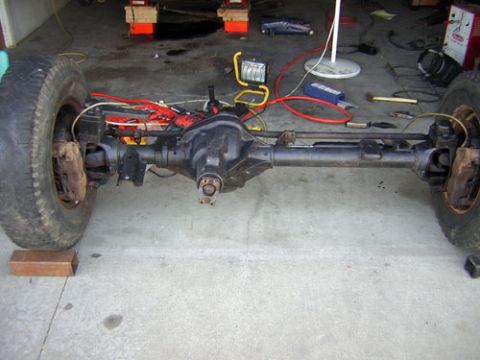

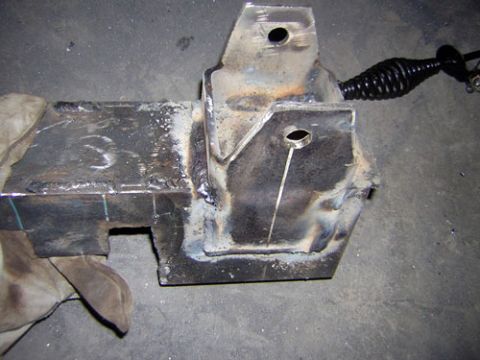

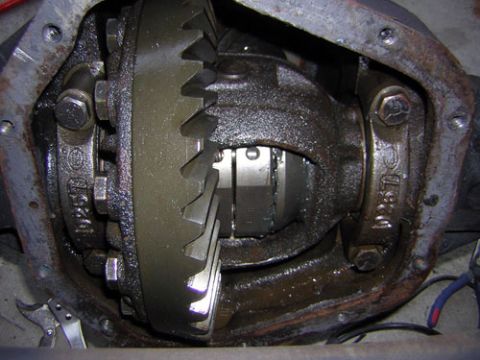

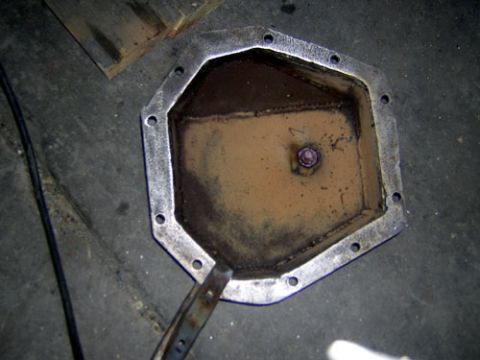

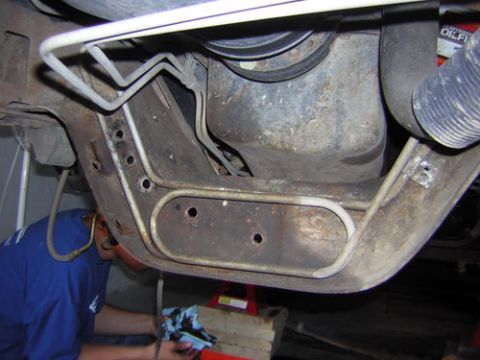

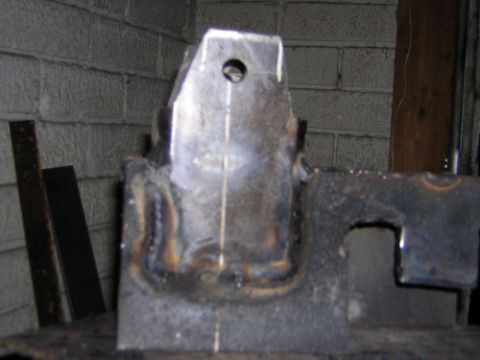

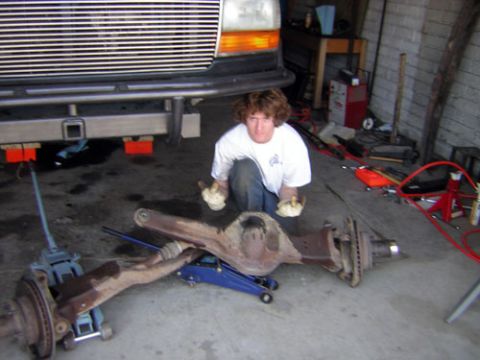

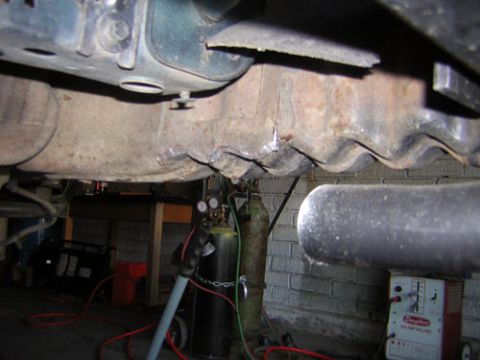

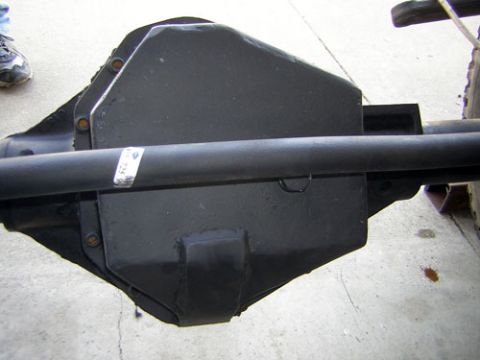

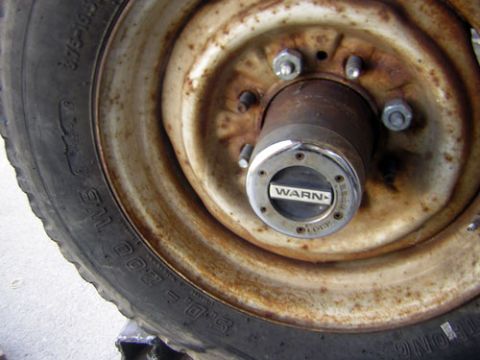

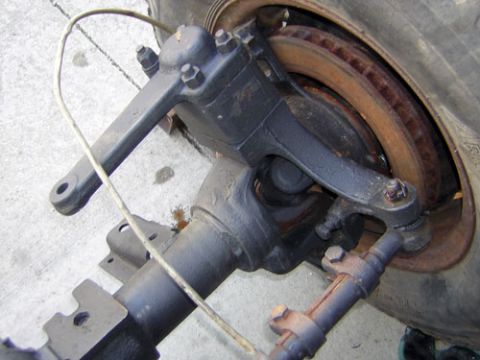

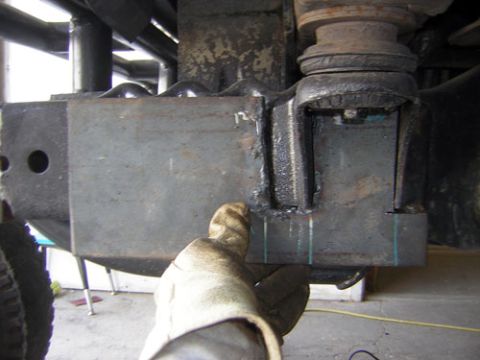

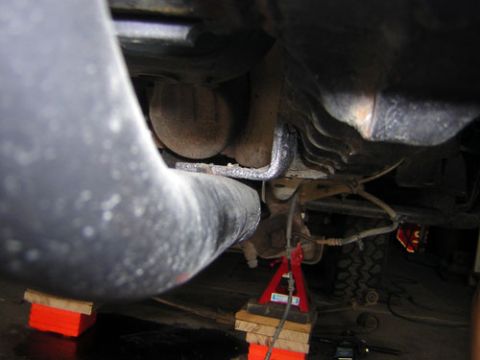

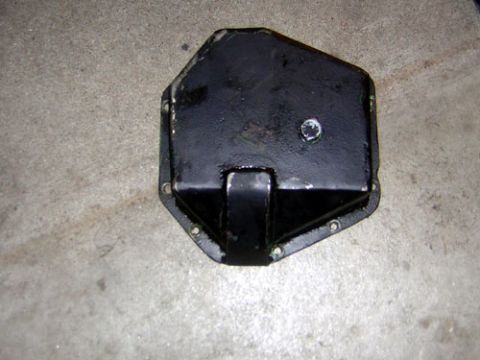

1995 Ford Bronco - TTB SALUTE! 1995 Ford Bronco - Flatbed F250 came in handy 1995 Ford Bronco - brake/kingpin view 1995 Ford Bronco - A removed solid rear axle assembly rests on the concrete floor of a garage, with brake backing plates and hubs visible at each end and a di… 1995 Ford Bronco - Heavy Duty 1/4 plate reinforced diff cover 1995 Ford Bronco - Detroit Locker, 4.88s 1995 Ford Bronco - Warn hubs 1995 Ford Bronco - Spring Perch "template" 1995 Ford Bronco - Mocking up accordian frame bracket 1995 Ford Bronco - Drivers side bracket cut and mocked up into place, looks good! lots of area to weld it on 1995 Ford Bronco - Both brackets cut-out 1995 Ford Bronco - sway bar bracket/bumper mounting area needing modifying 1995 Ford Bronco - another shot 1995 Ford Bronco - Swaybar Bracket/lower bumper mounting removed 1995 Ford Bronco - Engine Crossmember- still deciding whether to remove, trim, or leave alone 1995 Ford Bronco - beginning of front hangers 1995 Ford Bronco - Close-up of gloved hands holding a bare-metal fabricated bracket against a rusty vehicle frame rail, apparently during undercarriage work.… 1995 Ford Bronco - Close-up of a fabricated steel bracket or mount with fresh weld beads joining a vertical drilled tab to a horizontal base plate, showing he… 1995 Ford Bronco - Close-up of a horizontal MIG or stick weld bead joining two steel plates on a fabricated metal structure, showing a rippled weld seam with… 1995 Ford Bronco - A fabricated steel bracket assembly with fresh weld beads joining a rectangular tube to gusseted mounting plates with drilled holes, one pl… 1995 Ford Bronco - Front axle hanger tacked into place until final fitting and measurements 1995 Ford Bronco - Axle perch cutting to move leaf spring spacing from 32"-36" 1995 Ford Bronco - How much i cut off, I used a chopsaw and cut it by hand, with great care and welding gloves on, and using a pair of locking pliers. 1995 Ford Bronco - mocked up 1995 Ford Bronco - Tacked in place until final fitting 1995 Ford Bronco - will drill the rest of the holes for this bracket once i check to make sure shackle angle is decent. 1995 Ford Bronco - the brakelines that were on the built D60 when i got it, seem to hookup to the TTB hardlines just fine luckily 1995 Ford Bronco - no leaky leaky :) 1995 Ford Bronco - Hooked up to the TTB hardline, great luck on my part. 1995 Ford Bronco - line measurement.. 1995 Ford Bronco - 29"! I DOUBT these lines will be being stretched by any means 1995 Ford Bronco - 6" extended TTB line compared to the line on the 60..bit of difference 1995 Ford Bronco - Cage Offroad Nitrogen Shocks, 14" travel. 1995 Ford Bronco - Monroe Steering Stabalizer 1995 Ford Bronco - Part # 1995 Ford Bronco - WFO Concepts Steering 1995 Ford Bronco - The wanker previous owner before me decided to put the drain plug in the center of the cover, which in turn hits on the tierod horribly.. 1995 Ford Bronco - weld er up 1995 Ford Bronco - welded shut 1995 Ford Bronco - grinded smooth 1995 Ford Bronco - Underside view of a vehicle's rear suspension and frame, showing a shackle mount and leaf spring, with an LED work light illuminating the r… 1995 Ford Bronco - Underside view of a vehicle raised on two red jack stands set on wooden blocks, showing a rusty differential, driveshaft, sway bar, and fle… 1995 Ford Bronco - new power steering lines ran 1995 Ford Bronco - power steering lines should tuck back above engine crossmmeber fine, i'll probably ziptie onto the tranny hardlines to keep in place 1995 Ford Bronco - A 14-inch abrasive cut-off saw with a toothed metal blade sits on a workbench or garage floor, with red lettering reading '14" ABRASIVE CUT… 1995 Ford Bronco - A 14-inch Chicago cut-off wheel for metal (24 grit, rated for use with a chop saw) lies on a concrete floor, with two red rods or handles r…
