JoeBob1901 > 1995 Ford Bronco > open folder 97 10.25 Sterling Swap

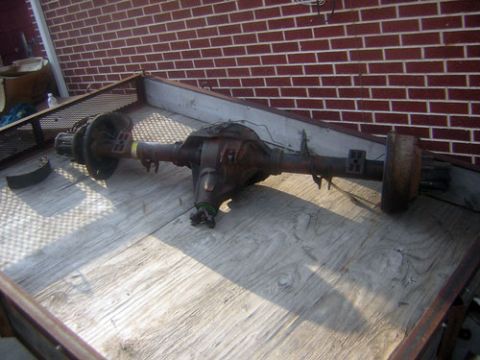

97 10.25 Sterling rear axle, out of an f350. Has since been rebuilt with Yukon 4.88 gears (long pini...
774 hits | 55.03 KB | Posted: 5/18/05
97 10.25 Sterling rear axle, out of an f350. Has since been rebuilt with Yukon 4.88 gears (long pini...

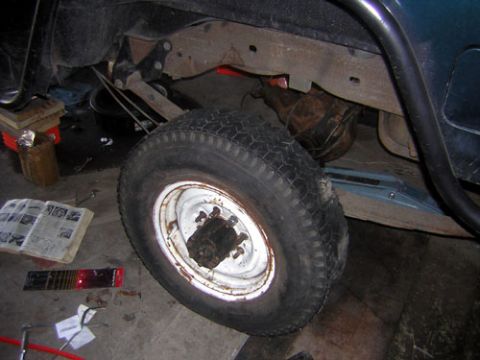

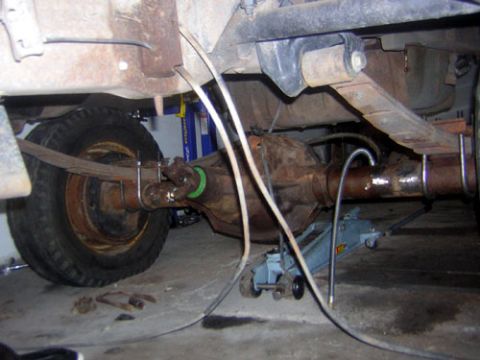

axle in
773 hits | 43.22 KB | Posted: 6/6/05
axle in
797 hits | 45.57 KB | Posted: 6/6/05

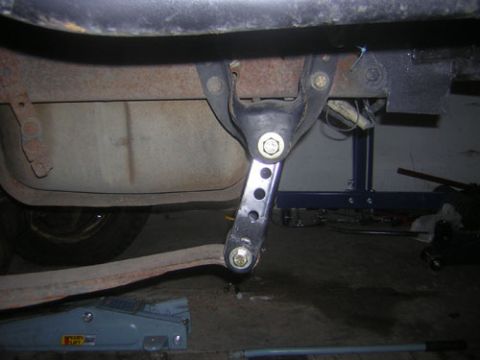

Not the greatest shackle angle..may correct that soon This is with a 2" belltech lowering shackle
922 hits | 30.4 KB | Posted: 6/6/05
Not the greatest shackle angle..may correct that soon

This is with a 2" belltech lowering shackle

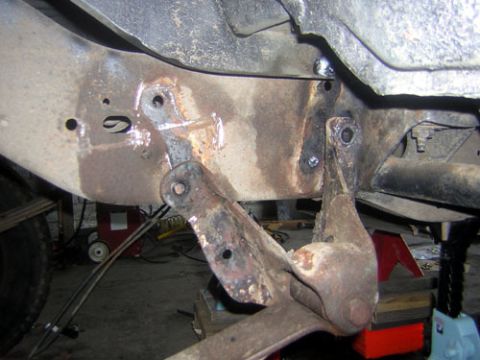

bracket-be gone Had to clearence the body a bit with a torch to get access at the top bolts, and ...
772 hits | 49.99 KB | Posted: 6/7/05

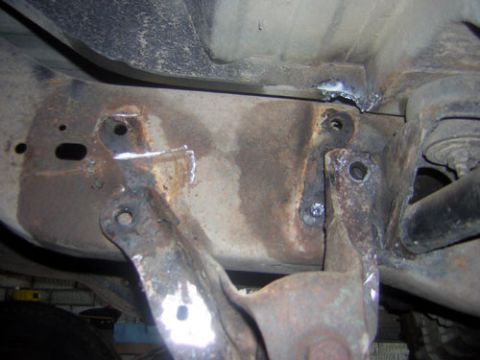

bracket-be gone

Had to clearence the body a bit with a torch to get access at the top bolts, and ...
708 hits | 39.82 KB | Posted: 6/7/05

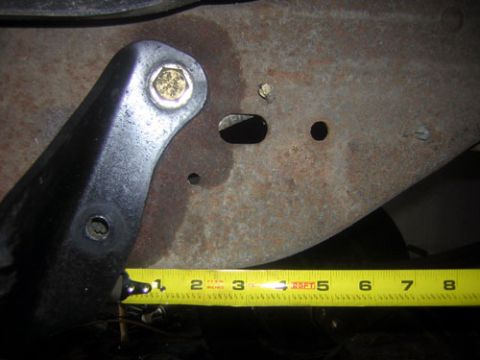

How much room you have available to move your axle forward without moving the bracket vertically up ...
742 hits | 37.88 KB | Posted: 6/7/05
How much room you have available to move your axle forward without moving the bracket vertically up ...

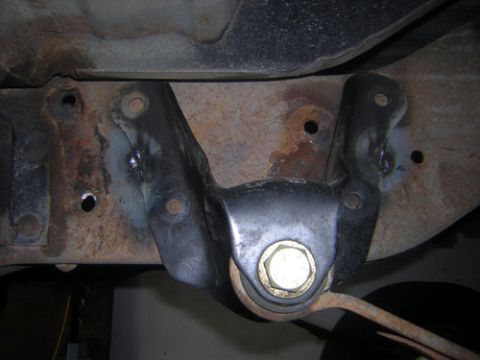

Bracket tacked in place, comparison to stock holes
769 hits | 34.22 KB | Posted: 6/7/05
Bracket tacked in place, comparison to stock holes

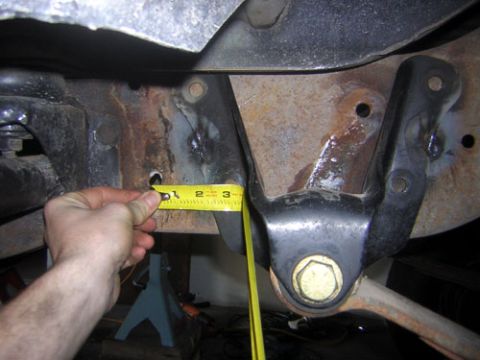

bottom hole is 3" back, and a smidgen lower on the frame (this is to negate the lift lost by moving ...
937 hits | 42.97 KB | Posted: 6/7/05
bottom hole is 3" back, and a smidgen lower on the frame (this is to negate the lift lost by moving ...

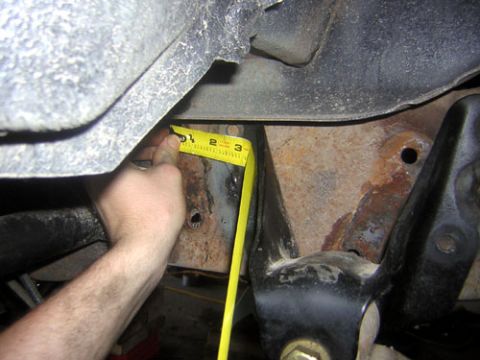

Top hole about 2.5" from old hole, and a tad lower
653 hits | 49.38 KB | Posted: 6/7/05
Top hole about 2.5" from old hole, and a tad lower

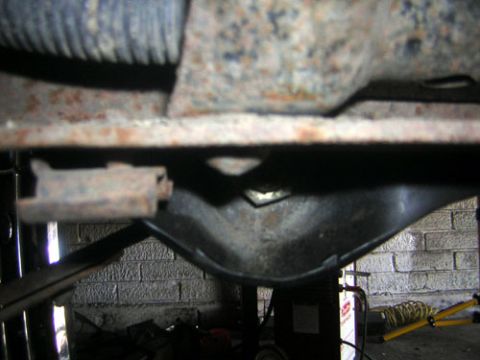

Bracket in relation to stock crossmember rivet, and bottom of frame From frame to bottom of the b...
698 hits | 38.01 KB | Posted: 6/7/05
Bracket in relation to stock crossmember rivet, and bottom of frame

From frame to bottom of the b...

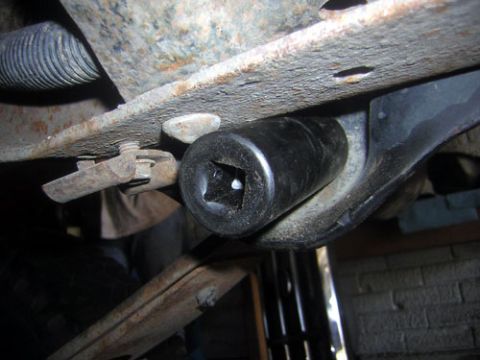

can barely get a socket on there, but will be enough to tighten it down, although that could easily ...
782 hits | 43.59 KB | Posted: 6/7/05
can barely get a socket on there, but will be enough to tighten it down, although that could easily ...

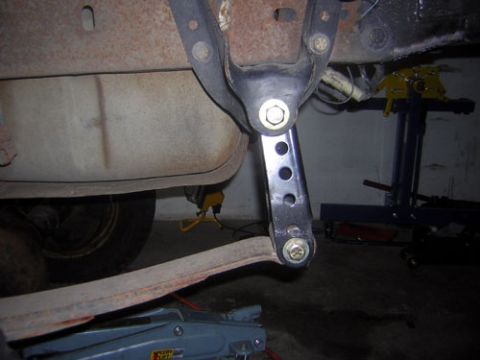

shackle angle without any weight on it
715 hits | 33.41 KB | Posted: 6/7/05
shackle angle without any weight on it

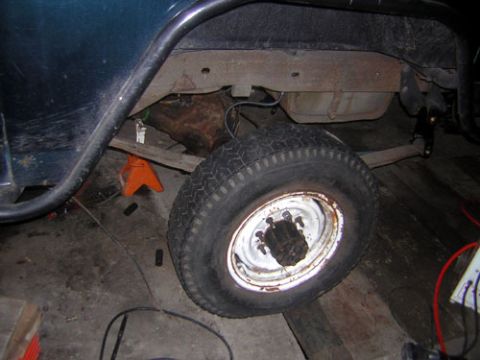

axle with weight on it, moved 3" back
656 hits | 41.66 KB | Posted: 6/7/05
axle with weight on it, moved 3" back

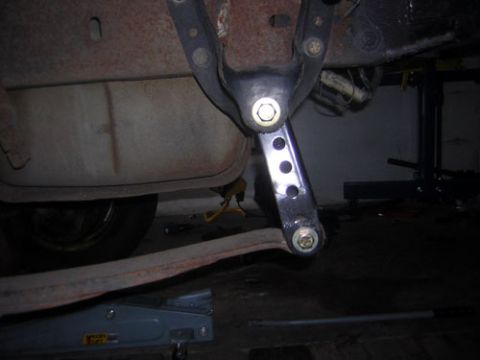

Shackle angle with weight on it (not TOO bad, but still a lil verticle for my taste, the rear shackl...
718 hits | 24.49 KB | Posted: 6/7/05
Shackle angle with weight on it (not TOO bad, but still a lil verticle for my taste, the rear shackl...

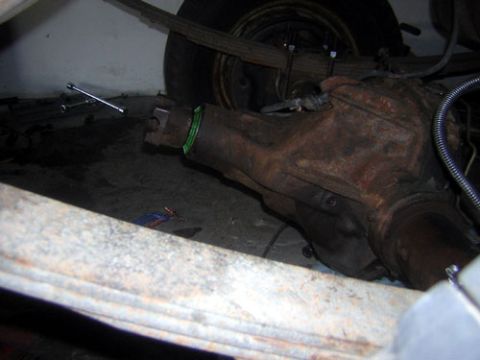

pinion angle still pretty good ;)
703 hits | 32.69 KB | Posted: 6/7/05
pinion angle still pretty good ;)

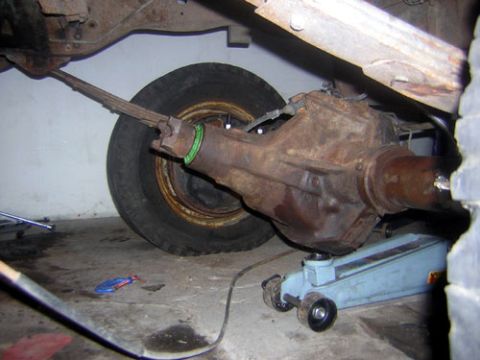

better pinion angle shot
972 hits | 43.63 KB | Posted: 6/7/05
better pinion angle shot

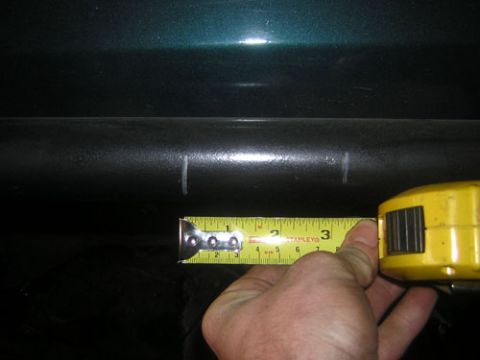

stock axle marking (center of hub), to current marking on right (center of hub), 3"
668 hits | 25.66 KB | Posted: 6/7/05
stock axle marking (center of hub), to current marking on right (center of hub), 3"

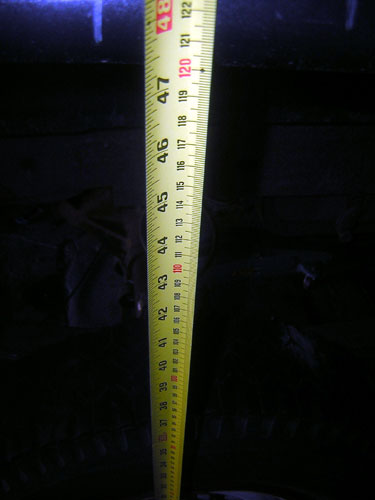

47" to the top of my fenders
697 hits | 21.7 KB | Posted: 6/7/05
47" to the top of my fenders

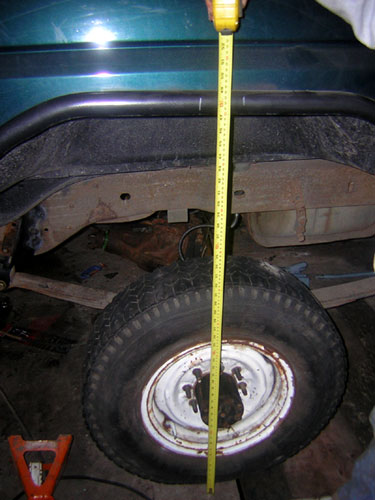

Tire in relation to hight of vehicle/fender cutting with Approx. 7" of lift
735 hits | 43.15 KB | Posted: 6/7/05
Tire in relation to hight of vehicle/fender cutting

with Approx. 7" of lift
