GasTank Skid

From 1995 Ford Bronco “Shadofax” — documented by Mark Zoelch.

9 photos
← Back to this vehicle

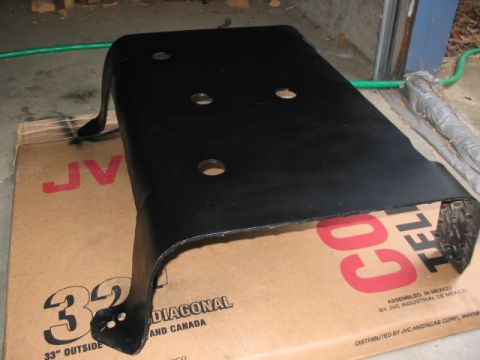

1995 Ford Bronco - Started with a rectangular sheet of 3/16" diamond plate that weighed apx. 50 lbs! Cut it down to this big "H" 1995 Ford Bronco - steel bending using the ol BFH. 1995 Ford Bronco - Mounted up over the stock skid, which is still on. The rear lip is a bit unever, so the last pic shows a recent take off where I worked on… 1995 Ford Bronco - Attached up top at the stock bolt locations 1995 Ford Bronco - The diamond plate is on the inner side, so it's smooth on the outside. Diamondplate also makes the strength of this plate stronger and heav… 1995 Ford Bronco - Underside view of a vehicle's fuel tank and rear axle, showing mechanical components. 1995 Ford Bronco - Diagram of the H cut needed 1995 Ford Bronco - Diagram from the side of the bending needed to attach it. 1995 Ford Bronco - Recent photo, took the plate back off and drilled a few 1 1/2" drain holes, and ground down the rear lip so it was straight across.
