200A 3G Large Case Alternator/cable install

From 1995 Ford Bronco “Shadofax”, documented by Mark Zoelch.

10 photos
← Back to this vehicle

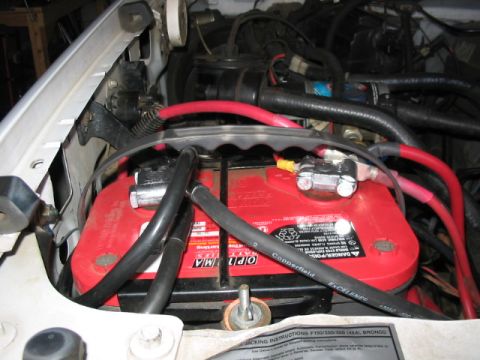

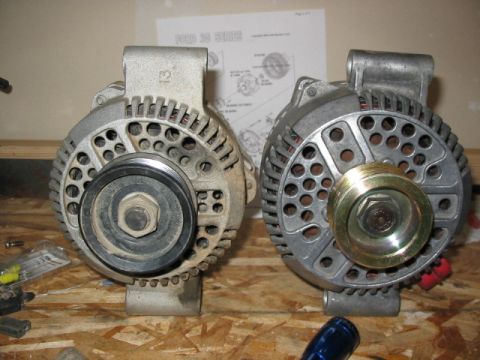

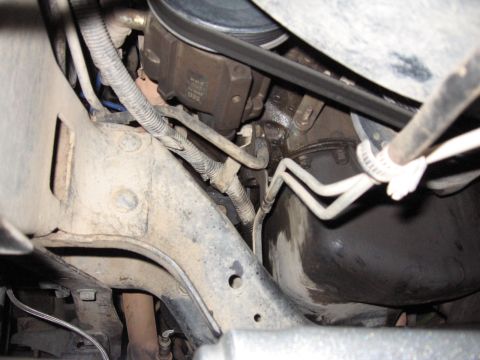

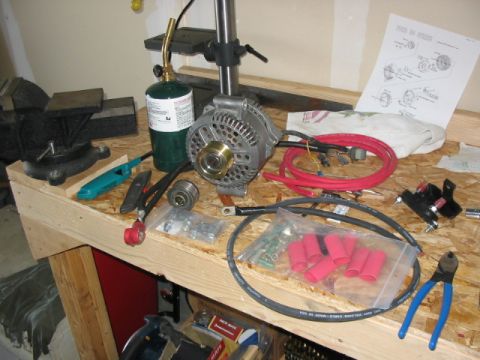

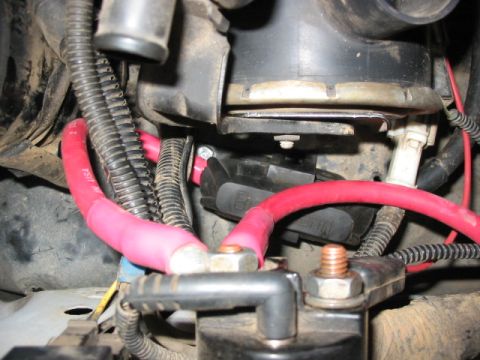

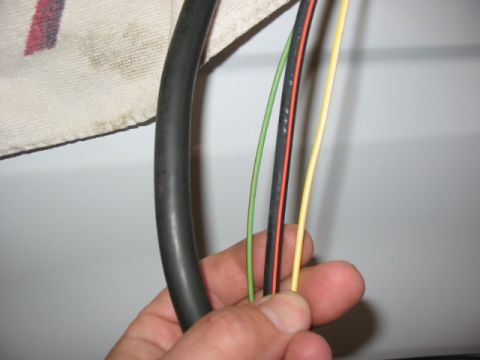

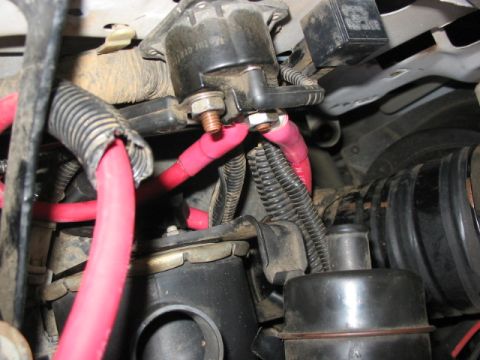

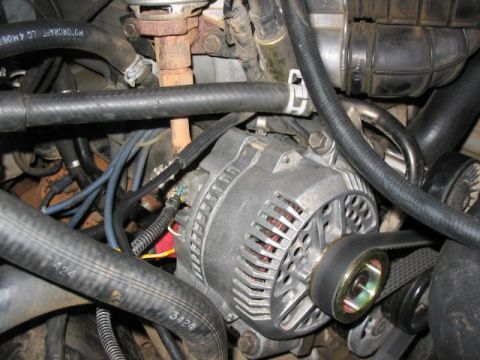

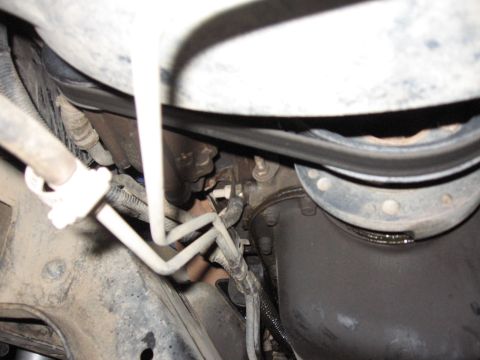

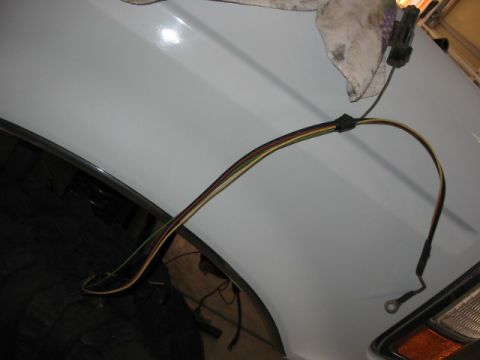

1995 Ford Bronco - lots of stuff....200A large case alt., black and red 2GA welding wire, rated 100 below to 221*, 600V (all this is from Fireguy on FSB.com),… 1995 Ford Bronco - Difference between a stock '95 model year, 95A small case 3G, and the 200A large case on the right. Notice though that these two units are… 1995 Ford Bronco - believe it or not, 2GA charge cable on left (used for both + and ground), and the super wimpy 8 GA or worse black w/orange stripe stock cha… 1995 Ford Bronco - One more pic of the factory charge wiring. I have the factory nunber for this harness, just need to add it at a later time. 1995 Ford Bronco - 200A installed. It appears the slighter 2.25" pulley over the factory one is no problem with the same belt as the tensioner can handle the… 1995 Ford Bronco - relay wiring setup 1995 Ford Bronco - you can just see the bussman 225A fuse setup below the relay (mounted to the plastic fenderwell). 1995 Ford Bronco - Battery setup. I used the Mil-spec batt terminal and I like them since they are solid forged lead and HD. but the large connectors, and 2GA… 1995 Ford Bronco - Underbody view up into a front wheel well, showing the frame rail, steering linkage, formed steel brake or fuel lines, wiring, and the inne… 1995 Ford Bronco - Close-up underhood/undercarriage view of a Ford Bronco showing a steel frame rail, wiring harness with corrugated loom, metal fluid lines,…
