Trans Cooler Fan DONE

From 1995 Ford Bronco “Shadofax”, documented by Mark Zoelch.

11 photos
← Back to this vehicle

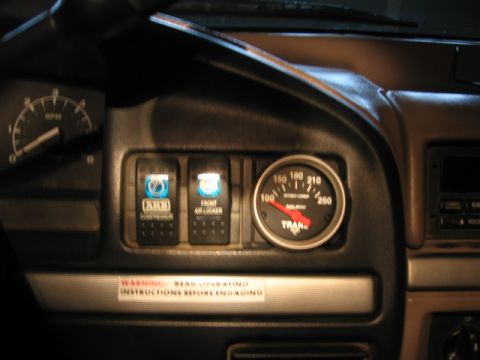

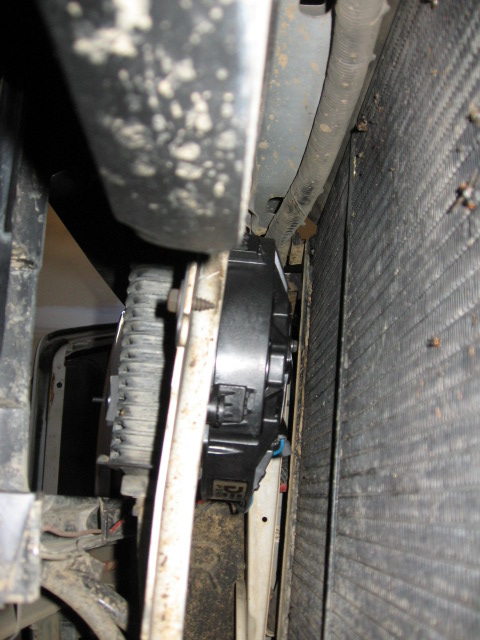

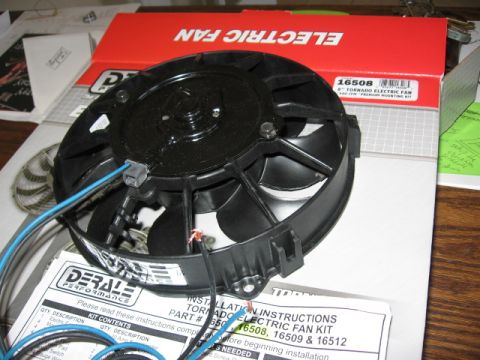

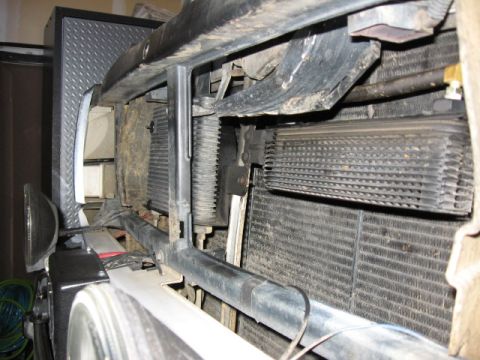

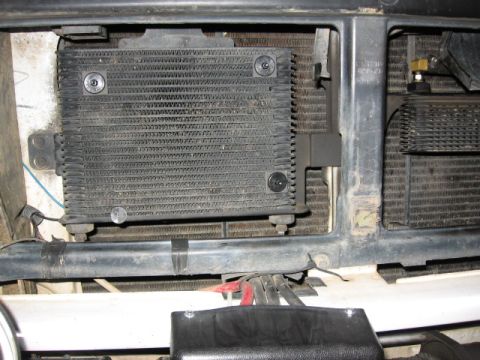

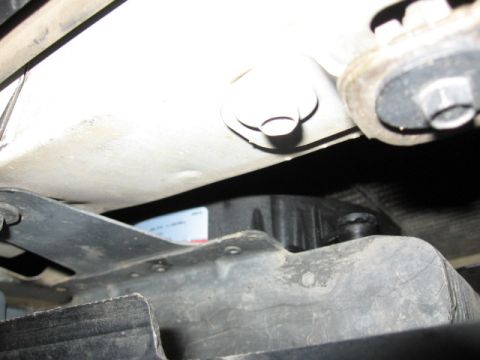

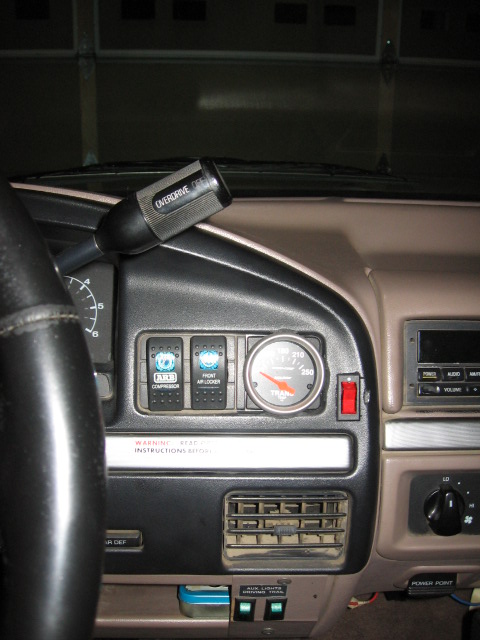

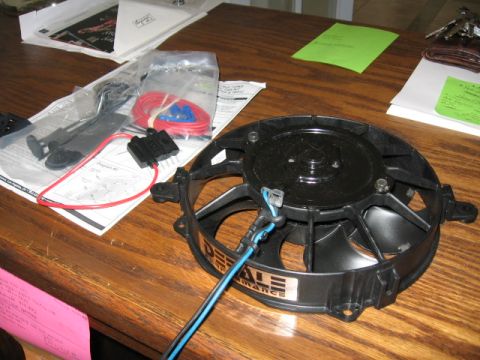

1995 Ford Bronco - Tranny Temp gauge install, autometer 3357 from summit. 1995 Ford Bronco - The planned fan, probably make it a puller since I don't have the AC condensor and have room behind the E4OD cooler (it won't be on all the… 1995 Ford Bronco - So I bought the dereale 8", 500cfm puller fan that draws 4.8amp. It will sit right behind the stock E4OD trans cooler. Pics coming for that. 1995 Ford Bronco - A black electric radiator/cooling fan branded 'DERALE' rests on a wood table, with an installation kit including red wiring, blue crimp con… 1995 Ford Bronco - So this is looking at the power steering cooler (smaller one closest) and the tranny cooler farthest away with the front clip removed. So t… 1995 Ford Bronco - just a front shot of the trans cooler with the plastic ties coming through. Cooler is a puller and on the backside. 1995 Ford Bronco - sneak peak from the top, trans cooler you can see and the top of the derale fan just behind it. 1995 Ford Bronco - pic from drivers side under the power steering cooler looking over at the passenger side trans cooler and the fan behind it. There is plent… 1995 Ford Bronco - So now there is a little red switch right next to the trans temp gauge. Normally I would not have a lighted switch high up like this, but I… 1995 Ford Bronco - Just a couple pics where you connect the electrical sender at the E4OD that goes up to the gauge. 1995 Ford Bronco - Underside view of an automatic transmission with a new bright-finish pan and gasket installed, with a braided-sleeved wire running to a blu…
