Rock Slider Step Boards

From 1996 Ford Bronco “White Cloud”, documented by Al Stu.

23 photos
← Back to this vehicle

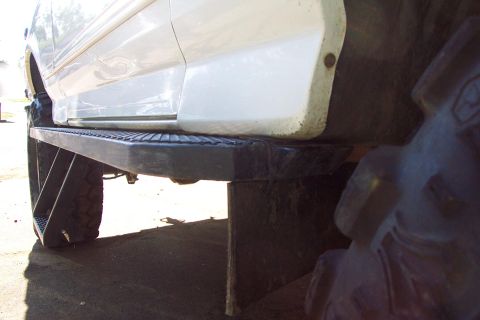

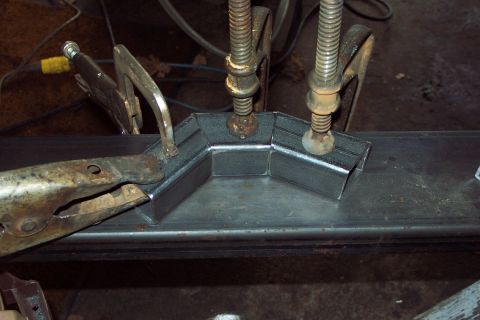

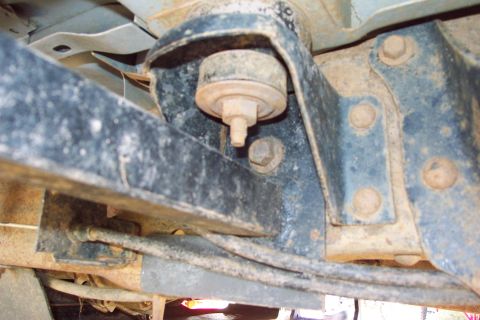

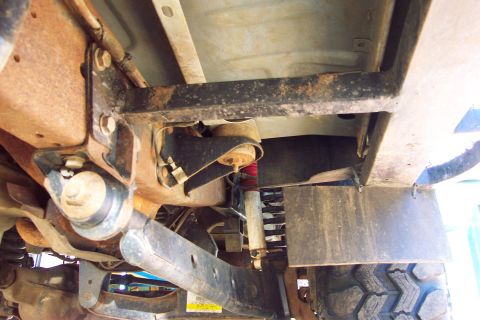

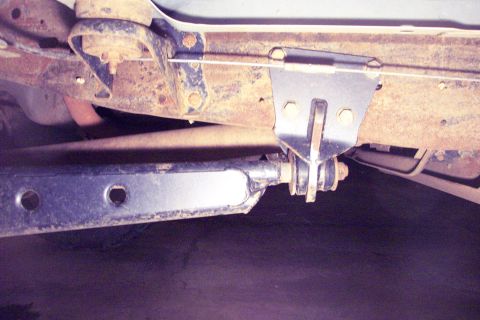

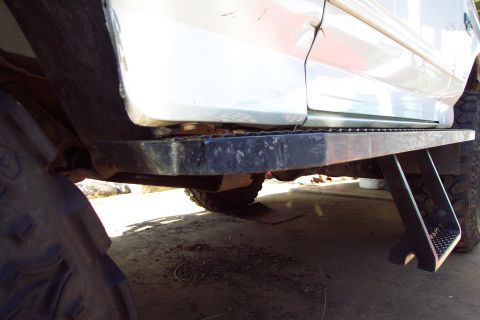

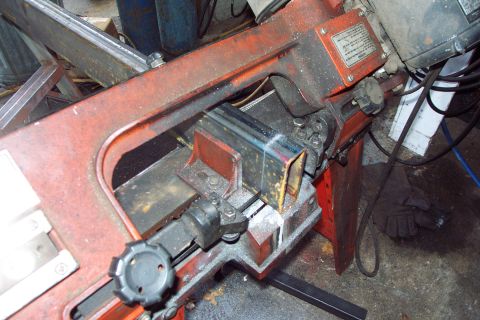

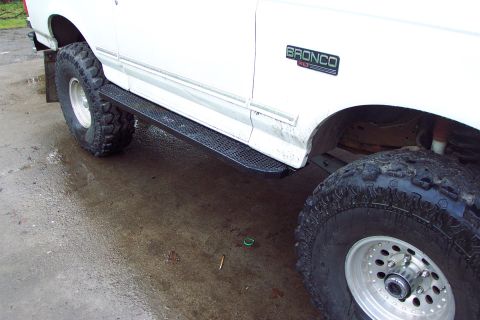

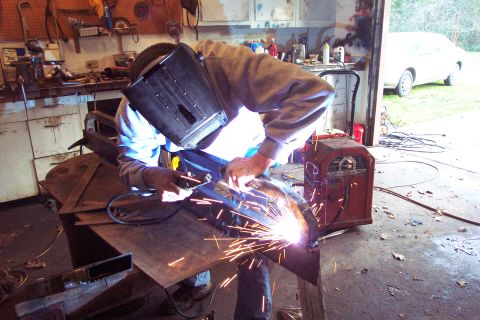

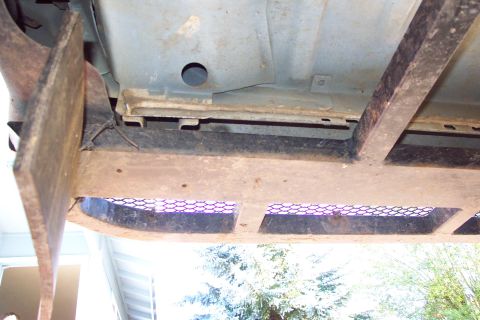

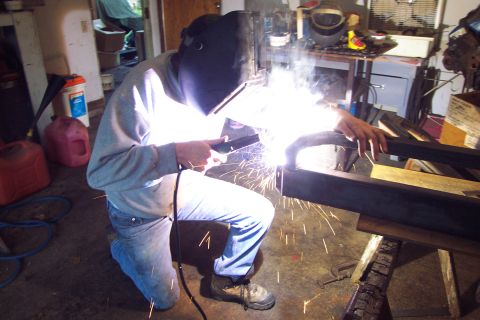

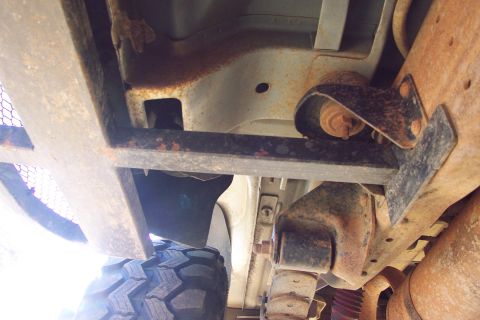

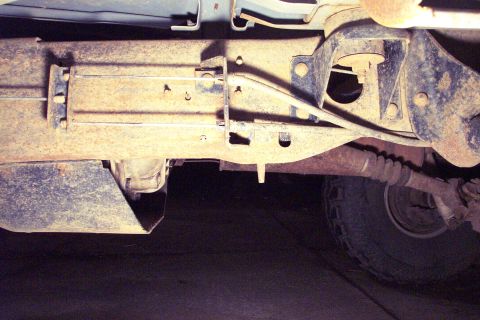

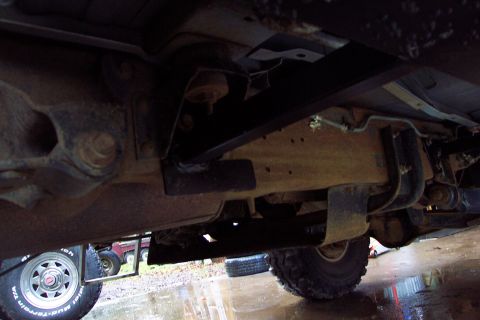

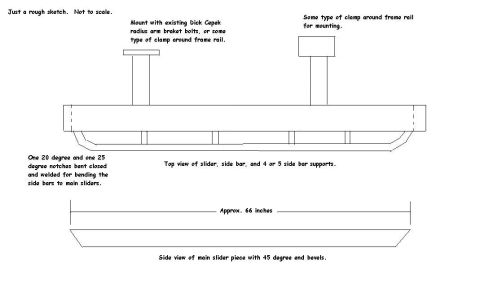

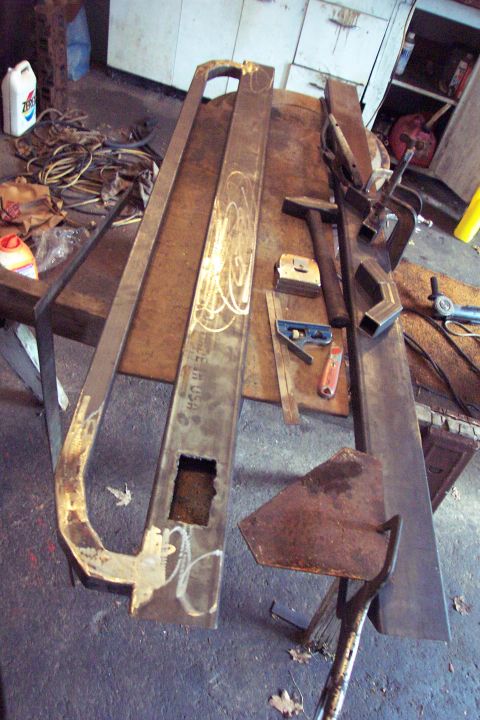

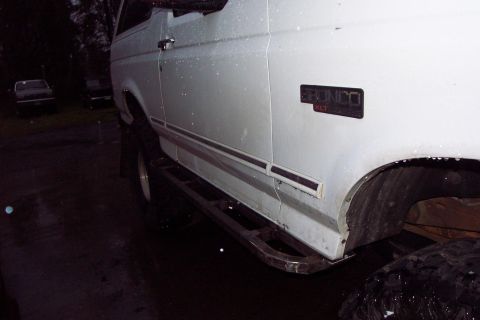

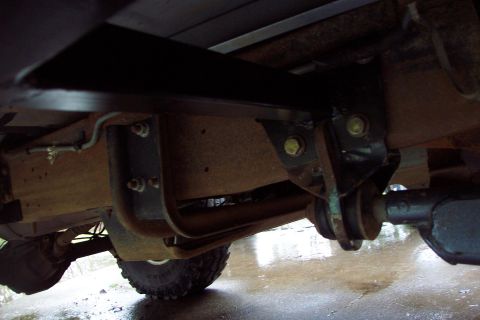

1996 Ford Bronco - Rough Sketch. Main Slider: 1-1/2" x 4" x 1/8" Mounting Arms, Outer Rail and Spacers: 1-1/2" x 1-1/2" x 1/8" Mounting Plates: 3/16" Plate 1996 Ford Bronco - Thinking about using the existing radius arm bolts for mounting at the front. 1996 Ford Bronco - Would like to devise some sort of frame rail clamp on mount for the rear. 1996 Ford Bronco - Jigging up the step bar multi angle ends for welding. (12/20/2003) 1996 Ford Bronco - Partially compted slider. (12/20/2003) 1996 Ford Bronco - Welding. (12/20/2003) 1996 Ford Bronco - More welding. (12/20/2003) 1996 Ford Bronco - Yet some more welding. (12/20/2003) 1996 Ford Bronco - Some grinding. (12/20/2003) 1996 Ford Bronco - Some band saw cuttng. (12/20/2003) 1996 Ford Bronco - Some tourch cutting. (12/20/2003) 1996 Ford Bronco - Rock Slider / Step Board. Just needs some paint and Steel Mesh. (12/25/2003) 1996 Ford Bronco - Completed rock slider with steel mesh step board. (12/31/2003) 1996 Ford Bronco - Front mount to existing Dick Cepek radius arm bracket. (12/31/2003) 1996 Ford Bronco - Rear mount under body mount bracket. Ford put about a 2" hole there so I used a backing plate to clamp the frame. There's also a hole behin… 1996 Ford Bronco - Quick Detachable 'Granny' Step & Mom. About 16" inches from the ground & 11" to the step board. (1/3/2004) 1996 Ford Bronco - Quick Detachable 'Granny' Step. About 16" inches from the ground & 11" to the step board. (1/3/2004) 1996 Ford Bronco - Rear Mount Location Used the large hole beneath the body mount with a backing plate to sandwich to the frame. Upward/Lift load gets transfe… 1996 Ford Bronco - Rear Frame Mount Close-Up 1996 Ford Bronco - Front Mounting Location Incorporated with lift kit radius arm bracket mounting. Toward the front of the main slider, along the left edge, t… 1996 Ford Bronco - Upward/Lift Force is Transferred to Front Body Support Structure Also seen are two drain holes for the cut-out to clear the front fender mo… 1996 Ford Bronco - Low-angle underside view of a white Ford Bronco showing a running board/nen bar step with a diamond-plate stair-style step, mounted below t… 1996 Ford Bronco - Low-angle shot of a white Ford Bronco's rocker panel and running board, showing a large off-road tire in the foreground and a mud flap behi…
