Transfer Upgrades, Electric to Manual 1356

From 1996 Ford Bronco, documented by Goose.

27 photos
← Back to this vehicle

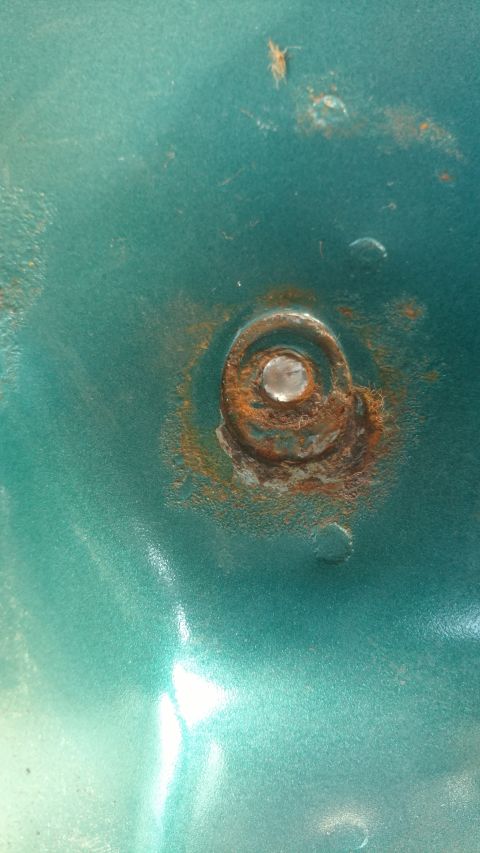

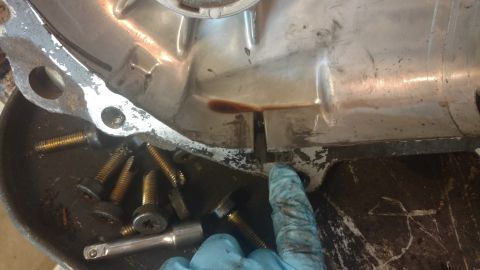

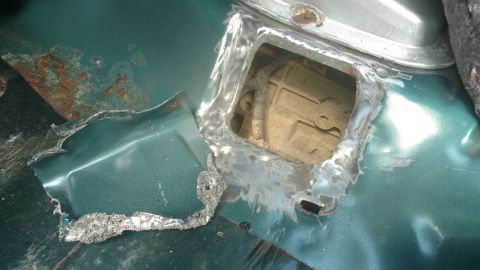

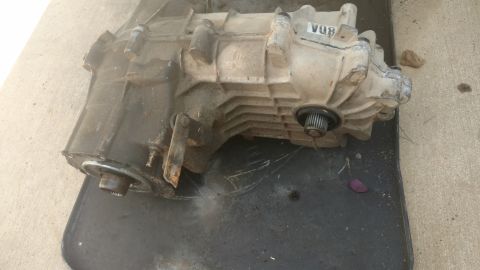

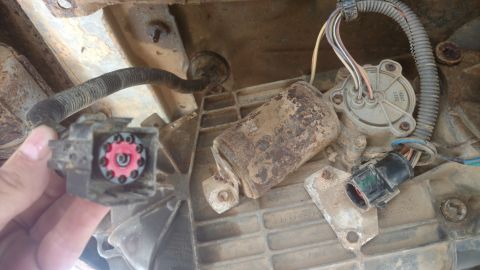

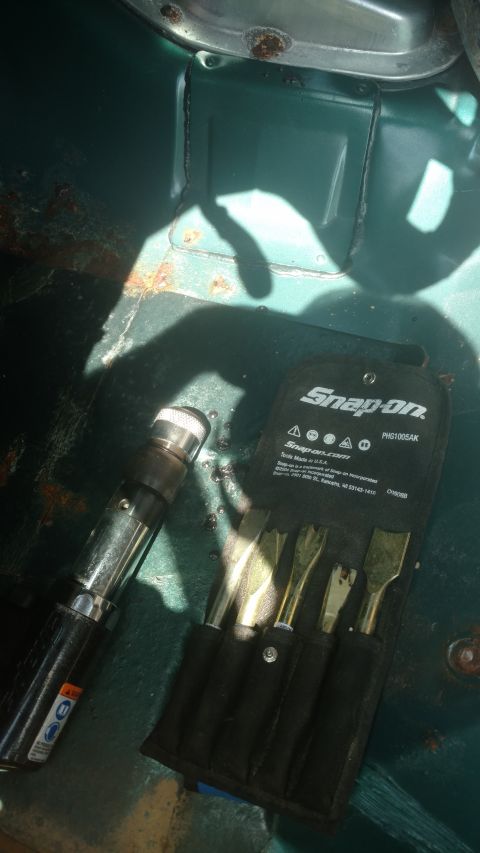

1996 Ford Bronco - Pieces parts gathered 1996 Ford Bronco - Factory cut out plate located, bottom of truck and looking up. Two large threaded holes on transmission are for the shift bracket mounting… 1996 Ford Bronco - Gotta research what these wires are for on the original electric 1356 case. 1996 Ford Bronco - Two of the four rear tail housing bolts. I will need to swap internal shafts and chain assembly to repair the Manual donor case and get it… 1996 Ford Bronco - Yep. . It's a 1356 manual case 1996 Ford Bronco - Pointing at 2 of the 4 bolts holding the tail housing on for the Manual case. These torx bolt will have to be removed to gain access to int… 1996 Ford Bronco - Grr. . Wrong tail housing and output shaft. 1996 Ford Bronco - Front output shaft damaged by previous owner. Snapped the yoke threads off. Plan is to swap in my current output shaft from the electric ca… 1996 Ford Bronco - Just another view of the front. 1996 Ford Bronco - Factory glued on cover. Also held on with four Phillips screws. Notice the nice shiny square hole? Don't use an air chisel, if you do then… 1996 Ford Bronco - Well this is gonna suck! One of two seat mounting bolts that broke off. Both were the outside bolt. $#@/ Rust. 1996 Ford Bronco - I thought this would be cake with an air hammer. . Till it made a square hole in the floor pan that wasn't needed. 1996 Ford Bronco - Truck tailshaft from the base of the housing/tail shaft joint to tip measures 7 3/4" ish long. 1996 Ford Bronco - Close-up of a transfer case component, possibly for an electric to manual upgrade. 1996 Ford Bronco - A splined shaft is measured with a yellow tape measure, indicating its dimensions for a part upgrade. 1996 Ford Bronco - Close-up of a mechanical part being worked on with tools. 1996 Ford Bronco - A gloved hand points to a seam on a metal transmission housing, with bolts nearby. 1996 Ford Bronco - Close-up of a bearing assembly with a yellow plastic ring being held by gloved hands. 1996 Ford Bronco - Close-up view of a bearing assembly, showing the ball bearings and metal housing. Text 'KOR' is visible on the inner race. 1996 Ford Bronco - Close-up of transfer case electrical connectors, one disconnected. 1996 Ford Bronco - Yahtzee!! Found the capped off harness connector above the transmission. This connector is where the short manual transfer case shift locat… 1996 Ford Bronco - A close-up view of a metal gear with numerous teeth, likely a component from a vehicle's drivetrain. 1996 Ford Bronco - Internal gears and splined shaft of a transfer case, likely part of a drivetrain upgrade. 1996 Ford Bronco - Close-up of two transfer case components with visible gears and splines. 1996 Ford Bronco - Two metal rings with internal teeth are shown. The ring on the left is a solid disc, while the ring on the right is attached to a wider, fl… 1996 Ford Bronco - Two transmission input shafts are shown in a close-up, side-by-side view. The shaft on the left has a gear and a ring assembly, while the s… 1996 Ford Bronco - Two transmission input shafts with gears and synchronizers are laid out on a metal surface. The shafts appear to be from a Ford Bronco.
