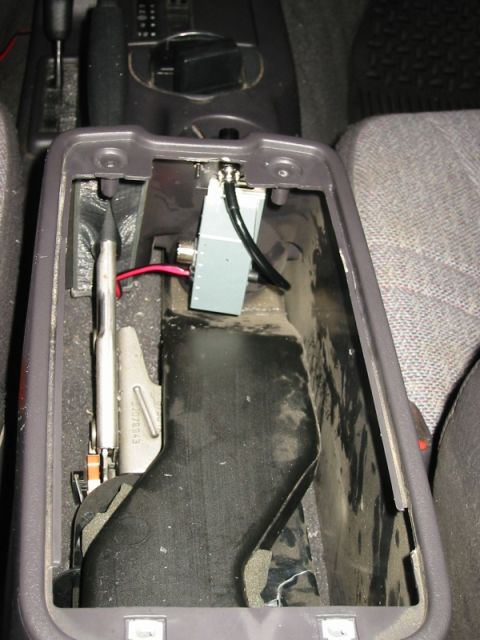

02 - transmitter mount.jpg
1256 hits | 60.03 KB | Posted: 3/4/05
Detail showing mounting location of Cobra 75 WX ST transmitter. It's a tight fit, but goes in witho...

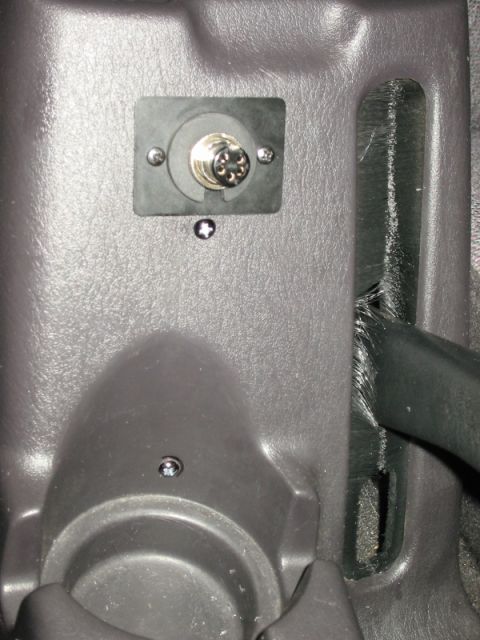

01 - connector.jpg
1152 hits | 58.9 KB | Posted: 3/4/05
Handset connector after installation.

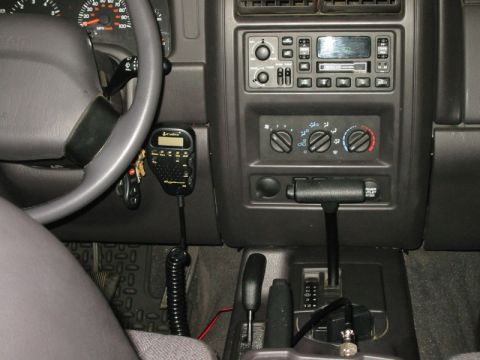

03 - handset location.jpg
1992 hits | 51.89 KB | Posted: 3/4/05
Early mounting location for the Cobra 75 WX ST handset. I later moved it into the panel directly ab...

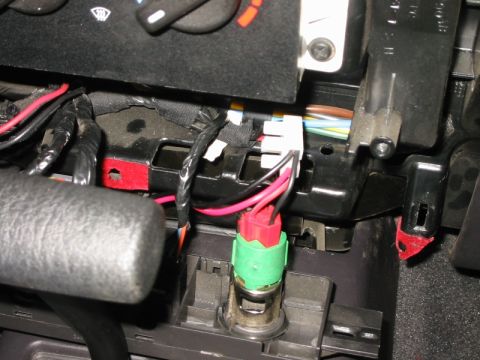

04 - electrical splice.jpg
1155 hits | 61.94 KB | Posted: 3/4/05
Detail showing location of splice for power to the transmitter. I chose to splice in to the 12V pow...

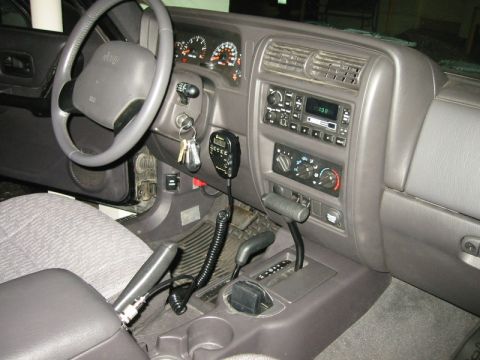

05 - all done.jpg
1464 hits | 59.79 KB | Posted: 3/4/05
The end result. I later moved the mounting location for the handset into the panel directly above w...
