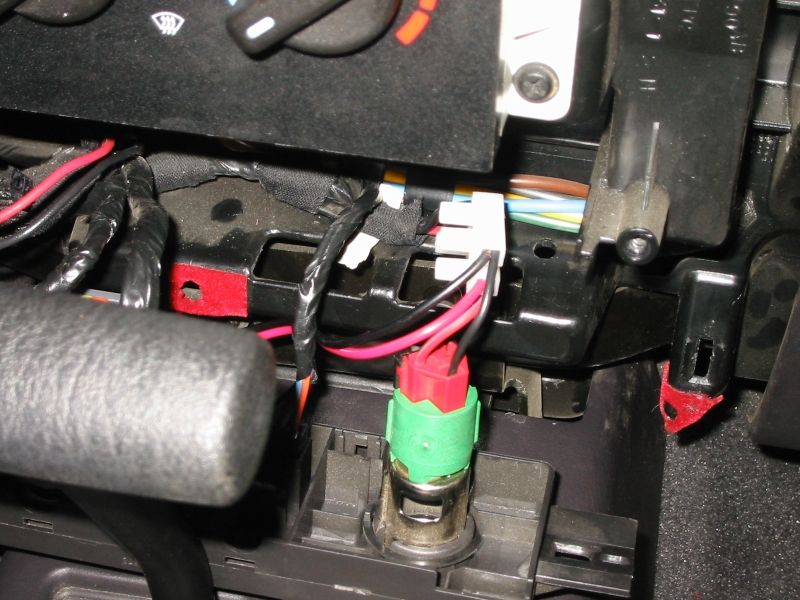

04--electrical-splice.jpg Detail showing location of splice for power to the transmitter. I chose to splice in to the 12V power connector rather than the cigarette lighter as I wanted to be able to use the radio with the engine switched off if necessary.
04--electrical-splice.jpg | Hits: 1155 | Posted on: 3/4/05 | View original size (371.78 KB)

Detail showing location of splice for power to the transmitter. I chose to splice in to the 12V power connector rather than the cigarette lighter as I wanted to be able to use the radio with the engine switched off if necessary.
