Album section

Installation

From 1991 Ford Explorer “Big Red Xpo” — documented by 91Sploder.

13 photos
← Back to this vehicle

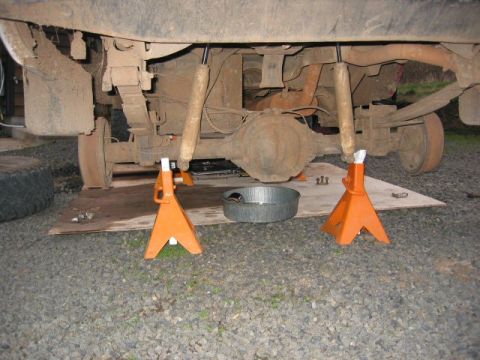

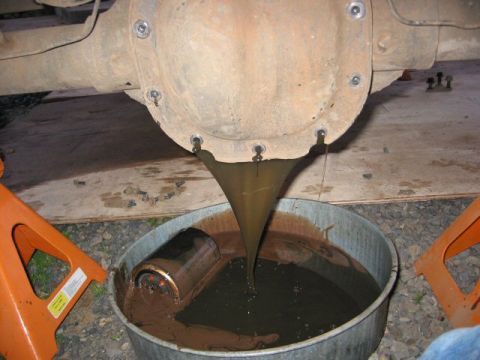

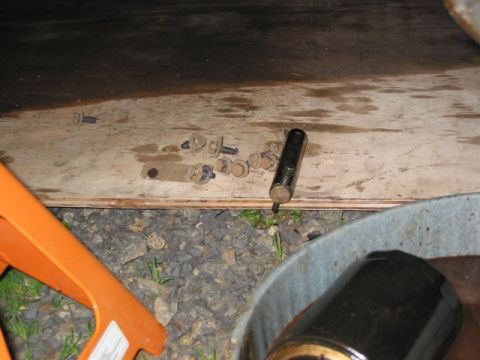

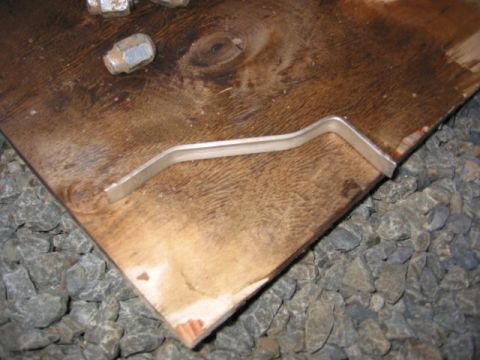

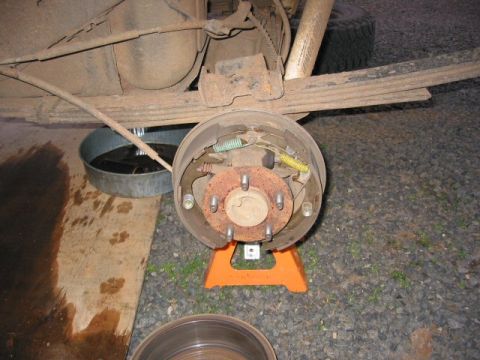

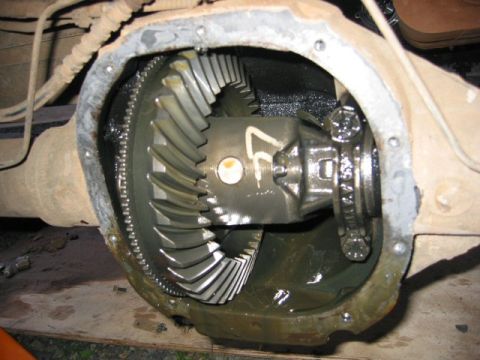

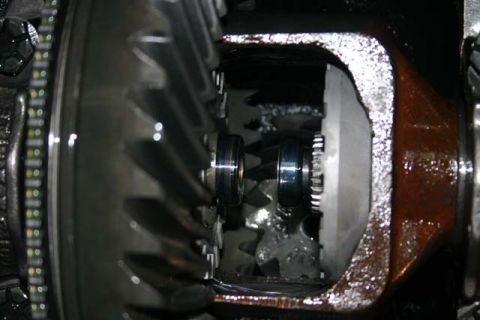

1991 Ford Explorer - Lug wrench and lug nuts are placed on a wooden surface with gravel in the background. 1991 Ford Explorer - The underside of a vehicle is shown, supported by jack stands, with a drain pan positioned below the rear axle. 1991 Ford Explorer - Close-up of a vehicle's rear drum brake assembly, supported by an orange jack stand. 1991 Ford Explorer - Old differential fluid drains into a pan, with the old filter submerged. The vehicle is supported by jack stands. 1991 Ford Explorer - Close-up of differential gears and housing, showing internal components. 1991 Ford Explorer - The differential housing is open, revealing the internal gears and components of the drivetrain. 1991 Ford Explorer - Close-up view of a vehicle's rear suspension components, including leaf springs and a differential gear. 1991 Ford Explorer - Leaf spring assembly detail, showing U-bolts and nuts securing the spring. 1991 Ford Explorer - A collection of bolts and a tool are placed on a wooden surface, possibly during a vehicle maintenance task. 1991 Ford Explorer - Close-up of differential gears, showing wear and lubricant. 1991 Ford Explorer - Differential gears are visible inside the housing. 1991 Ford Explorer - This image shows the internal components of a vehicle's differential, including gears and housing. 1991 Ford Explorer - Close-up of differential gears, showing internal components and teeth.
