Album section

air system

From 1994 Ford F-150 “BlackiE”, documented by MikE2.

15 photos
← Back to this vehicle

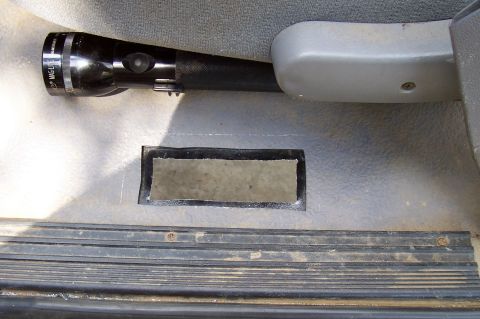

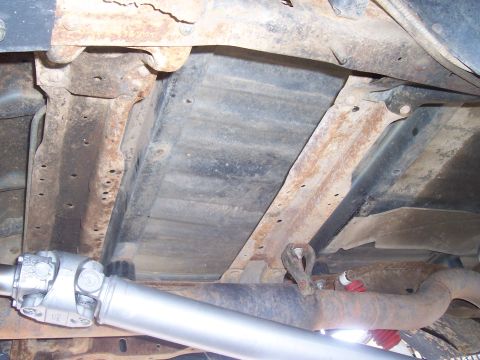

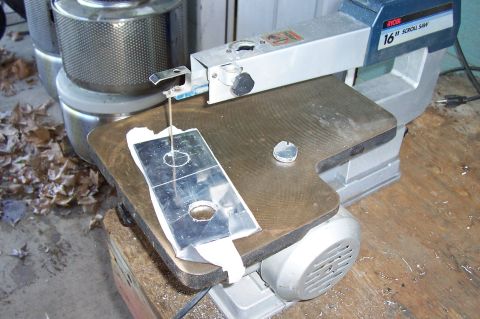

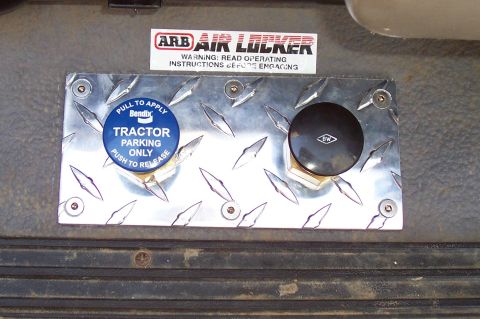

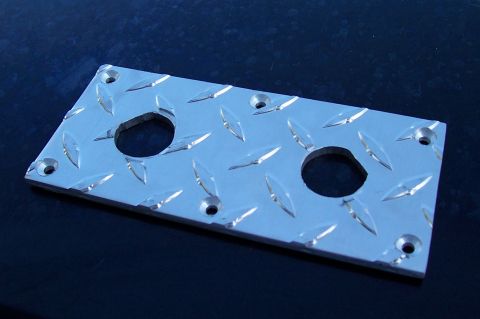

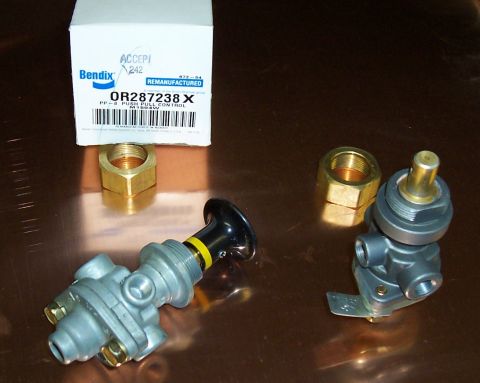

1994 Ford F-150 - Two Bendix air-brake push-pull control valves with brass mounting nuts laid on a copper-toned surface, one with a black knob and yellow ban… 1994 Ford F-150 - Ryobi 16" scroll saw cutting a metal piece with a blade. 1994 Ford F-150 - A Maglite flashlight is placed on the floor of a vehicle, next to a rectangular opening in the floor panel. 1994 Ford F-150 - A polished aluminum diamond-plate panel cut with two round holes and six countersunk mounting holes, resting on a dark blue painted surface… 1994 Ford F-150 - Custom diamond-plate panel screwed to a textured dash or console, mounting two yellow diamond-shaped Bendix air-brake control valves. The r… 1994 Ford F-150 - Two cast alloy air-brake valves bolted to a black painted body panel or cab floor, plumbed with hard copper lines and brass compression fit… 1994 Ford F-150 - Custom diamond-plate control panel screwed to a black interior panel, holding a blue Bendix "Tractor Parking Only" pull-to-apply air brake… 1994 Ford F-150 - A black cylindrical air brake reservoir tank lying on a concrete floor, with several ports still capped in orange plastic plugs and welded… 1994 Ford F-150 - The undercarriage of a truck, the driveshaft and exhaust pipe, with visible rust on the frame. 1994 Ford F-150 - Close-up view of vehicle undercarriage parts, showing rust and a blue hose. 1994 Ford F-150 - A truck raised on stands with a bare-metal driveshaft running from the transfer case down to the rear axle pinion, joined by a double-carda… 1994 Ford F-150 - Underside view of a vehicle's exhaust pipe and frame bracket assembly. 1994 Ford F-150 - A black bracket is attached to the rusty frame of a vehicle, with a blue cable secured by a zip tie. 1994 Ford F-150 - Underbody shot of a freshly painted black steel fuel tank strapped between the frame rails, with a brass fitting and small sender/vent hard… 1994 Ford F-150 - This photo shows the driveshaft and an air tank assembly underneath a vehicle.
