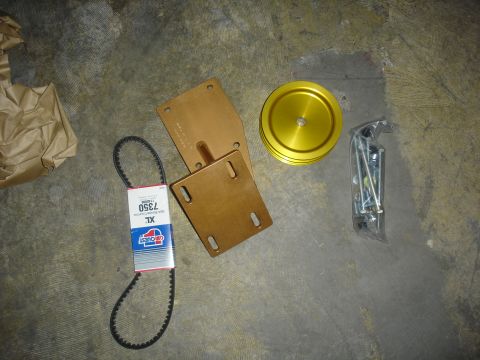

bronco 010.jpg 344 hits | 69.88 KB | Posted: 7/9/06 Bronco air OBA kit. I was tired of not being able to air up after a run. I usually only aired down t...

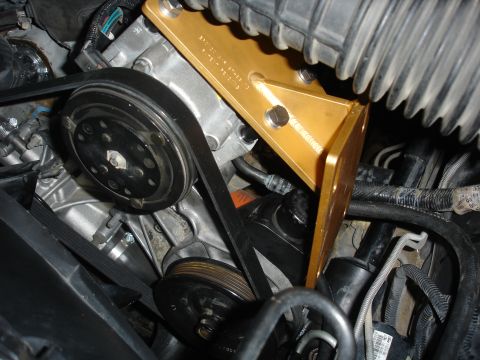

bronco 001.jpg 375 hits | 81.13 KB | Posted: 8/10/06 Bronco air bracket installed. I used 1/2" spacers on the top bolts and 1" spacers on the bottom bolt...

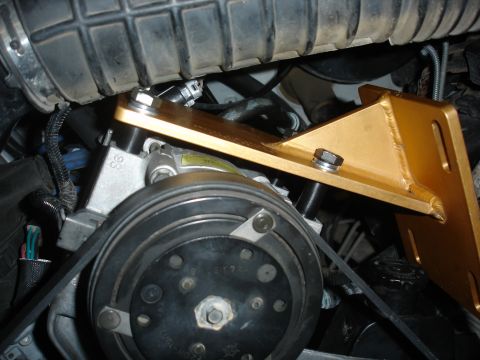

bronco 002.jpg 453 hits | 71.22 KB | Posted: 8/10/06 Close up shot of the spacers.

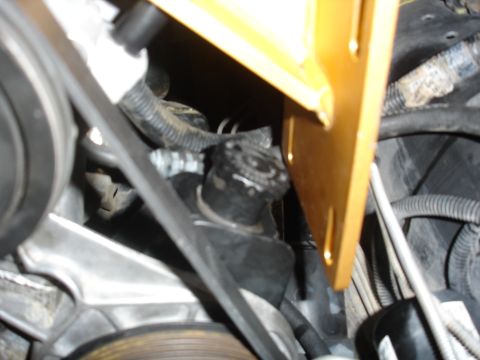

bronco 003.jpg 365 hits | 60.57 KB | Posted: 8/10/06 There's about a 1/4" clearance between the cap and bracket. Just enough to get the cap off.

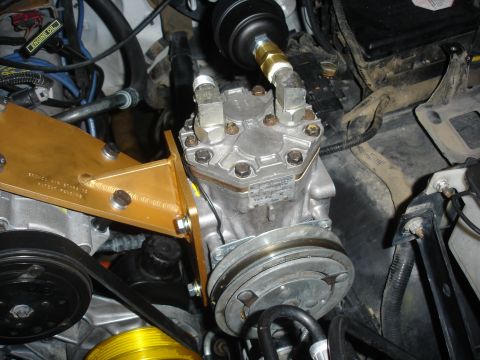

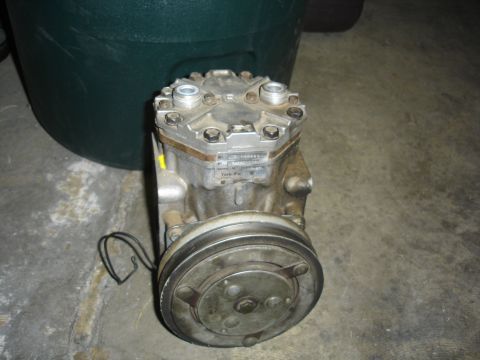

bronco 008.jpg 361 hits | 57.42 KB | Posted: 8/10/06 This is my York model 210 compressor. It came out of a 77' volvo. Intake is on the right if your loo...

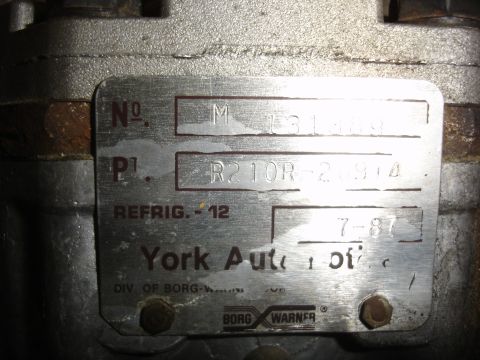

bronco 006.jpg 393 hits | 73.91 KB | Posted: 8/10/06 Close up of the tag.

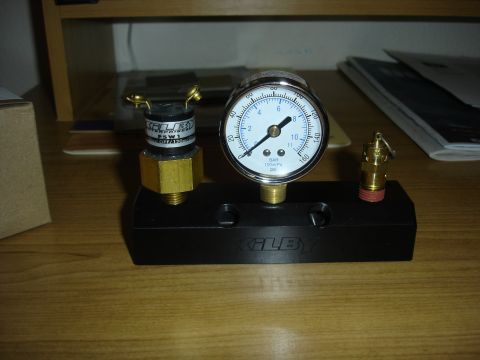

bronco 010.jpg 401 hits | 49.62 KB | Posted: 8/10/06 I ordered most of my accessories from Kilby enterprises. The cost wasn't much more than if I pieced ...

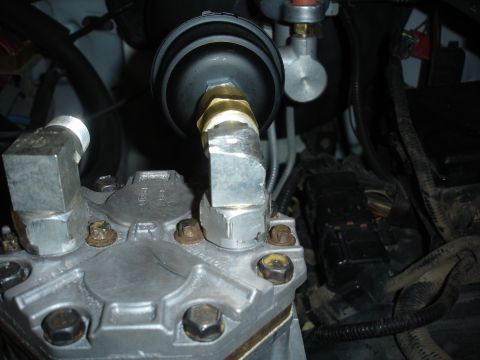

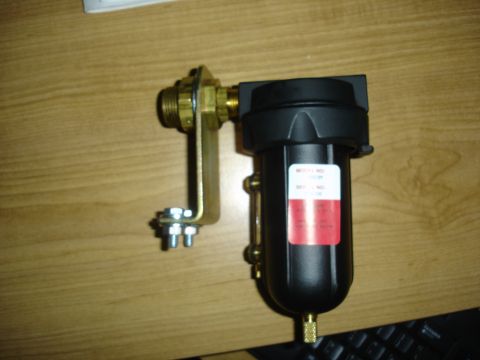

bronco 011.jpg 379 hits | 48.45 KB | Posted: 8/10/06 This is my coalescing filter and check valve also from kilby.
bronco 012.jpg 432 hits | 64.24 KB | Posted: 8/11/06 Oil return kit from Kilby. When the compressor runs they sometimes blow oil from the crank case into...

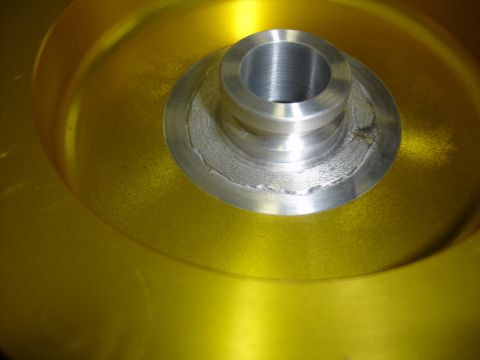

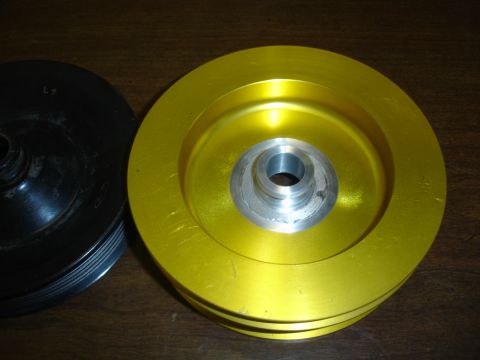

bronco 014.jpg 330 hits | 41.55 KB | Posted: 8/10/06 Since I did the saginaw swap I had to have the pulley machined for the bigger shaft on the new pump....

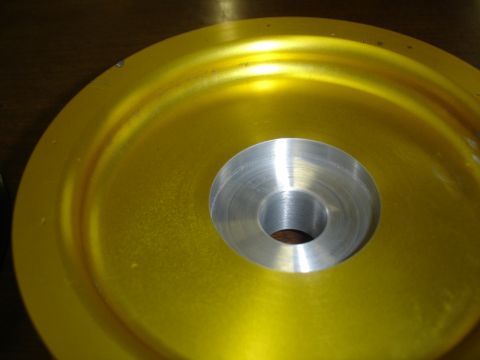

bronco 015.jpg 342 hits | 40.31 KB | Posted: 8/10/06 This is the back of the pulley. You can see they also bored out the back of the pulley so that it wo...
bronco 019.jpg 402 hits | 63.83 KB | Posted: 8/10/06 Here's where thing get interesting. Since I spaced the OBA bracket to allow the powersteering pump c...

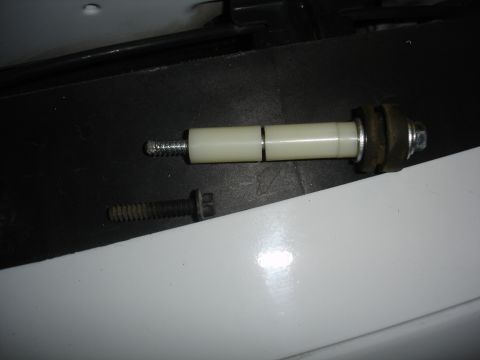

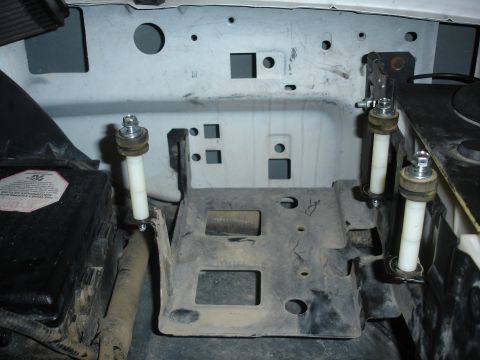

bronco 018.jpg 352 hits | 28.67 KB | Posted: 8/11/06 Spacers and longer bolts for the stock air box.

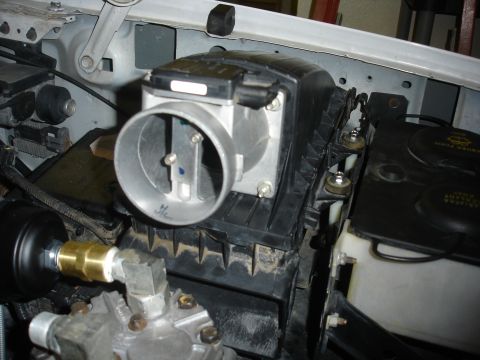

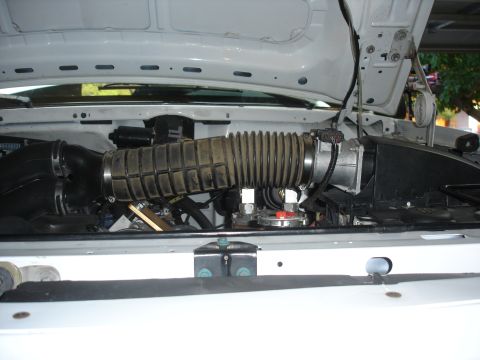

bronco 020.jpg 389 hits | 68.4 KB | Posted: 8/10/06 Air box reinstalled with spacers.

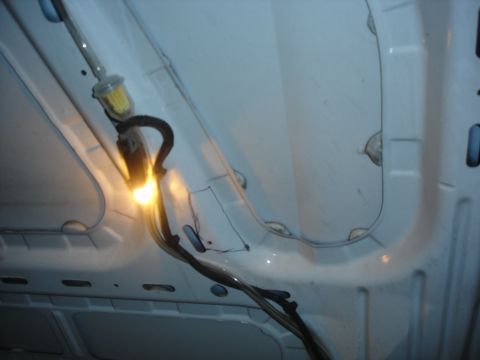

bronco 021.jpg 401 hits | 39.86 KB | Posted: 8/10/06 Spacing the box up caused clearance issue between the MAF and hood. You can see the offending area. ...

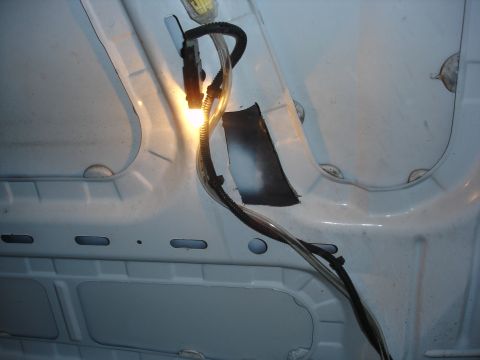

oba987.jpg 411 hits | 44.35 KB | Posted: 8/12/06 After cutting. There is plenty of room now.

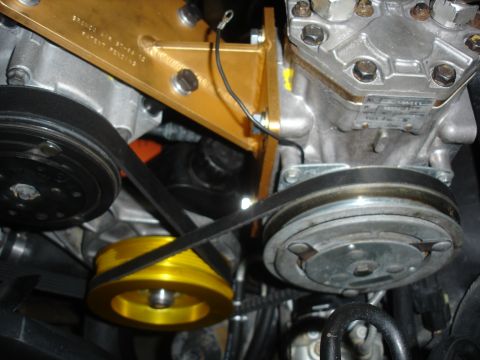

bronco 023.jpg 402 hits | 70.55 KB | Posted: 8/10/06 Belt installed and tightened down.

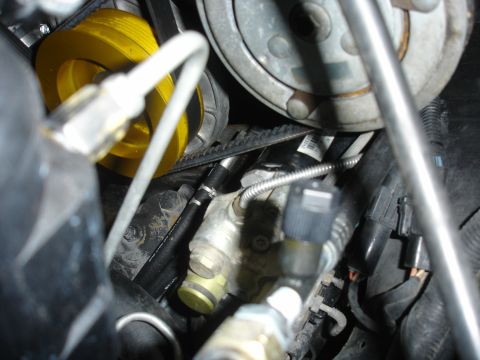

bronco 024.jpg 453 hits | 67.6 KB | Posted: 8/10/06 Spacing the bracket also caused clearance issues between the belt and ABS motor. I had to play with ...

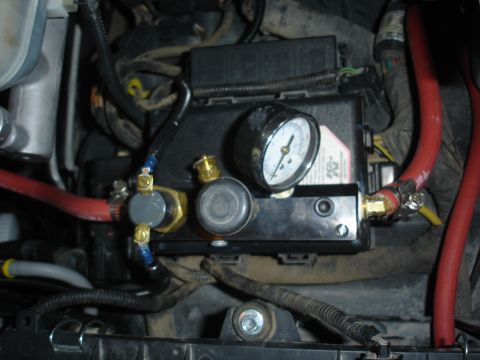

oba985.jpg 384 hits | 62.61 KB | Posted: 8/12/06 Picture of the Kilby manifold mounted to the fuse box on the driver side fender well.

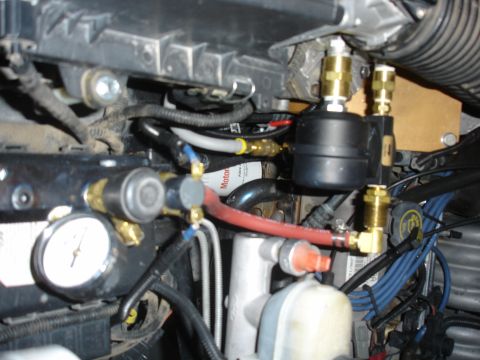

oba986.jpg 373 hits | 75.44 KB | Posted: 8/12/06 Another of the manifold. You can also see the Intake filter in the back ground.

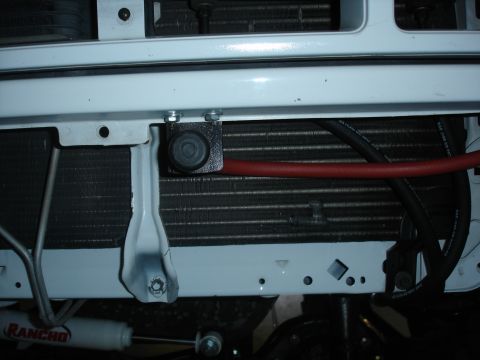

oba984.jpg 449 hits | 51.63 KB | Posted: 8/12/06 I ran only on outlet to the front of the truck temporarily. It's mounted to a bracket and tucked up ...
oba981.jpg 413 hits | 60.37 KB | Posted: 8/12/06 Interior picture of the switch. To the top and left of the trans temp gauge you can see a little red...
York OBA
