Transmission

From 1994 Ford Probe, documented by swilms.

20 photos
← Back to this vehicle

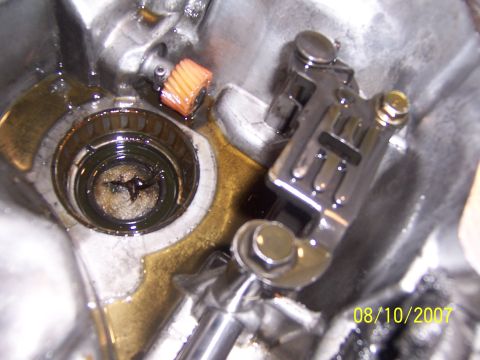

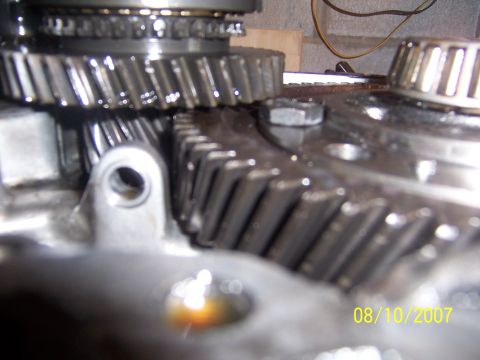

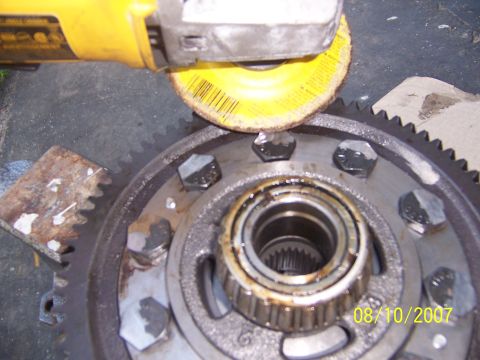

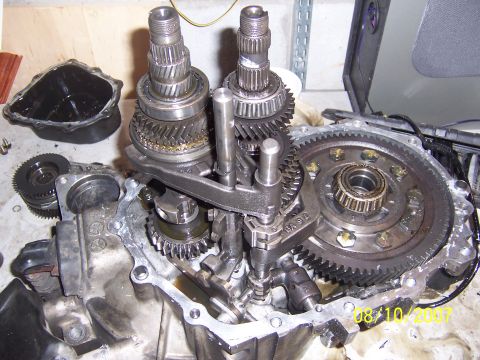

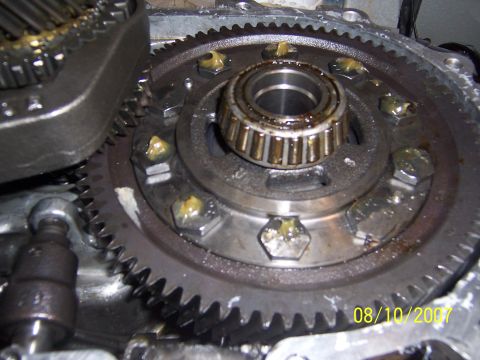

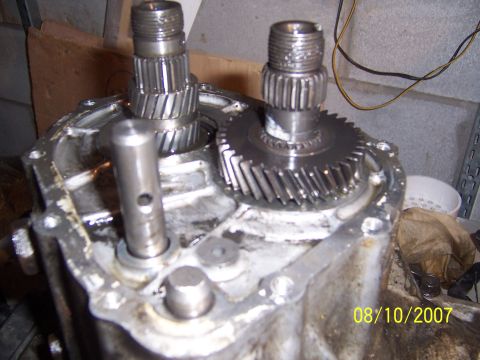

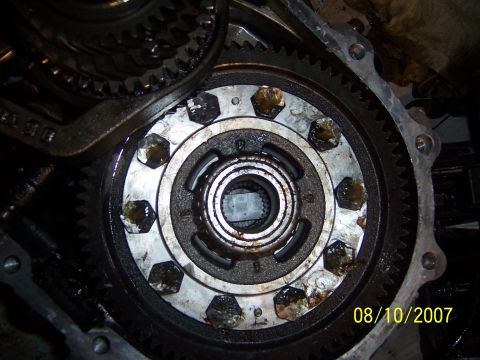

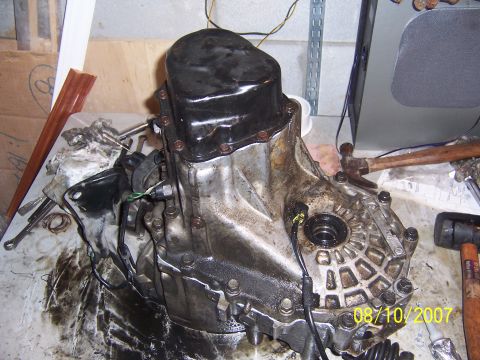

1994 Ford Probe - Center Punch Rivets 1994 Ford Probe - Pilot Drill 1994 Ford Probe - Drill 2 1994 Ford Probe - Drill 3 1994 Ford Probe - Final .50" bit. Head should pop off. 1994 Ford Probe - Step where speedometer gear sits is machined. MSP LSD is not. 1994 Ford Probe - Speedometer gear held in place with bearing. File chamfer on internal diameter of gear that faces the center of the LSD. This would be the… 1994 Ford Probe - Three different fasteners where tried. The one of the left is a 7/16-20 1inch long from ACE hardware. The center one is a Moroso Ford 9" ri… 1994 Ford Probe - All fasteners interfered with first gear and must be ground down. The Moroso head had the smallest height. 1994 Ford Probe - The nut will interfere as well. Might have to be ground if you don't use a thin nut. 1994 Ford Probe - Ground just enough off outer edge. 1994 Ford Probe - Side view of LSD with bearings 1994 Ford Probe - LSD installed. I put a dab of grease on each bolt and installed top half of trans case. I then rotated the first gear shaft which rotated t… 1994 Ford Probe - Top view of LSD 1994 Ford Probe - Internals 1994 Ford Probe - Case 1994 Ford Probe - Close-up view of internal transmission components, showing gears and shafts. 1994 Ford Probe - Transmission component with electrical sensor and wiring. Date stamp visible: 08/10/2007. 1994 Ford Probe - This image shows the intricate workings of a vehicle's transmission, focusing on the gears and linkages. 1994 Ford Probe - Internal view of a vehicle's transmission gears, showing lubrication and mechanical components.
