343 hits | 52.47 KB | Posted: 12/11/06
Tony loosening lug nuts

333 hits | 41.97 KB | Posted: 12/11/06

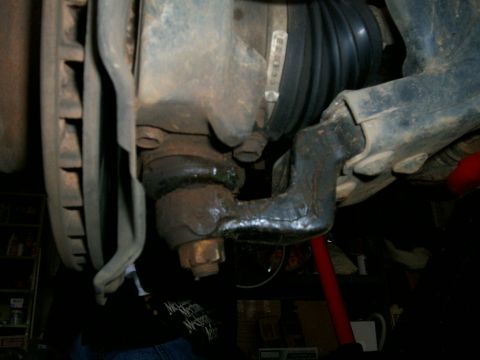

lower ball joint

302 hits | 66.88 KB | Posted: 12/11/06
Keith loosening the four lower ball joint bolts

290 hits | 44.72 KB | Posted: 12/11/06

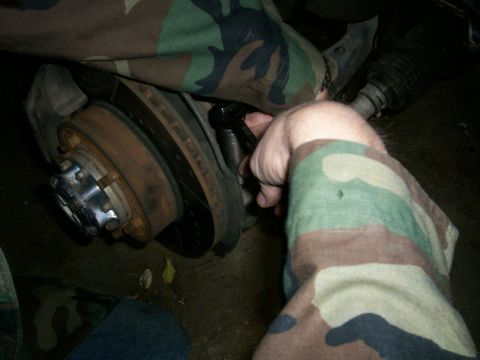

Loosening tie rod castle nut

311 hits | 34.62 KB | Posted: 12/11/06

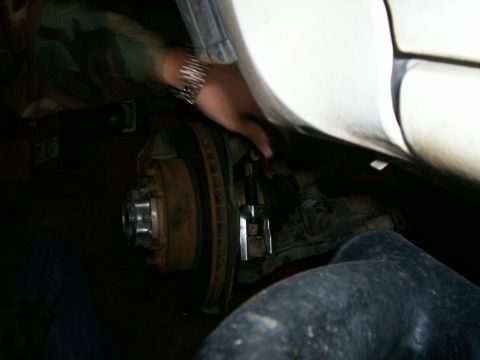

Fastening two jaw puller over threaded tie rod stud

312 hits | 47.99 KB | Posted: 12/11/06

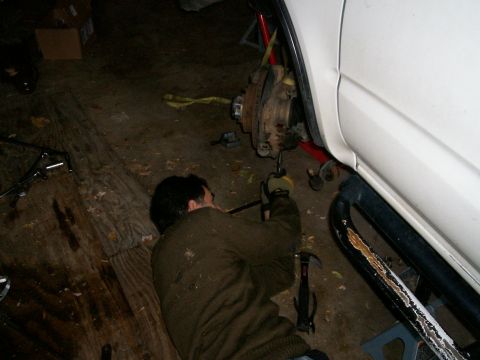

Ed removing four lower ball joint bolts and castle nut

383 hits | 67.03 KB | Posted: 12/11/06

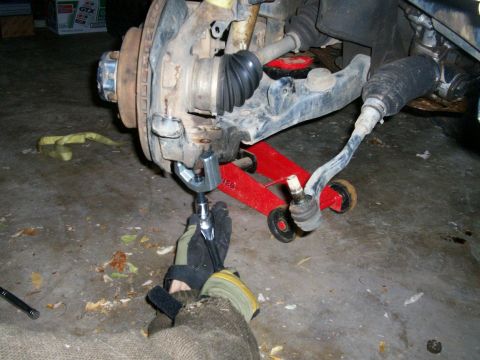

Fastening bigger two jaw puller over lower ball joint threaded stud

498 hits | 45.71 KB | Posted: 12/11/06

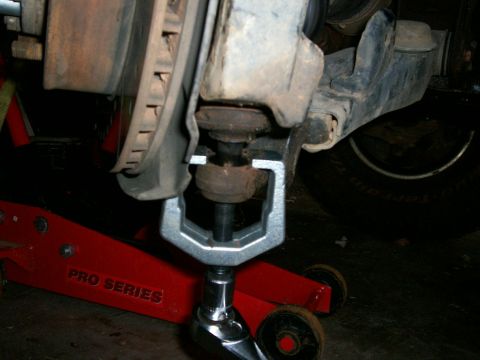

Another shot showing two jaw puller pressing out lower ball joint

290 hits | 57.51 KB | Posted: 12/11/06

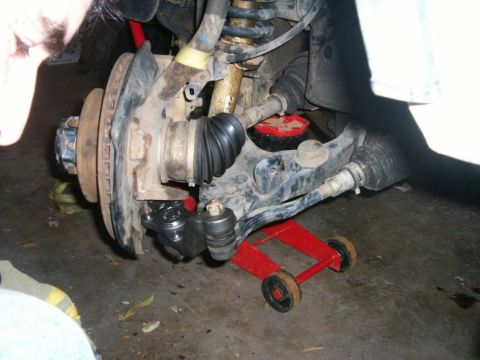

New lower ball joint fastened onto knuckle/spindle with tie rod end bolted up to it

333 hits | 68.92 KB | Posted: 12/11/06

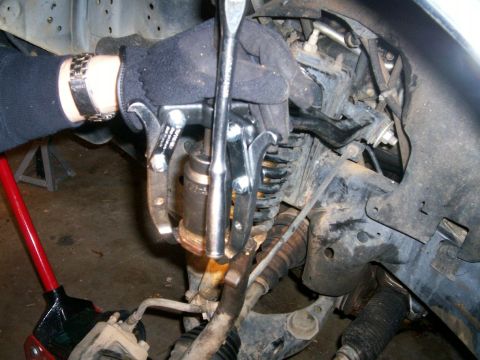

Three jaw puller and 36 mm socket pressing out upper ball joint from knuckle/spindle

543 hits | 72.53 KB | Posted: 12/11/06

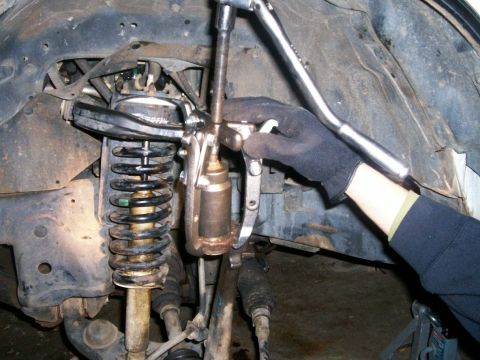

Another shot of three jaw puller and 36 mm socket pressing out upper ball joint. A small bolt was p...

360 hits | 73.39 KB | Posted: 12/11/06

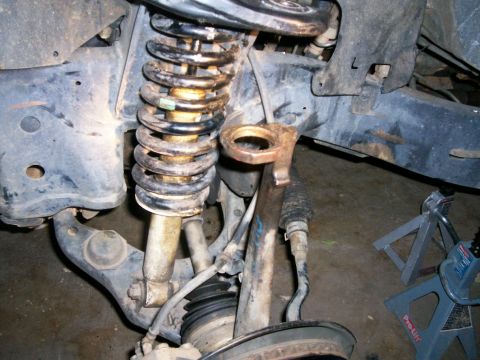

Knuckle/spindle with upper ball joint removed

380 hits | 77.1 KB | Posted: 12/11/06

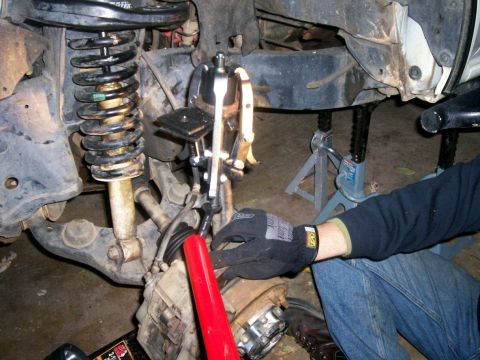

Pressing new upper ball joint into knuckle spindle using three jaw puller, harbor freight ball joint...

302 hits | 50.18 KB | Posted: 12/11/06

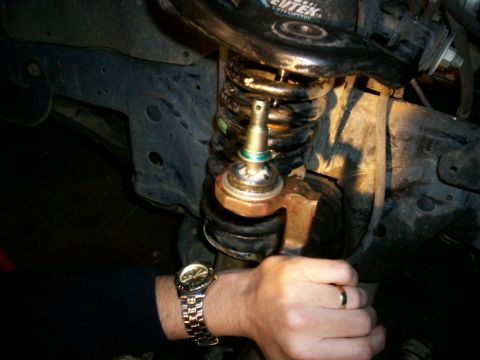

New upper ball joint pressed into knuckle/spindle

313 hits | 69.42 KB | Posted: 12/11/06

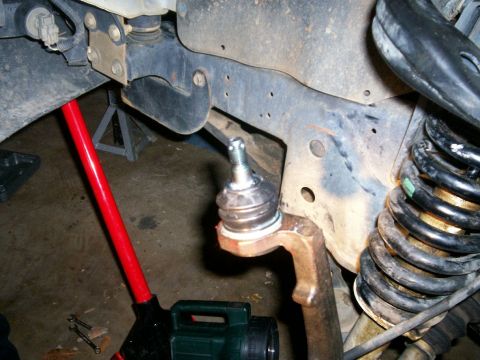

New upper ball joint boot slipped on after filling it with supplied grease.

310 hits | 75.8 KB | Posted: 12/11/06

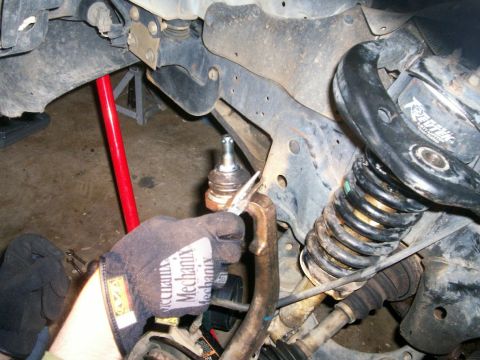

Upper ball joint boot wire fastened and tightened around boot

355 hits | 54.31 KB | Posted: 12/13/06

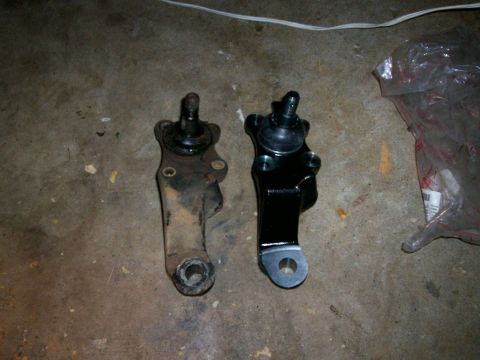

old and new lower ball joints side by side

311 hits | 53.59 KB | Posted: 12/13/06

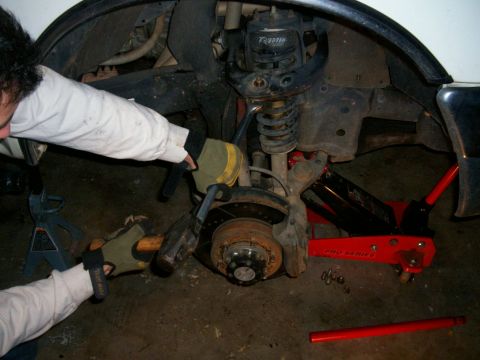

pickle forking upper bj from upper control arm

364 hits | 44.27 KB | Posted: 12/13/06
Wade having fun hammering the pickle fork

355 hits | 45.75 KB | Posted: 12/13/06

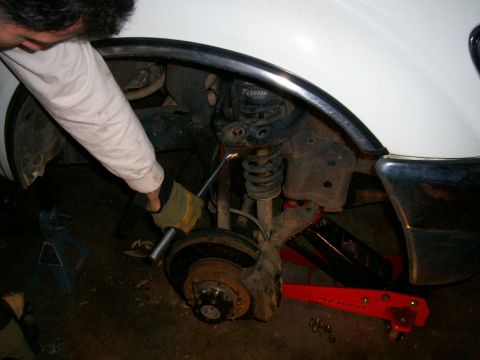

Separating upper bj from upper ca

328 hits | 55.33 KB | Posted: 12/13/06

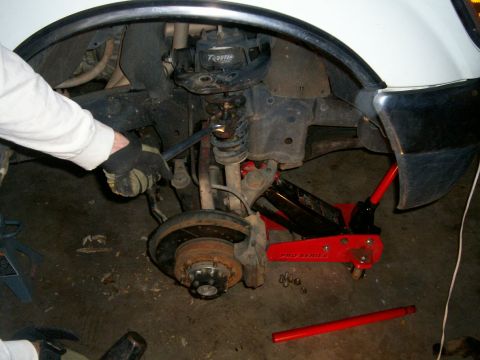

upper bj removed from upper ca

328 hits | 66.64 KB | Posted: 12/13/06

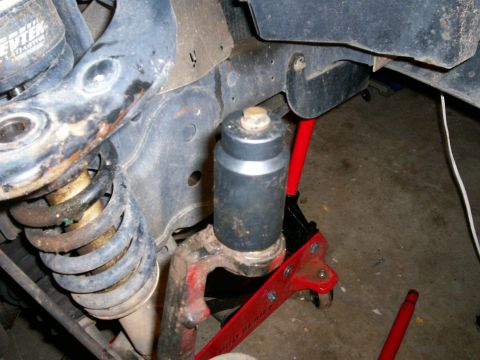

Prepping upper bj to be pressed out of knuckle using 36 mm socket with bolt on top

301 hits | 69.38 KB | Posted: 12/13/06

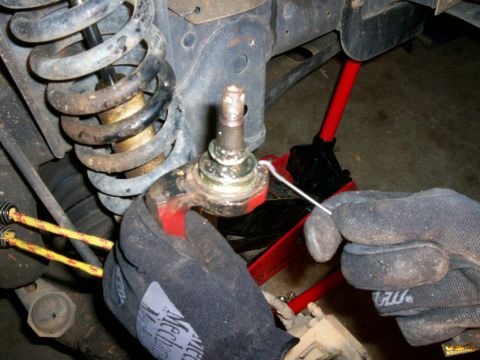

Removing snap ring

303 hits | 68.52 KB | Posted: 12/13/06

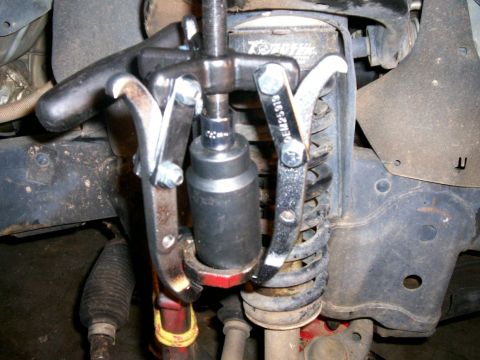

Setting up 3-jaw puller to press out upper bj from knuckle

309 hits | 60.64 KB | Posted: 12/13/06

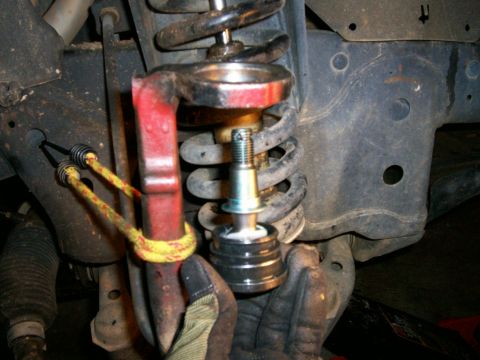

Prepping new bj to be pressed into upper ca

313 hits | 63.34 KB | Posted: 12/13/06

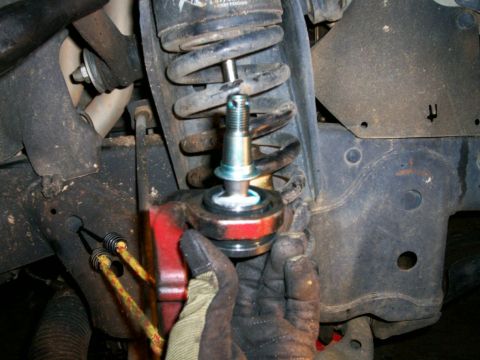

New bj about to be pressed into knuckle

295 hits | 62.66 KB | Posted: 12/13/06

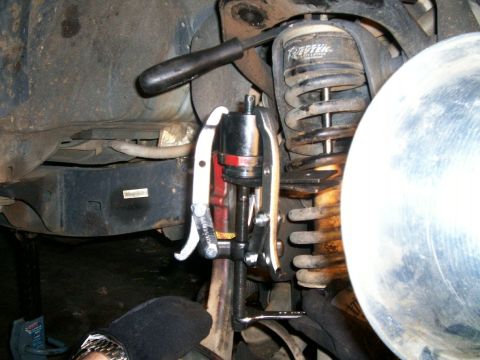

Setting up 3-jaw puller to press new bj into knuckle

309 hits | 59 KB | Posted: 12/13/06

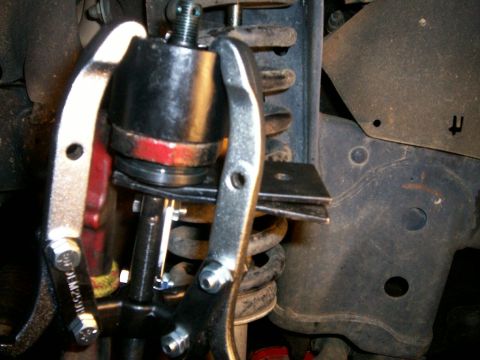

3-jaw puller pressing new bj into knuckle - note steel plates underneath bj to keep puller stud from...

294 hits | 69.43 KB | Posted: 12/13/06

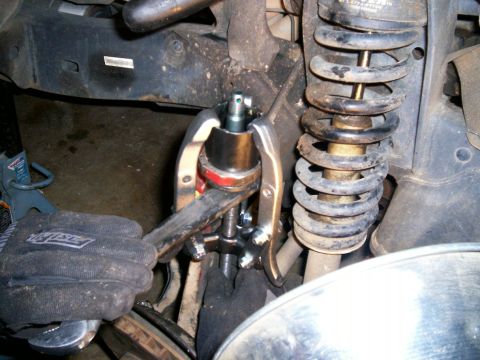

Using a big wrench under bj to help press new bj in more evenly and to prevent stud from puncturing ...

316 hits | 73.53 KB | Posted: 12/13/06

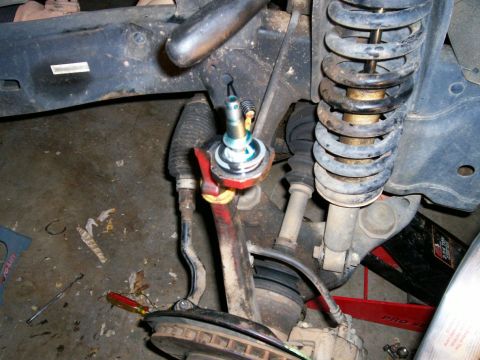

New bj pressed into pass side knuckle

334 hits | 56.32 KB | Posted: 12/13/06

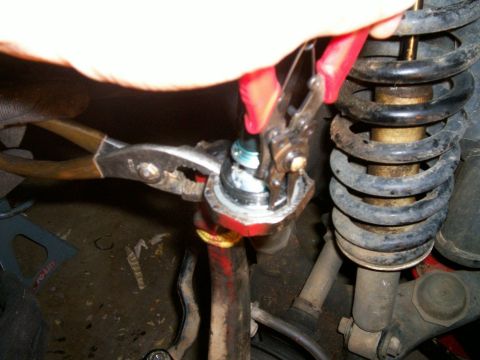

Placing new snap ring onto upper bj and knuckle

317 hits | 49.66 KB | Posted: 12/13/06

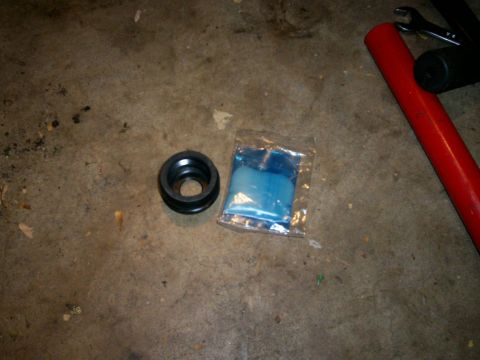

Upper bj boot and supplied grease still in packet

339 hits | 51.31 KB | Posted: 12/13/06

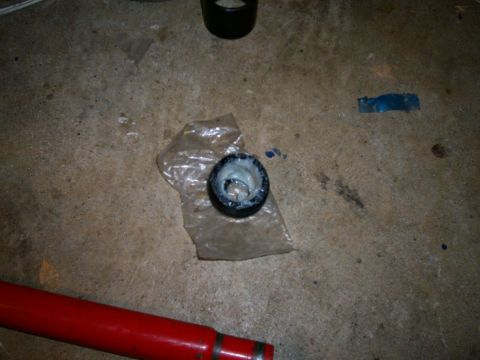

Upper bj boot filled with grease
