SurTrack BM-8022 CV Axle Specs – 26 3/8" Length, 100mm 6-Hole Flange, 27 Splines

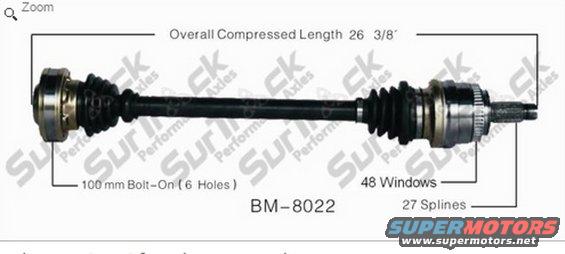

This document is a product illustration/specification image for a CV axle (drive axle half-shaft) sold under the SurTrack Performance Axles brand, part number BM-8022. The image shows a complete constant-velocity axle assembly with rubber boots on both ends, annotated with key fitment dimensions: an overall compressed length of 26-3/8 inches, a 100 mm bolt-on flange with 6 holes on one end, a joint with 48 windows, and 27 splines on the outer stub shaft. The 'BM' prefix and callout style are typical of aftermarket axle catalog listings. A reader can use this image to verify whether the BM-8022 axle matches their vehicle by comparing the compressed length, flange bolt pattern (100 mm, 6-hole bolt-on), spline count (27), and ABS tone ring window count (48). The image carries a 'Zoom' interface label and a repeating SurTrack watermark, indicating it was captured from an online parts listing. No vehicle year, make, or model applicability is stated on the document itself, so fitment must be confirmed against a catalog.
