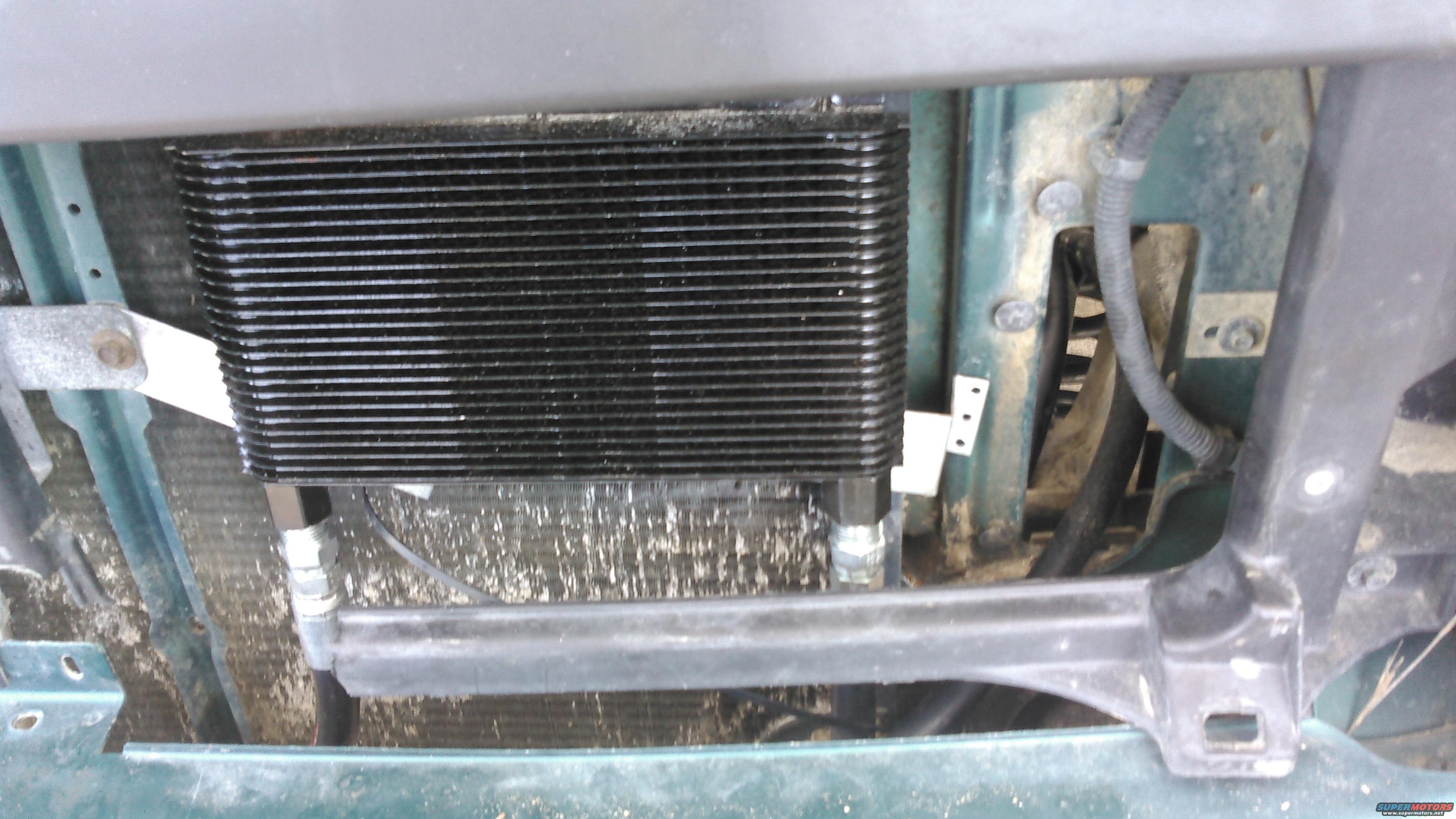

i have an finned oil cooler installed in front of the condenser behind the grill in a nice open spot. i fabricated some mounts to keep it well secured to the core support without rubbing the condensor. the cooler used female 1/2 inch NPT ports. i have the ports pointing downward for this setup
the hose on the right connects to the engine and is ran through a gap under and between the core support and the frame. it allowed me to flex the hose to come up vertically with no stress on the pipe.
the hose on the left is running to the remote oil filter. it is going left through the cutout of the core support on passenger side. there was plenty of room for the hose to be pointed vertically and flex with no stress
both hoses connecting to the cooler have swivels on these ends
the hose on the right through the cutout of the core support is not connected to the cooler. it is running form the engine to the remote oil filter. it runs to the other side cutout
|
