Left side: the low beam housing is right next to the fender. Twi…

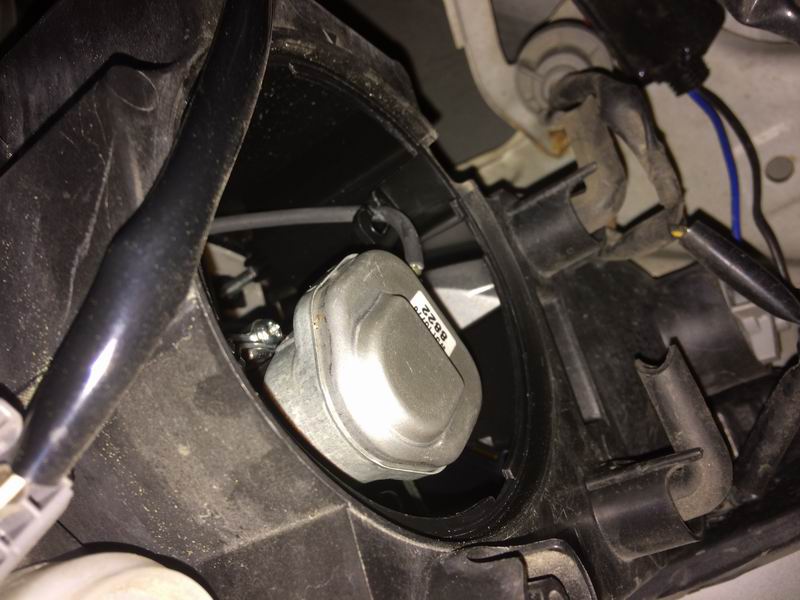

Left side: the low beam housing is right next to the fender. Twist off the weather cap, twist off the electrical connector, unclip the two bulb retainer arms (push in each arm so it can move outwards), pivot the retainer downwards and pull the bulb out.
