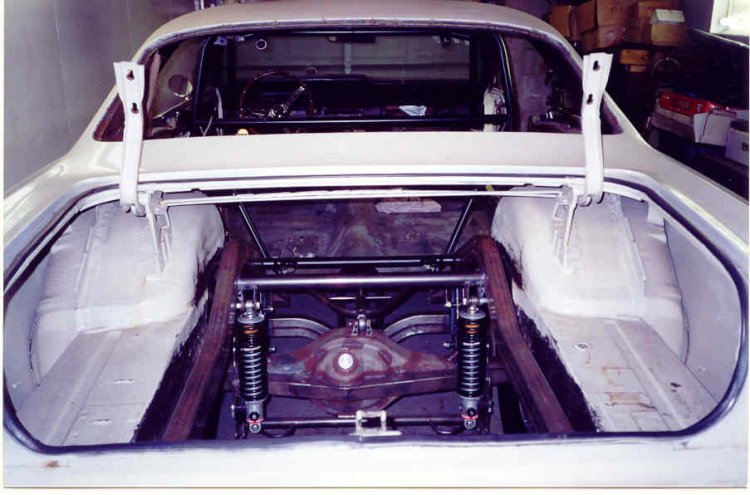

Open trunk of a stripped cream Ford hardtop showing a fabricated drag-race rear suspension: a four-link with tubular crossmember, coilover shocks and a narrowed rear axle housing visible through the mini-tubbed floor. Bare metal wheel tubs, the trunk hinges and a tubular chassis brace above the opening are all in view in a home garage.

AI caption May 2004 · Photo 29 of 150
