Suzuki DR-Z400S Front Fork Inspection - Spring Free Length & Seal Removal

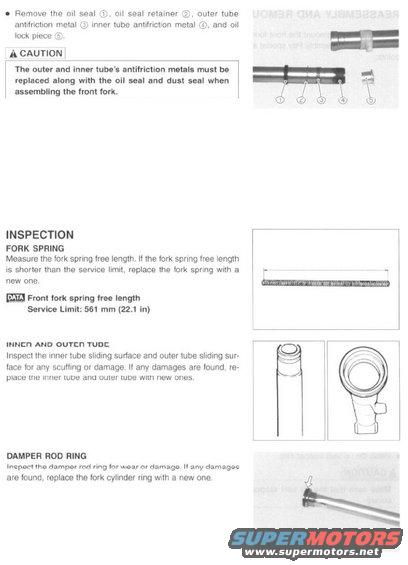

This is one page of a motorcycle service manual covering front fork disassembly and inspection procedures. The top section instructs the mechanic to remove the oil seal (1), oil seal retainer (2), outer tube antifriction metal (3), inner tube antifriction metal (4), and oil lock piece (5), accompanied by an exploded illustration of these components on the fork tube. A CAUTION box states that the outer and inner tube's antifriction metals must be replaced along with the oil seal and dust seal whenever the front fork is assembled. The INSPECTION section covers three checks: (1) Fork Spring — measure the free length and replace the spring if it is shorter than the service limit of 561 mm (22.1 in); (2) Inner and Outer Tube — inspect the sliding surfaces for scuffing or damage and replace both tubes if damage is found; (3) Damper Rod Ring — inspect for wear or damage and replace the fork cylinder ring if damaged. Illustrations show the fork spring measurement, the inner and outer tubes, and the damper rod ring location. The page was uploaded to a 2005 Suzuki DR-Z400S gallery, though the page itself does not state model or year applicability.
