Instrument cluster PCB with gauge motors and LCD, plus black hou…

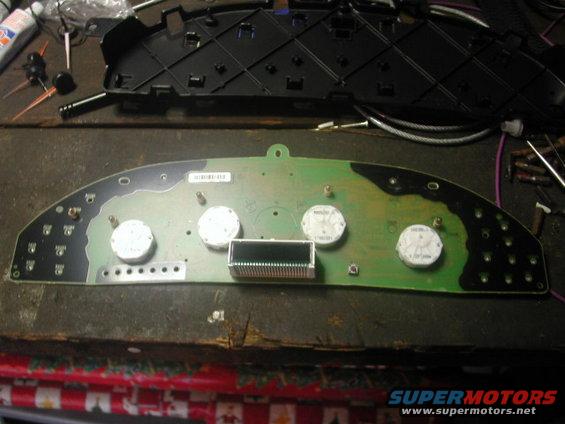

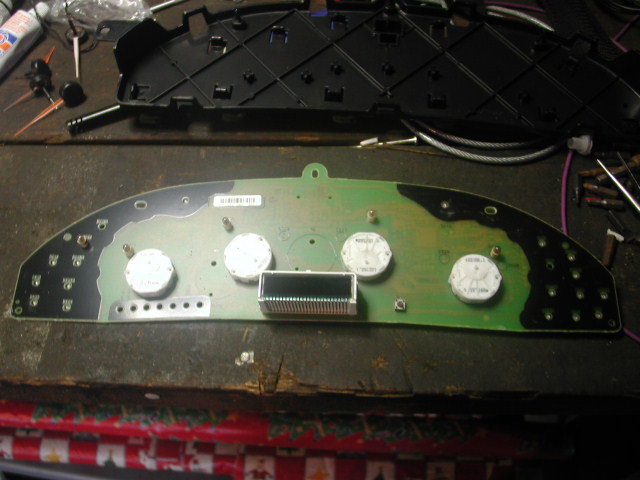

Instrument cluster PCB with gauge motors and LCD, plus black housing on workbench

Disassembled instrument cluster circuit board removed from its black plastic housing, showing four round gauge stepper motors, a rectangular LCD display, and a green PCB with a barcode label. The parts rest on a worn wooden workbench with scattered tools and small hardware.

AI caption · Photo 71 of 77

Is this accurate? Sign in to help verify it.
