Merkur Scorpio Exterior Dimensions Diagram - Length, Width, Height, Wheelbase

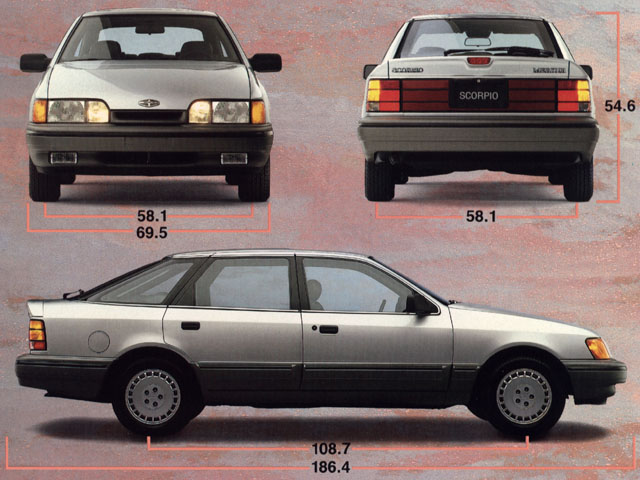

This document is a brochure-style dimensions diagram showing three photographic views (front, rear, and side profile) of a silver Scorpio five-door hatchback sedan. Red dimension lines with numeric callouts overlay each photo. From the front view, the diagram indicates a track width of 58.1 and an overall width of 69.5. The rear view repeats the 58.1 track width and shows an overall height of 54.6. The side profile shows a wheelbase of 108.7 and an overall length of 186.4. Units are not labeled but are consistent with inches. The rear hatch clearly displays the model name 'SCORPIO' on a plate panel between the taillights, with a badge on the left reading 'SCORPIO' and another badge on the right (appearing to read 'MERKUR'). No year, engine, part numbers, or additional specifications are printed on the image. A reader can learn the vehicle's basic exterior dimensions — length, width, height, wheelbase, and front/rear track — as presented in factory marketing literature. Note that although this scan was uploaded to a 1975 Ford Torino gallery, the vehicle depicted is a Scorpio, not a Torino.
