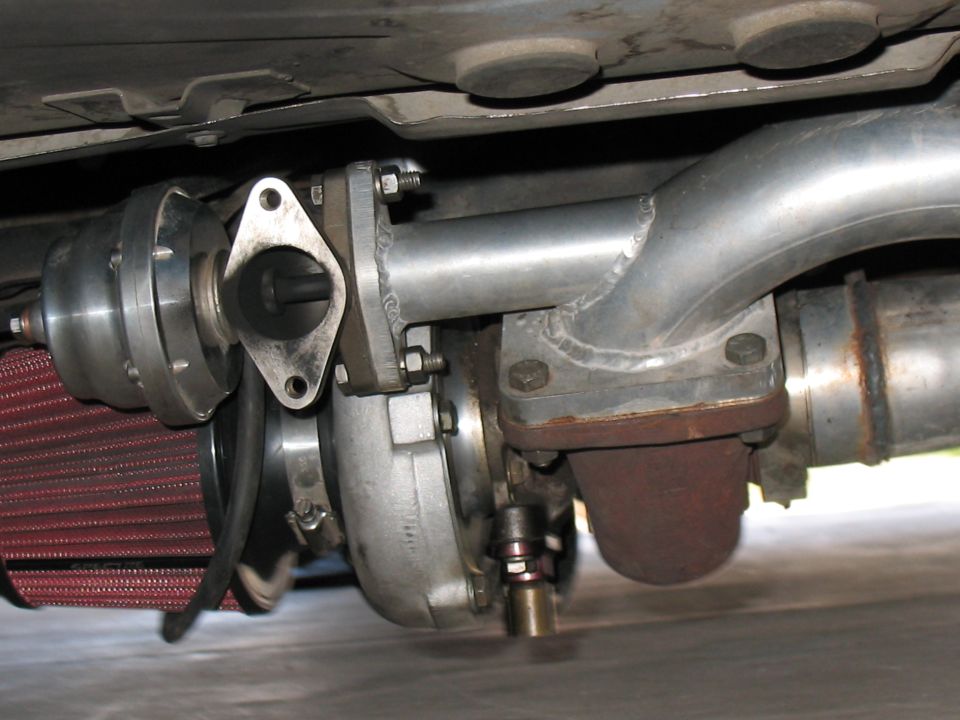

Underbody close-up of a turbocharger mounted below the floorpan, with the cast compressor and turbine housings bolted to a flanged manifold, a blow-off or bypass valve on the polished compressor outlet, and a red oiled cone air filter feeding the inlet. Welded aluminized charge and exhaust tubing runs to the right past a rusted V-band collector.
