5-LED Wedge Base Bulb Dimensions Diagram - WLED-x5 T10 Blueprint (mm)

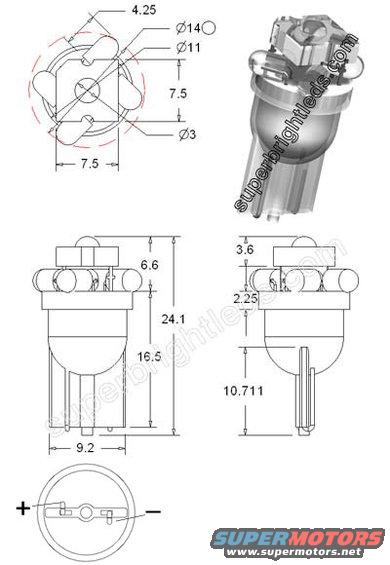

This document is a mechanical dimensional drawing (blueprint) of a 5-LED wedge-base miniature bulb, watermarked with 'superbrightleds.com' and filed under the name WLED-x5. It presents four orthographic views plus a shaded 3D rendering of the lamp. The top view shows five LEDs (one center, four angled outward) with an overall diameter of Ø14 mm, an inner body diameter of Ø11 mm, individual LED diameter of Ø3 mm, and LED spacing dimensions of 7.5 mm and 4.25 mm. The front elevation gives an overall height of 24.1 mm, a body height of 16.5 mm below the LED head, an LED head height of 6.6 mm, and a base width of 9.2 mm. The side elevation shows a 3.6 mm LED protrusion, a 2.25 mm shoulder, and a 10.711 mm wedge-base contact length. The bottom view indicates the electrical polarity of the wedge base with + and − markings on opposite sides of the base contacts. From this drawing a reader can verify whether this LED replacement bulb will physically fit a T10/194-style wedge socket application and determine correct installation orientation for polarity-sensitive LED bulbs. No vehicle make, model, or year is stated on the document itself.
