Engine bay wiring and relays with parts list

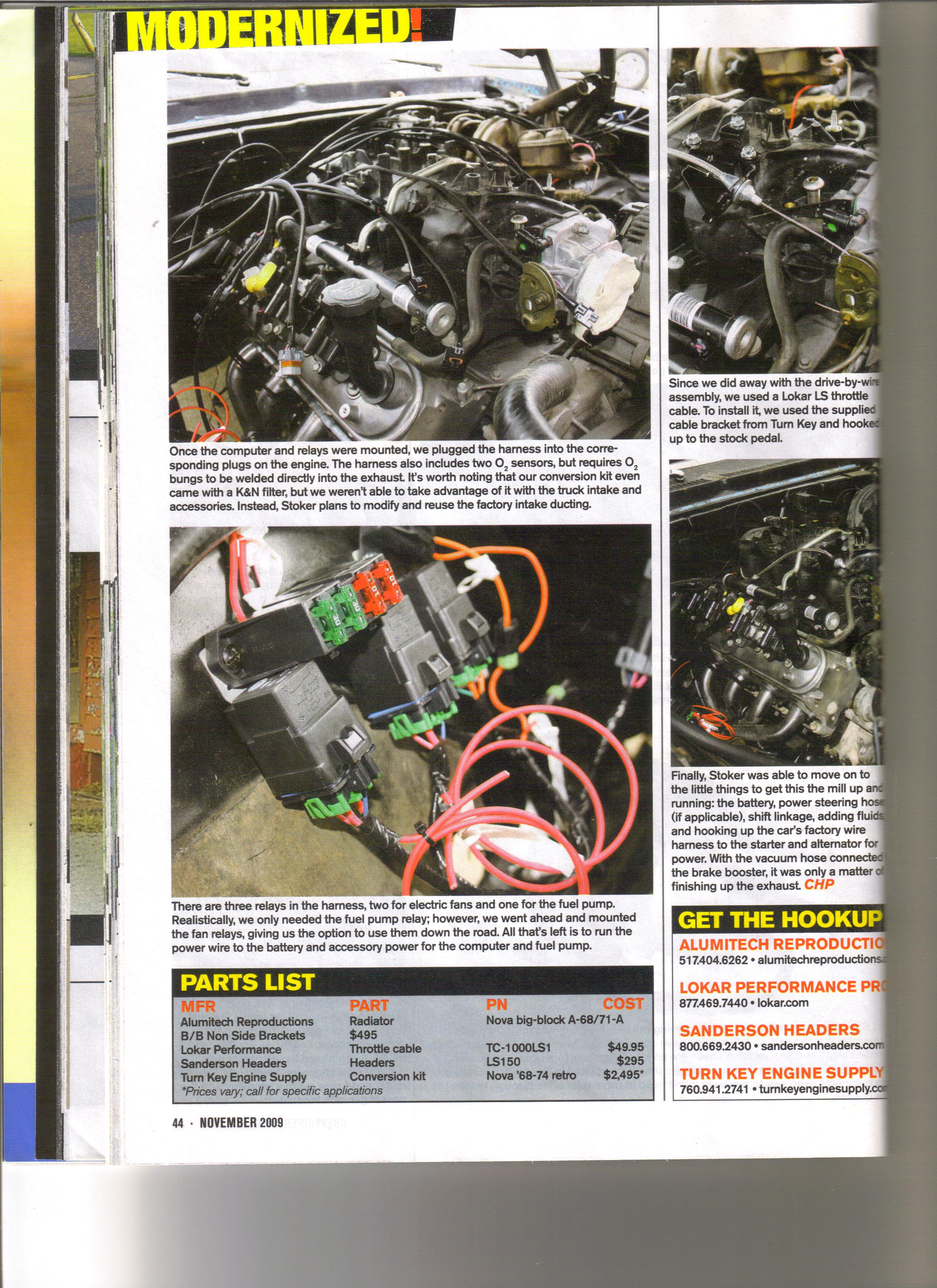

Since we did away with the drive-by- assembly, we used a Lokar LS throttle . ' , , , ' cable. To install it, we used the suppli >- 1 ~ ' ' cable bracket from Turn Ke and hook 3 '1' ' * y ' * ' " u tothestock al. Once the computer and relays were mounted, we plugged the harness into the corre- p ped sponding plugs on the engine. The harness also includes two 02 sensors, but requires 02 bungs to be welded directly into the exhaust It's worth noting that our conversion kit even came with a K&N filter, but we werent able to take advantage of it with the truck intake and awessories. Instead, Stoker plans to modify and reuse the factory intake ducting. Finally, Stoker was able to move on to the little things to get this the mill up a running: the battery, power steering h- > (if applicable), shift linkage, adding flu': and hooking up the cars factory wire harness to the starter and alternator for power. Vith the vacuum hose conn .,, the brake booster, it was only a matter . finishing up the exhaust. CHP There are three relays in the harness, two for electric fans and one for the fuel pump. Realistically, we only needed the fuel pump relay; however, we went ahead and mounted the fan relays, giving us the option to use them down the road. All thats left is to run the power wire to the battery and accessory power for the computer and fuel pump. ALU M ITECH REPRODUCT I 0 517.404.6262 - alumitechreproducti - LOKAR PERFORMANCE P MFR PART PN COST 877.469.7440 . lokar.com Alumitech Reproductions Radiator Nova bigblock A-68/71 -A BlBNonSideBrackets $495 SANDERSON HEADERS Lokar Performance Throttle cable TC-1 000L$1 $49.95 800.669.2430 - sandersonheadersco Sanderson Headers Headers LS1 50 $295 Turn Key Engine Supply Conversion kit Nova 68-74 retro $2,499 TU RN KEY ENGIN E SU PPL *Pbes vary; call for specic applications 760.941.2741 - turnkeyenginesupply.-- 44 - NOVEMBER 2009
