Mercedes-Benz Model 124 and 201 steering wheel, combination swit…

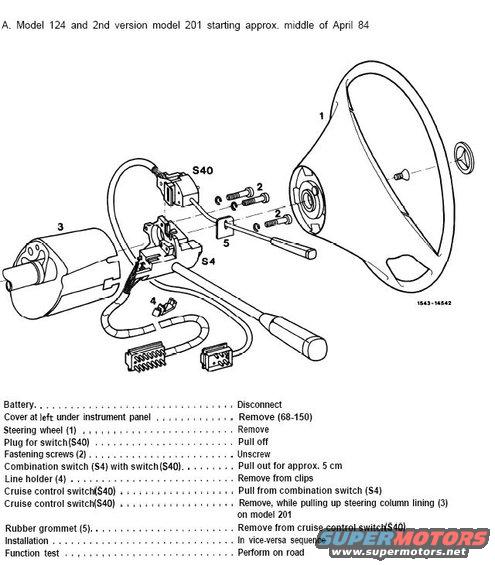

Mercedes-Benz Model 124 and 201 steering wheel, combination switch S4 and cruise switch S40 exploded view
Mercedes-Benz Model 124 and 201 steering wheel, combination switch S4 and cruise switch S40 exploded viewOriginal file
Mercedes-Benz Model 124 and 201 steering wheel, combination switch S4 and cruise switch S40 exploded view

Reference · 1986-1995 E-ClassAll 1 exploded parts diagrams
